This industry leading coupler features an all metal standard coupler, and #634 standard centering spring. The NO.5® Magne-Matic® Metal Coupler may be mounted with the #213, #232, #234, #242 Gearboxes (not included) or with other manufacturers cast-on coupler pockets.
The 148 Whisker® Coupler is equivalent to the NO.5® Metal Coupler.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.
HO-Scale
Package Includes:
(10) Pair NO.5® Metal Couplers - Medium Centerset Shank
(10) Pair #634 Centering Spring NO.5® Style
Extra #622 Knuckle Springs
NO.5® Metal Coupler Features:
Material
- Metal
Shank Length
- Medium (9/32") (center hole to back of coupler head)
Coupler Offset
- Centerset
Knuckle Spring
- #622
Centering System
- Standard Shank
Centering Spring
- #634 Centering Spring NO.5® Style
Head
- Standard Head
Works In Place of
- #58, #28, #118, #119, #148, #158, most medium centerset "clone" couplers
Works With
- #213, #232, #234, #242, most manufacturer cast-on draft gearboxes
#232 Plastic Draft Gearboxes & Lids (Not Included)Features:
Material
- Insulated Plastic
Dimensions
- 29/64"L x 19/64"W x 7/64"H
Works With
- NO.5®, #58, 20-Series and all Whisker® Couplers

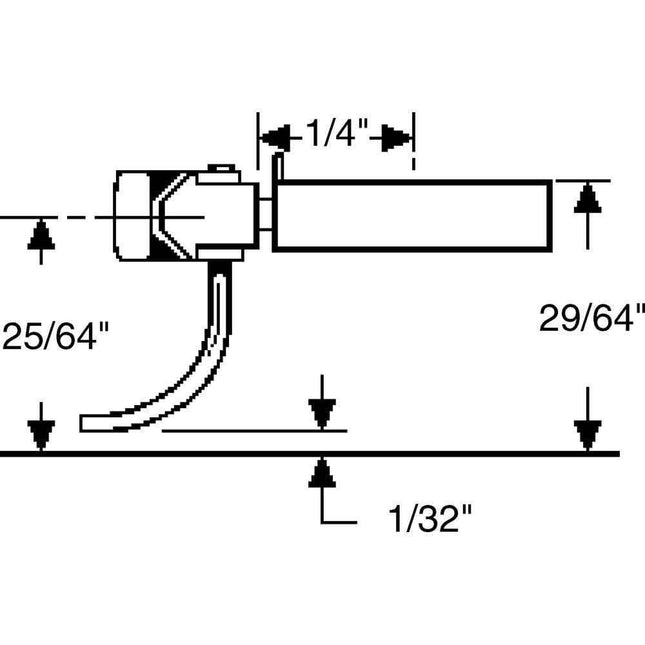

Mounting Specifications:
Mounting Height
- 29/64"
Centerline
- 25/64"
Trip Pin Height
- 1/32"
Center Hole
- 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes
- 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
Recommended Tools:
#206 Insulated Muti-Purpose Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#237 Coupler Trip Pin Pliers
#240 Double Headed Pin Vise
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap (2-56) and Drills (#50 and #43)
#780 Tap (0-80) and Drills (#55 and #52)
