The NixTrainz Decoder Buddy V5B (2.2K Ohm, 8 Outputs) offers versatile mounting options, replacing QSI or Dual Mode decoder boards with ease. This mother board includes a dedicated pad for the white control wire of the Power Pack, positioned for effortless soldering. Ideal for LED lighting, it ensures simplified connections for model train enthusiasts. Note: Requires 21 Pin Decoder and soldering. Dimensions: 0.67" x 2.20" x 0.35".

Read more less

The Decoder Buddy Mini was developed to fit into smaller steam and diesel applications.  there has also been interest in HOn3 and S-Gauge applications. This mother board does not include the 21 Pin Decoder. This mother board requires soldering. These printed circuit board is  NOT INTENDED FOR USE IN A DC SYSTEM. The mother board includes:  One 21 Pin Decoder receptacle Two pairs of track input pads One pair of motor input pads One set of stay alive pads (U+ , GND and if necessary a third control wire ) One pair of speaker pads Resistors for use with LED lighting. (Also available with 0 ohm, 750 ohm and custom specified resistors for function outputs. This accommodates some previously installed and "12 volt LEDs".)  It is IMPORTANT to realize that resistors must be used when LEDs are connected to the four lighting outputs of the Mini!!!  The resistors may be soldered in line when purchased or the included resistors may be soldered inline upon installation.  Remember there are different incandescent lamp voltage requirements and current draw that have to be taken into consideration also. (Until the next batch is produced the Mini will be labeled Tiny and the picture on the package will indicate the correct headlight outputs for direction of locomotive.)

Read more less

The Decoder Buddy Mini was developed to fit into smaller steam and diesel applications.  there has also been interest in HOn3 and S-Gauge applications. This mother board does not include the 21 Pin Decoder. This mother board requires soldering. These printed circuit board is  NOT INTENDED FOR USE IN A DC SYSTEM. The mother board includes:  One 21 Pin Decoder receptacle Two pairs of track input pads One pair of motor input pads One set of stay alive pads (U+ , GND and if necessary a third control wire ) One pair of speaker pads Resistors for use with LED lighting. (Also available with 0 ohm, 750 ohm and custom specified resistors for function outputs. This accommodates some previously installed and "12 volt LEDs".)  It is IMPORTANT to realize that resistors must be used when LEDs are connected to the four lighting outputs of the Mini!!!  The resistors may be soldered in line when purchased or the included resistors may be soldered inline upon installation.  Remember there are different incandescent lamp voltage requirements and current draw that have to be taken into consideration also. (Until the next batch is produced the Mini will be labeled Tiny and the picture on the package will indicate the correct headlight outputs for direction of locomotive.)

Read more less

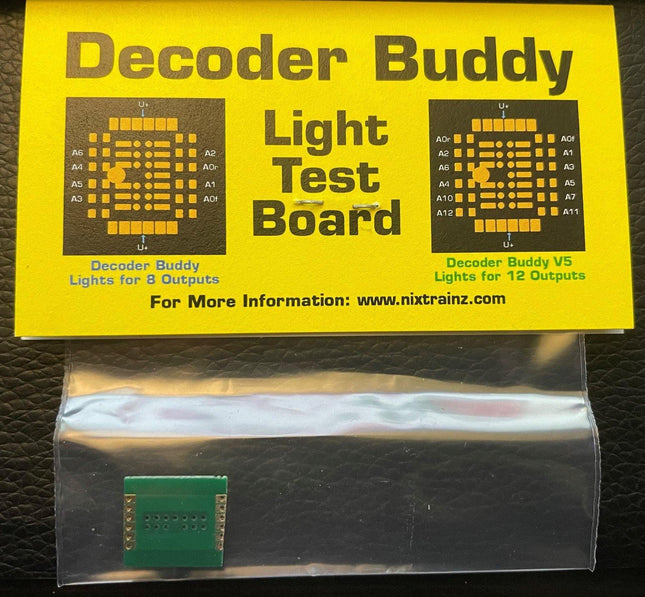

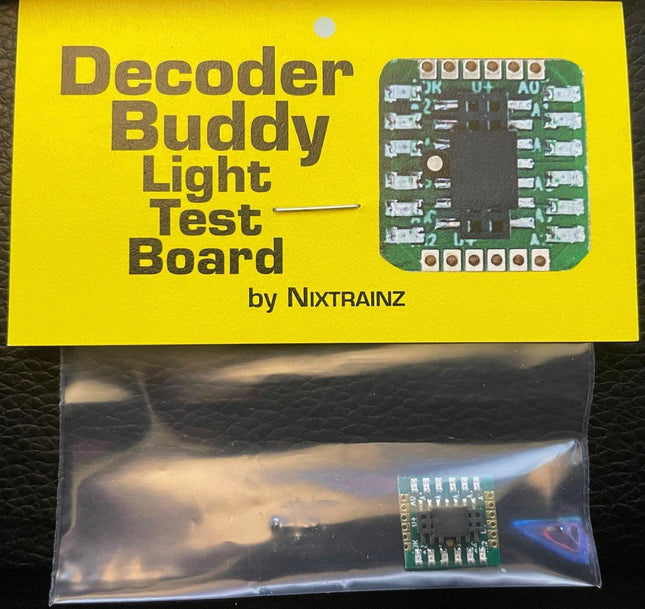

This Light Test Board module replaces the existing connector board and plugs directly into the NixTrainz Decoder Buddy Adapter Board to make programming, testing, and diagnostics work quick and easy.  The test module has LEDs on-board so you can program, test and troubleshoot your installation with ease.   Compatible with: Decoder Buddy Original (1k Ohm, 8 Outputs) Decoder Buddy Version 5 (12 Outputs) Decoder Buddy Mini (1k Ohm Resistors Onboard) Decoder Buddy Mini (Separate Resistors Included)

Read more less

The NixTrainz 204 – Power Bridge III is an advanced 2-wire stay-alive power solution, designed to enhance locomotive performance on Digital Command Control (DCC) layouts. By efficiently managing power flow from stay-alive capacitors, this device ensures smooth operation over dirty track, switches, and dead spots, preventing stalls and flickering lights. Key Features: • Optimized for 2-Wire Stay-Alive Circuits – Seamlessly integrates with decoders using a 2-wire stay-alive system. • Prevents Power Backfeed – Protects your DCC system by preventing stay-alive capacitors from interfering with track power. • Improves Locomotive Performance – Reduces interruptions, ensuring smooth and reliable operation over problematic track areas. • Compact & Easy to Install – Simple wiring setup for quick integration into locomotives. • Durable & Reliable Build – High-quality components provide long-term efficiency and stable performance.

Read more less

This product is versatile in terms of direction of the placement of the board and mounting in various configurations.  It can easily replace a QSI board, a Dual Mode decoder board or be mounted directly on the electric motor or frame with Kapton tape.  (It is recommended that a piece of Kapton tape be placed on the bottom of the mother board to assure electrical isolation from the electric motor or frame.) This mother board does not include a 21 Pin Decoder. This mother board and connector board require soldering. These printed circuit boards are NOT INTENDED FOR USE IN A DC SYSTEM. The on board resistors are sized for LEDs. (2.2K)  Package Includes: 1x Mother Board 1x Connector Board Dimensions: 0.67" x 2.20" x 0.35" (17 mm x 56 mm x 0.9 mm)The mother board includes;  One 21 Pin Decoder receptacle Two pairs of track input pads One pair of motor input pads One pair of stay alive pads (U+ and GND) Two pairs of speaker pads wired in parallel Resistors for use with LED lighting. (on board 2.2K)  The connector board contains pads for eight pairs of lighting function connections. U+ or the blue wire has eight connected pads for the common power source. The negative (-) discrete function pads are all labeled to indicate their connection to the functions available in the decoder. The lighting connector was designed so that the shell of the diesel locomotive can be easily separated from the frame without un-soldering wires. This does require that the headlight and rear lights be mounted in the shell of the locomotive and that the diesel has a removable dynamic brake shell. Incandescent lamps or bulbs are not well suited for the Decoder Buddys or associated decoders.  It can be done but it will require more electronics to achieve a result.  Our recommendation is to go with LEDs.

Read more less

The NixTrainz 202 – Power Bridge II is a 3-wire stay-alive power solution, designed to optimize locomotive performance on Digital Command Control (DCC) layouts. This advanced power bridge efficiently manages stay-alive capacitors, preventing power backfeed and ensuring smooth, uninterrupted operation over dirty track, switches, and gaps. Key Features: • Compatible with 3-Wire Stay-Alive Circuits – Designed for decoders that require a 3-wire stay-alive connection. • Prevents Power Backfeed Issues – Stops capacitors from interfering with track power, protecting your DCC system. • Enhances Performance Over Dirty Track & Gaps – Reduces stalling and light flickering for seamless locomotive operation. • Compact & Easy to Install – Simple wiring for quick and effective integration into locomotives. • Durable & Reliable Build – High-quality components ensure stable performance and long-term efficiency.

Read more less

The NixTrainz Power Bridge I (3-Wire Stay-Alive) is a must-have for model railroaders looking to enhance their locomotives’ performance on Digital Command Control (DCC) layouts. This innovative power management device ensures uninterrupted operation by efficiently handling stay-alive capacitors, preventing short circuits, and optimizing power delivery. Dimensions: L: 21mm W: 10mm H: 13.5mm Key Features: • Designed for 3-Wire Stay-Alive Circuits – Compatible with decoders requiring a 3-wire connection, ensuring smooth power retention. • Prevents Power Feedback Issues – Keeps stay-alive capacitors from backfeeding into the track power, improving system stability. • Enhances Performance on Dirty Track & Switches – Reduces stalling and flickering lights for seamless locomotive operation. • Easy Integration – Compact design with simple wiring for quick installation in locomotives or power districts. • Reliable & Durable Build – High-quality components provide long-term stability and efficiency.

Read more less

The Decoder Buddy Mini was developed to fit into smaller steam and diesel applications.  there has also been interest in HOn3 and S-Gauge applications. This mother board does not include the 21 Pin Decoder. This mother board requires soldering. These printed circuit board is  NOT INTENDED FOR USE IN A DC SYSTEM. Included with board are four axial resistors to be mounted remotely inline and are sized for LEDs. (2.2K) The mother board includes:  One 21 Pin Decoder receptacle Two pairs of track input pads One pair of motor input pads One set of stay alive pads (U+ , GND and if necessary a third control wire ) One pair of speaker pads Resistors for use with LED lighting. (separate axial 2.2K)  (Also available with 0 ohm, 750 ohm and custom specified resistors for function outputs. This accommodates some previously installed and "12 volt LEDs".)  It is IMPORTANT to realize that resistors must be used when LEDs are connected to the four lighting outputs of the Mini!!!  The resistors may be soldered in line when purchased or the included resistors may be soldered inline upon installation.  Remember there are different incandescent lamp voltage requirements and current draw that have to be taken into consideration also. (Until the next batch is produced the Mini will be labeled Tiny and the picture on the package will indicate the correct headlight outputs for direction of locomotive.)

Read more less

This product is versatile in terms of direction of the placement of the board and mounting in various configurations.  It can easily replace a QSI board, a Dual Mode decoder board or be mounted directly on the electric motor or frame with Kapton tape.  (It is recommended that a piece of Kapton tape be placed on the bottom of the mother board to assure electrical isolation from the electric motor or frame.) This mother board does not include a 21 Pin Decoder. This mother board and connector board require soldering. These printed circuit boards are NOT INTENDED FOR USE IN A DC SYSTEM. The on board resistors are sized for LEDs. (1K)  V5 (old) vs V5B (current) The V5 has the capability of easily adding a two wire stay alive.  The U+ and the GND pads are positioned close together and work well.  The three wire stay alive or Power Pack has a third wire that could be connected to pin-1 on the base of the 21-pin connector.  Pin -1 is associated with Aux 10 on a Loksound 5 decoder and used to turn the Power Pack off and on.  It is used frequently but not as easy to solder to as a pad.  I have a video on my Facebook page of the procedure.   The V5B has a dedicated pad for the white control wire of the Power Pack and is labeled "W".  Now there are six pads in the row of soldering pads on the bottom of the board just under the small light connector board in the picture on the right.  They are, right to left; W, U+, GND, A12, A11 and U+.  The other difference is that the "W" pad is connected to pin-2 of the 21-pin connector and the Aux 7 function controls the Power Pack on this board.  It is the default function assigned to the LokSound 5 decoders.  Package Includes: 1x Mother Board 1x Connector Board Dimensions: 0.67" x 2.20" x 0.35" (17 mm x 56 mm x 0.9 mm)The mother board includes;  One 21 Pin Decoder receptacle, Two pairs of track input pads, One pair of motor input pads, One pair of stay alive pads (U+ and GND), Pads for two Aux functions (Version 5 Feature) Two pairs of speaker pads wired in parallel, Resistors for use with LED lighting. (on board 1K)  The connector board contains pads for twelve pairs of lighting function connections. U+ or the blue wire has twelve connected pads for the common power source. The negative (-) discrete function pads are all labeled to indicate their connection to the functions available in the decoder. The lighting connector was designed so that the shell of the diesel locomotive can be easily separated from the frame without un-soldering wires. This does require that the headlight and rear lights be mounted in the shell of the locomotive and that the diesel has a removable dynamic brake shell. Incandescent lamps or bulbs are not well suited for the Decoder Buddys or associated decoders.  It can be done but it will require more electronics to achieve a result.  Our recommendation is to go with LEDs.

Read more less

This product is versatile in terms of direction of the placement of the board and mounting in various configurations.  It can easily replace a QSI board, a Dual Mode decoder board or be mounted directly on the electric motor or frame with Kapton tape.  (It is recommended that a piece of Kapton tape be placed on the bottom of the mother board to assure electrical isolation from the electric motor or frame.) This mother board does not include a 21 Pin Decoder. This mother board and connector board require soldering. These printed circuit boards are NOT INTENDED FOR USE IN A DC SYSTEM. The on board resistors are sized for some 12 volt LEDs.  Package Includes: 1x Mother Board 1x Connector Board Dimensions: 0.67" x 2.20" x 0.35" (17 mm x 56 mm x 0.9 mm)The mother board includes;  One 21 Pin Decoder receptacle Two pairs of track input pads One pair of motor input pads One pair of stay alive pads (U+ and GND) Two pairs of speaker pads wired in parallel Resistors for use with LED lighting.  (Also available with 0 ohm, 750 ohm and custom specified resistors for function outputs.  this accommodates incandescent lamps or bulbs.) The connector board contains pads for eight pairs of lighting function connections. U+ or the blue wire has eight connected pads for the common power source. The negative (-) discrete function pads are all labeled to indicate their connection to the functions available in the decoder. The lighting connector was designed so that the shell of the diesel locomotive can be easily separated from the frame without un-soldering wires. This does require that the headlight and rear lights be mounted in the shell of the locomotive and that the diesel has a removable dynamic brake shell. Incandescent lamps or bulbs are not well suited for the Decoder Buddys or associated decoders.  It can be done but it will require more electronics to achieve a result.  Our recommendation is to go with LEDs.
