Kadee 141 | 140-Series Whisker® Metal Couplers with Gearboxes - Long (25/64") Underset Shank | HO Scale

Description

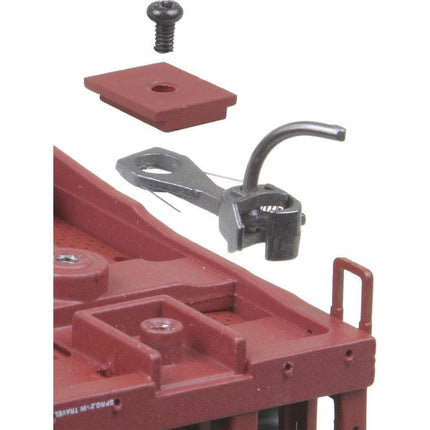

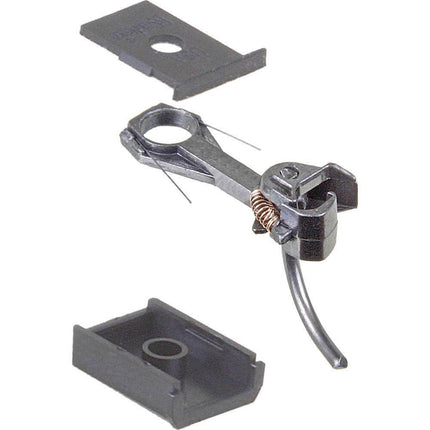

This industry leading coupler features an all metal coupler head, shank, and Whisker® centering spring and comes complete with insulated draft gearbox and lid. The #141 Magne-Matic® Whisker® Metal Coupler may be mounted with the included #242 Snap-Together Gearbox or with other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #21 coupler.

  • HO-Scale

Package Includes:

  • (2) Pair #141 Whisker® Metal Couplers - Long Underset Shank
  • (2) Pair #242 Snap-Together Gearboxes
  • (2) #622 Knuckle Springs
#141 Whisker® Metal Coupler Features:
Material  -   Metal

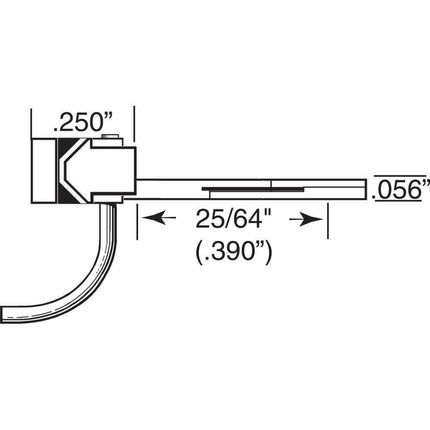

Shank Length  -   Long (25/64") (center hole to back of coupler head)
Coupler Offset  -   Underset
Knuckle Spring  -   #622
Centering System  -   Whisker®
Head  -   Standard Head

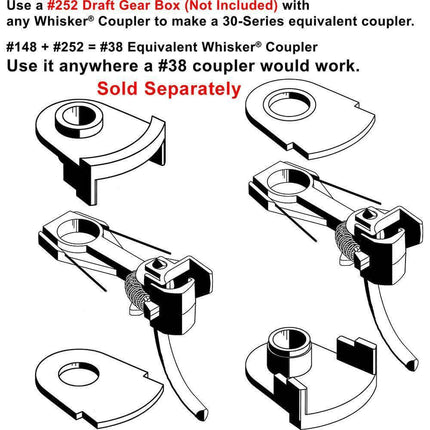

Works In Place of  -   #21, #31 (#141 in a #252 box), long underset "clone" couplers
Works With  -   #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes


#242 Snap-Together Gearbox Features:
Material  -   Insulated Plastic
Lid Type  -   Snap-Together
Dimensions  -   7/16"L x 5/16"W x 1/8"H
Works With  -   NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers

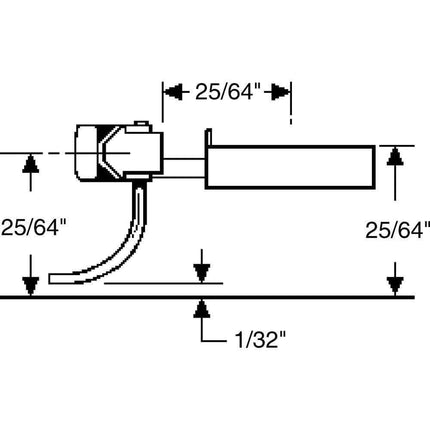

Mounting Specifications:
Mounting Height  -   25/64"
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)


Recommended Tools:

  • #206 Insulated Muti-Purpose Coupler Height Gauge
  • #231 Greas-em Dry Graphite Lubricant
  • #237 Coupler Trip Pin Pliers
  • #240 Double Headed Pin Vise
  • #241 Dual Tool Manual Uncoupling Tool and Spring Pick
  • #246 Tap (2-56) and Drills (#50 and #43)

Delayed Magnetic Uncoupling

Product form

This industry leading coupler features an all metal coupler head, shank, and Whisker® centering spring and comes complete with insulated... Read more

SKU: KDE-141

2 in stock

$4.79

    Earn 5 loyalty points with each purchase of this product.

    • 30 Days Free Returns
    • Top-notch Packaging
    • 100% Secure Payments
    • Shipped today? Order within: Nov 23, 2024 08:00:00 -0500

    Description

    This industry leading coupler features an all metal coupler head, shank, and Whisker® centering spring and comes complete with insulated draft gearbox and lid. The #141 Magne-Matic® Whisker® Metal Coupler may be mounted with the included #242 Snap-Together Gearbox or with other manufacturers cast-on coupler pockets.

    It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #21 coupler.

    • HO-Scale

    Package Includes:

    • (2) Pair #141 Whisker® Metal Couplers - Long Underset Shank
    • (2) Pair #242 Snap-Together Gearboxes
    • (2) #622 Knuckle Springs
    #141 Whisker® Metal Coupler Features:
    Material  -   Metal
    Shank Length  -   Long (25/64") (center hole to back of coupler head)
    Coupler Offset  -   Underset
    Knuckle Spring  -   #622
    Centering System  -   Whisker®
    Head  -   Standard Head
    Works In Place of  -   #21, #31 (#141 in a #252 box), long underset "clone" couplers
    Works With  -   #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes


    #242 Snap-Together Gearbox Features:
    Material  -   Insulated Plastic
    Lid Type  -   Snap-Together
    Dimensions  -   7/16"L x 5/16"W x 1/8"H
    Works With  -   NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers


    Mounting Specifications:
    Mounting Height  -   25/64"
    Centerline  -   25/64"
    Trip Pin Height  -   1/32"
    Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)


    Recommended Tools:

    • #206 Insulated Muti-Purpose Coupler Height Gauge
    • #231 Greas-em Dry Graphite Lubricant
    • #237 Coupler Trip Pin Pliers
    • #240 Double Headed Pin Vise
    • #241 Dual Tool Manual Uncoupling Tool and Spring Pick
    • #246 Tap (2-56) and Drills (#50 and #43)

    Delayed Magnetic Uncoupling
