While LokPilot 5 decoders can undoubtedly meet all imaginable requirements of even the most demanding experts, many model railway eras are looking for a robust, high-quality DCC decoder for your standard requirements, which should also be affordable. The LokPilot 5 Basic was developed with the aim of offering a modern decoder with a reasonable range of functions at a reasonable price. The LokPilot 5 Basic comes in two versions: In addition to a version with an 8-pin NEM interface, a version with 21MTC interface is also available. This makes the LokPilot 5 Basic particularly suitable for use in track H0 vehicles. Modes The LokPilot 5 Basic is a "pure-bred" DCC decoder. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 20 functions can be triggered. Thanks to RailComPlus®, the decoders log in fully automatically to a suitable digital center. It masters all DCC programming modes and thanks to RailCom® the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255. The LokPilot 5 Basic Decoder detects the Märklin® brake distances as well as the Lenz® ABC system. Braking with DCC brake blocks or dc voltage is also possible.The LokPilot 5 Basic Decoder can be used on analog DC webs. The maximum speed can be set separately.The decoder switches "on-the-fly" fully automatically between operating modes. Most of the time, nothing needs to be adjusted. Functions The LokPilot 5 Basic has 4 reinforced function outputs in each version. In the 21MTC interface, there are 8 logic-level outputs at the interface, two of which are also suitable for controlling servos. All important lighting functions are available. The brightness of each output can be set separately. Motor The motor control of the LokPilot 5 Basic delivers up to 0.9A continuous current. A variable PWM clock frequency from 10kHz to 50kHz ensures super-quiet operation, especially for bell anchor motors – The typical "hum" is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function allows the decoder to be automatically measured against the motor. Operational reliability On request, a PowerPack can be connected to the LokPilot 5 Basic to bridge dirty rail cuts. Protection Of course, all function outputs as well as the motor output are protected against overload. We want you to enjoy your decoder for as long as possible. More Information Item # 59020 Brand ESU LLC Scale HO MSRP $29.90 WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

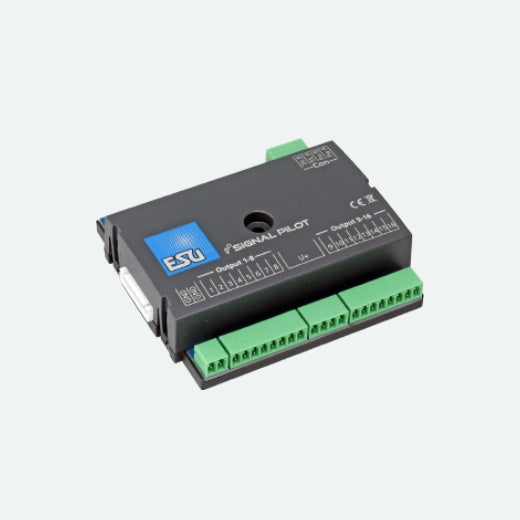

The ESU 51840 SignalPilot is a multi-protocol accessory decoder built mainly for switching color light signals. It has 16 outputs that drive micro bulbs or LEDs (with series resistors) directly, and because every output is a push/pull stage it works with signals wired common anode or common cathode, including Viessmann signals. Each output can run as a steady, flashing or pulsed light, with adjustable brightness and fade times plus prototypical effects such as soft dimming, fluorescent tube, gas lantern and flicker. Outputs are grouped into signal aspects with the ESU LokProgrammer software, and up to 16 accessory addresses switch those aspects from your throttle. Motorized semaphore signals and turnout drives can be run from it too. Specifications Brand ESU Item Number 51840 UPC 4044645518403 Type Accessory decoder for signals Outputs 16 push/pull, up to 250 mA each Protocols NMRA DCC accessory, Motorola (up to 127 addresses) Feedback RailCom CV readback Power Command station, or a separate DC or AC supply up to 18V AC Terminals Removable screw terminal strips Dimensions 86 x 86 x 25 mm (3.39 x 3.39 x 0.98 in) Included SignalPilot 51840 and instruction manual Scale Any scale Condition New Features 16 push/pull outputs, up to 250 mA each Drives LEDs (with series resistors) or micro bulbs directly Works with common-anode and common-cathode signals Steady, flashing or pulse operation on every output, with adjustable brightness and fade in and fade out Lighting effects including soft dimming, fluorescent tube, defective fluorescent tube, gas lantern and flicker Random switching, on and off delays, and a night mode that dims all outputs together Two-, three-, four- and multi-aspect signals, switched by up to 16 accessory addresses Signal aspects configured with the ESU LokProgrammer, with editable XML aspect files for unusual signals NMRA DCC accessory decoder compatible, plus Motorola with up to 127 addresses Programming on the main or on the programming track, with RailCom CV readback Short circuit and overload protection on all outputs Accepts a SwitchPilot Extension relay module for brake sections or frog polarity Firmware updatable through the LokProgrammer as ESU adds signal types Frequently Asked Questions What does the SignalPilot control?Mainly color light signals. It can also run motorized semaphore signals and turnout drives. How do I set up the signal aspects?Signal aspects are configured with the ESU LokProgrammer, sold separately. Choose the signal type in the software, write it to the decoder, and the software shows you how to wire the signal. Does it work with my DCC system?Yes. It is an NMRA DCC accessory decoder and also supports Motorola systems. It can be programmed on the main or on the programming track, and RailCom lets you read CVs back. Can I use LED signals?Yes, with series resistors. Signals wired common anode or common cathode both work, because every output is a push/pull stage. Does it need its own power supply?No. It can run from your command station, or from a separate DC or AC supply up to 18V AC. Is this the same as a SwitchPilot?No. The SignalPilot is built for signals and lighting with 16 low-current outputs. For twin-coil turnout motors, see the ESU 51830 SwitchPilot or the ESU 51831 SwitchPilot 3 Plus. Explore More Shop more ESU electronics, browse our DCC Accessories, or pick up wire and connectors in DCC Wiring. WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov

Read more less

This speaker module offers extremely good performance data with moderate dimensions. With the help of the built-in passive radiator in conjunction with a high-performance rectangular speaker, the module achieves high quality bass reproduction and achieves a considerable sound pressure even in the highs and mids. The module is particularly suitable for diesel or steam locomotives where contemporary bass reproduction is important. The speaker fits perfectly with our LokSound 5 micro, LokSound 5 or LokSound 5 L decoders. 4 Ohm 11/16 x 1-3/8 x 7/16" or 18 x 35 x 11mm More Information Item # 50348 Brand ESU Scale HO MSRP 17.99 WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

By default, this decoder does not come with a pre-programmed Sound Profile. Nevertheless, we provide complimentary Sound File programming for all ESU decoders. Please be aware that opting for Sound File Programming in your order might result in a shipment delay of 1 to 2 business days. Visit this link to preview ESU Sounds  Single Wires Version With the LokSound 5 Nano DCC, ESU has succeeded in developing an even smaller LokSound decoder: With only 19.6 mm x 8.5 mm x 3.2 mm (5.3 mm with single wires), it is the smallest LokSound decoder we have ever built. Thus, it should really be used in all vehicles of nominal sizes N and TT. The LokSound 5 Nano DCC decoder is a pure DCC decoder with opencable ends for free wiring or an E24-interface. The LokSound 5 Nano DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 Nano DCC decoder does not come with a speaker. Modes The LokSound 5 Nano is a "pure-bred" DCC decoder. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus®, the decoders register fully automatically at a suitable digital center.It masters all DCC programming modes and thanks to RailCom® the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255. The LokSound 5 Nano Decoder detects the Märklin® brake distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake blocks or with equal voltage is also possible. In addition, it also stops with a Selectrix® brake diode. An automatic ABC pen train allows automatic commuting between two stations. The LokSound 5 Nano can be used on analog DC webs. The decoder switches "on-the-fly" fully automatically between operating modes. Most of the time, nothing needs to be adjusted. Sound The LokSound 5 Nano Decoder can play up to 12 channels simultaneously. Each channel can be resolved with up to 16 bits / 31250 kHz and offers hi-fi quality on your system. There is virtually no difference to the original audible anymore. A Class-D audio output with up to 3W output power controls the speakers, which may have between 4 ohms and 32 ohms impedance. A 128 Mbit sound memory provides enough capacity.All individual noises can be adjusted individually in the volume. The super-flexible sound engine without a rigid schedule allows the exemplary simulation of all conceivable rail tracks. Functions Despite its small size, the LokSound 5 Nano has 6 reinforced function outputs as well as a logic level output as a solder pad. All important lighting functions are available. The brightness of each output can be set separately. The decoder controls the automatic start-up and disconnection when uncoupling for ROCO®, Krois® and Märklin telex ® couplings. Motor The motor control of the LokSound 5 Nano has a variable PWM clock frequency from 10kHz to 50kHz, which ensures super-quiet operation, especially for bell anchor motors – the typical "hum" is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function allows the decoder to be automatically measured against the motor. The LokSound 5 Nano DCC Direct Decoder delivers up to 0.75A motor power. Protection Of course, the outputs are protected against overload. We want you to enjoy your decoder for as long as possible. More Information Item # 58923 Brand ESU Scale N WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

With our new modular speaker baffle set you can easily assemble your tailormade speaker baffle suitable for two miniature speakers. Both – diameter and height – can be individually adapted to suit your needs. Considerable audio pressure and excellent sound fidelity can be generated by employing two speakers wired in parallel. The popular 11x15mm sugar cube speaker with 8 Ohm impedance is supplied with a sealed mounting plate. First select one of the three base frames subject to the type of speaker you want to assemble, namely a circular frame with 28mm diameter or a rectangular type with either 16x35mm or 20x40mm. After you have inserted the speakers into the base frame you may now determine the height of the speaker baffle. The minimum height is 6mm, which can be raised to 8mm, 9mm, 10mm, 11mm or 13mm by adding up to three intermediate frames. The set contains two 2mm high and one 3mm high intermediate frame. They can easily be fixed with some glue suitable for plastic materials. The higher the speaker baffle, the better the bass fidelity. It certainly pays off to utilize the entire space available.  8 Ohm 20mm; 23mm and 16x25mm baffles and 1 11 x 15mm Speaker WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

By default, this decoder does not come with a pre-programmed Sound Profile. Nevertheless, we provide complimentary Sound File programming for all ESU decoders. Please be aware that opting for Sound File Programming in your order might result in a shipment delay of 1 to 2 business days. Visit this link to preview ESU Sounds LokSound 5 Micro Sound and DCC Control Decoder - Next18 Plug Version Comes with 11mm x 15mm Sugar Cube Speaker The LokSound 5 micro is a “little wonder”: With only 21mmx10mm footprint, it is by far one of the smallest LokSound decoders we’ve ever built. Thus it should fit into all N gauge and TT vehicles, but is also suitable for small H0 vehicles. All LokSound decoders are equipped with a Next18 interface and are available with adapter plugs to suit all popular digital interface types. The decoder is supplied with an 11mm x 15mm sugar cube speaker as well as a sound enclosure set. The LokSound 5 micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker. Operating modes The LokSound 5 micro is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Control Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound  decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 micro decoder is also suitable for analogue DC and AC (!) layouts. Sound The LokSound 5 micro decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A double class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions Despite its small dimensions the LokSound 5 micro decoder has at least 6 amplified function outputs as well as one logic output. There are two more logic outputs on the Next18 interface, which alternately may be employed to control RC servos. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. Motor control Motor control of the LokSound 5 micro has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 micro decoder supplies sufficient motor current (up to 0.75 A) for the intended applications. LokSound 5 micro DCC The LokSound 5 Micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. More Information Item # 58818 Brand ESU Scale N & HO WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

If necessary, you can add the Decoder Tester Extension to your Profi Decoder Tester: Plugged into the side of the Decoder Tester it enables you to comfortably test all large scale decoders. If you also have to deal with large scale LokSound XL or LokSound L decoders in your workshop, the Profi Decoder Tester Extension is just the right thing for you: You can plug on LokSound XL decoders with multi-pin connectors as well as LokSound L decoders directly and easily test them. The extension module has multi-pin connectors for direct plug-on of the decoder types mentioned above. An LED monitor with 12 LEDs displays the status of all physical function outputs. You may also plug on a second speaker or sensor inputs onto the multi-pin connector for quick and easy testing. Up to four servos may also be plugged on for direct testing. Especially for the LokSound L, connecting pins for a smoke generator have also been added. The Profi Decoder Tester Extension represents the perfect test and programming bench in conjunction with the Profi Decoder Tester, where you can test and program almost all (ESU) decoders quickly and easily. WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

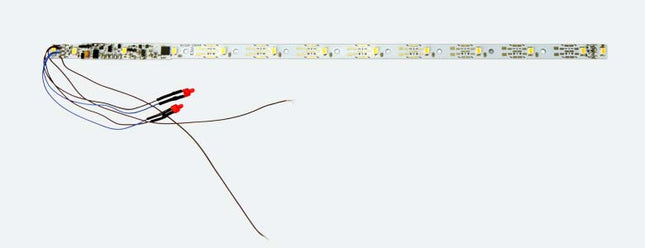

Add smooth, controllable warm white lighting to N, TT, or HO passenger cars with the ESU 50718 Digital Interior Lighting Kit. The 264 mm light bar combines 13 LEDs, an integrated multi protocol decoder, entry lighting, and a red end marker light in one flexible installation. The 50718 is the updated successor to the ESU 50708 lighting strip, with 13 LEDs and expanded lighting control. Complete your project with more DCC accessories, HO scale products, and N scale products. Specifications Brand ESU Item Number 50718 Product Type Digital passenger car interior lighting kit Compatible Scales N, TT, and HO Length 264 mm (10.39 in), cuttable Width 9 mm LEDs 13 warm white LEDs Control DCC, RailComPlus, Märklin Motorola, analog DC, and analog AC UPC / EAN 4044645507186 Condition New Features Thirteen warm white LEDs provide even, prototypical illumination for passenger car interiors. Integrated LokPilot 5 Basic based decoder supports DCC, RailComPlus, Märklin Motorola, analog DC, and analog AC operation. Seven independently controllable LED groups include separately switchable entry lights and a direction dependent red marker light. Cut points let you shorten the 264 mm board to fit different car lengths. Built in constant voltage control and a buffer capacitor help maintain steady brightness through brief power interruptions. Optional ESU 50710 PowerPack compatibility provides longer flicker protection when desired. Frequently Asked Questions Which scales can use this lighting kit?ESU designed it for N, TT, and HO passenger cars. Check the available space and pickup arrangement in your specific car before installation. Can the light bar be shortened?Yes. The board has designated cut points so it can be adapted to shorter passenger cars. Does it work on analog layouts?Yes. It supports both analog DC and analog AC operation in addition to DCC and Märklin Motorola digital control. Is a PowerPack included?No. A small buffer capacitor is built in, and the optional ESU 50710 PowerPack can be added for longer power interruption protection. Explore More Browse our DCC accessories for additional lighting, wiring, and control components.

Read more less

The 255mm long, 9mm slim LED lighting strips with 11 LEDs are designed for N, TT and H0 gauge cars. We are offering two versions: The version with Part number 50700 is equipped with warmwhite LEDs, while on part number 50702 we installed yellow LEDs. This will give you the choice to match the lighting strips with your existing cars. As usual for all ESU lighting strips, you can adjust the brightness according to your wishes with the help of a small variable resistor (potentiometer). Thanks to built-in voltage control the brightness remains almost constant even when conventional driving. To bridge prolonged power interruptions, you may add a PowerPack. Of course, the lighting strips can be arbitrarily cut to fit the cars of all manufacturers and comes with a red taillight. You may add a LokPilot Fx V4.0 function decoder at any time. Yellow 10 x 0.35" More Information Item # 50700 Brand ESU Scale HO, TT, N Pack Size 1 MSRP $27.99 WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

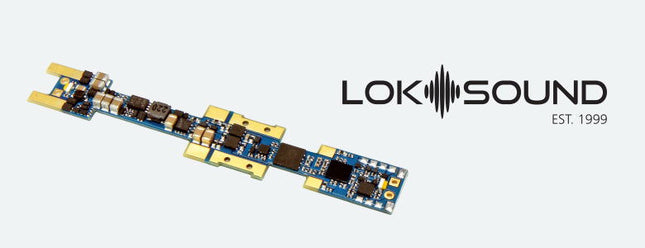

By default, this decoder does not come with a pre-programmed Sound Profile. Nevertheless, we provide complimentary Sound File programming for all ESU decoders. Please be aware that opting for Sound File Programming in your order might result in a shipment delay of 1 to 2 business days. Visit this link to preview ESU Sounds The LokSound 5 micro DCC Direct Kato Japan has been specially developed for installation in Kato-branded track N vehicles: in many European and Japanese locomotives of this manufacturer, the ser decoder can be installed directly below the engine instead of the analog board installed as standard. Finally, these models can also be easily retrofitted with a LokSound decoder. The LokSound 5 micro DCC Direct Kato Japan with its dimensions of 27.6mm x 14.1mm x 3mm is a pure DCC decoder and comes without a loudspeaker. Modes The LokSound 5 micro DCC Direct Kato Japan is a "pure-bred" DCC decoder. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus®, the decoders log in fully to a suitable digital center.It masters all DCC programming modes and thanks to RailCom® the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255. The LokSound 5 micro DCC Direct Kato Japan Decoder detects the Märklin® brake distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake blocks or dc voltage is also possible. In addition, it also stops with a Selectrix® brake diode. An AUTOMATIC ABC commuter train allows automatic commuting between two stations. The LokSound 5 micro DCC Direct Kato Japan can be used on analog DC webs.The decoder switches "on-the-fly" fully automatically between operating modes. Most of the time, nothing needs to be adjusted. Sound The LokSound 5 micro DCC Direct Kato Japan Decoder can play up to 12 channels simultaneously. Each channel can be resolved with up to 16 bits / 31250 kHz and offers hi-fi quality on its system. There is virtually no difference to the original audible anymore. A Class-D audio output with up to 3W output power controls the speakers, which can have between 4 ohms and 32 ohms impedance. A 128 Mbit sound memory provides enough capacity. All individual noises can be adjusted individually in the volume. The super-flexible sound engine without a rigid schedule allows the exemplary simulation of all conceivable rail tracks. Functions Although the LokSound 5 micro DCC Direct Kato Japan is normally installed in the motor car of a drive car set, three reinforced function outputs for lighting are available at their own discretion. All important lighting functions are available. The brightness of each output can be set separately. Motor The motor control of the LokSound 5 micro DCC Direct Kato Japan has a variable PWM clock frequency from 10kHz to 50kHz, which ensures a super-quiet drive, especially for bell anchor motors – the typical "hum" is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function allows the decoder to be automatically measured against the motor. The LokSound 5 micro DCC Direct Kato Japan Decoder delivers up to 0.9A motor power. Protection Of course, the outputs are protected against overload. We want you to enjoy your decoder for as long as possible. More Information Item # 58731 Brand ESU Scale N WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

The ESU 51830 SwitchPilot V2.0 is a compact stationary accessory decoder that brings digital control to your turnouts, signals, and other layout accessories. A single unit drives four twin-coil (solenoid) accessories plus two independent servo outputs, and it speaks both DCC and Märklin Motorola, so it drops into nearly any digital command system regardless of scale. Looking for more DCC gear? Browse our DCC Accessories, the full ESU lineup, and our DCC Wiring & Connectors. Features Controls four twin-coil (magnetic/solenoid) accessories — turnouts, semaphore and light signals, magnetic uncouplers, or lamps — via eight transistor outputs arranged in four pairs. Two additional servo outputs for slow, prototypical turnout movement or animated semaphore signals. Multi-protocol operation with both DCC and Märklin Motorola (MM) command stations. Up to 1A total output current; powered from the digital track signal or an external DC/AC supply for heavier loads. Flexible output modes (pulse, momentary, permanent, and flashing) set by CV on a programming track or on the main with POM. Short-circuit and overload protected outputs; expandable with the SwitchPilot Extension for frog (heart-piece) polarization. Scale: Multi Scale — works on N, HO, O, and larger digital layouts. More Information Brand ESU Item Number 51830 Type Accessory / Stationary Decoder Outputs 4 twin-coil pairs + 2 servo Protocols DCC, Märklin Motorola (MM) Max Output Current 1A Scale Multi Scale Condition New FAQ What can the SwitchPilot V2.0 control?It digitally operates up to four twin-coil turnout machines or other magnetic accessories (signals, uncouplers, lamps), plus two servo-driven devices such as slow-motion turnouts or semaphore signals. Will it work with my command system?Yes — it supports both DCC and Märklin Motorola, so it works with virtually any digital command station. It is intended for digital layouts, not purely analog (DC) operation. Do I need a separate power supply?The decoder can draw power from the track signal, but for reliable switching of multiple or heavier accessories an external DC or AC supply is recommended. Can I expand it later?Yes. The optional SwitchPilot Extension module adds relay outputs for frog polarization and other switching tasks.
