Description

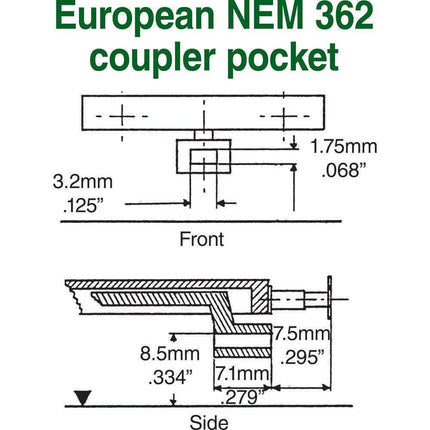

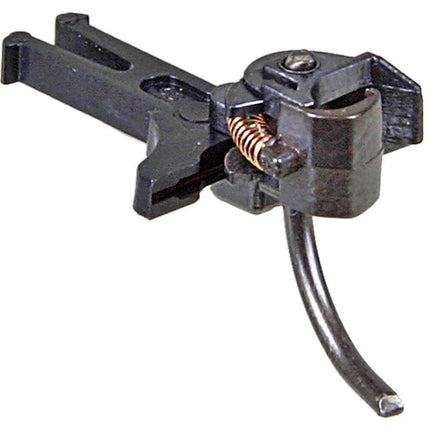

This industry leading coupler features an NEM 362 European Style Coupler. The #18 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Package Includes:
- (2) Pair #18 Couplers (Aassembled) - Medium Underset
- (2) #622 Knuckle Springs
#18 Coupler Features:
| Material |
- Metal Knuckle, Plastic Coupler Swallow-tail Shank |
| Length |

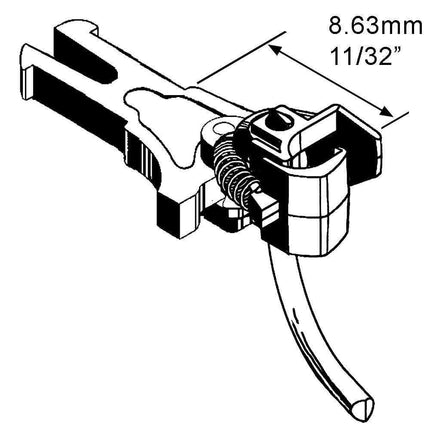

- Medium (8.63mm , .340 inch , 11/32") (pulling face to the dovetail sholder) |
| Coupler Offset |
- Underset |
| Knuckle Spring |
- #622 |
| Centering System |
- NEM European Style Coupler |
| Head |
- Standard Head |

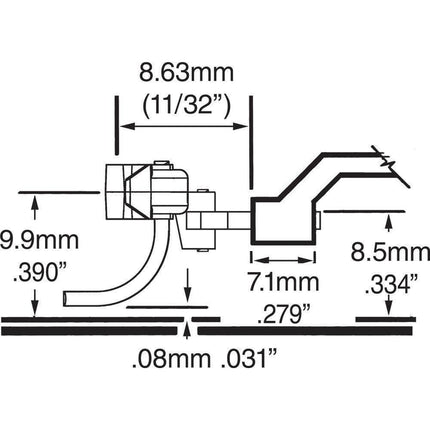

Mounting Specifications:
| Mounting Height |
- 8.5mm , .334" |
| Centerline |
- 9.9mm , .390" |
| Trip Pin Height |
- .08mm , .031" |
