DCC Wiring
-
Digitrax Digitrax AR1 | Automatic Reverse Controller-Single
The easiest most cost effective way to add automatic reversing to one section of your DCC layout. AR1 Features: Cost effective automatic reversing for one reversing section or subdistrict User selectable trip current lets you adjust the AR1 to work with any scale or equipment on your layout Auto-Reversing manages polarity mismatches on the reversing track section without manually throwing electrical toggle switches or adding another booster 8 amp peak, 6 amp continuous Auto-reversing control for a single reversing district. Simple to wire 4 wire hookup, no locomotive wiring required No external power required, runs off track power AR1 operates with or without LocoNet, so it is compatible with all DCC systems. Alternatives to AR1 for Automatic Reversing on your layout: 1. Use a double pole, double throw switch to manually allow for reversing. 2. Use one Digitrax booster set for automatic reversing and another set for normal operation. 3. Use a PM42 Quad Power Manager to handle 4 power sub-districts. You can set these up to be automatic reversing or power managers to prevent short circuits from shutting down your layout. More Information Item # AR1 Brand Digitrax MSRP $33.00 TCA Grading C-10 Mint - Brand New Availability In-Stock/Restockable Manuals Instruction Sheet, Specification Sheet
£18.32
-
Digitrax Digitrax DS74 | Quad Switch Stationary Decoder
Quad switch decoder for Solenoid or Slow-motion turnouts. Configurable for Capacitive Discharge with balky solenoids. Configurable for on/off control of 8 layout lights. Plug and play wire connectorization. Works with compatible LocoNet Systems. Stabilized and adjustable output voltages. Option setup switches for configuration. On-layout programmability via LocoNet. 8 onboard Routes, with EZ-Route setup. Routes directly editable using latest DT602 IPL. 8 input lines for Switch and Detection inputs. Field firmware update via IPL over LocoNet. DC 2mm jack for reliable power input. Optional DCC track inputs for limited feature capabilities. More Information Item # DS74 Brand Digitrax MSRP $79.00 TCA Grading C-10 Mint - Brand New Availability In-Stock/Restockable Manuals Instruction Sheet, Specification Sheet
£46.57
-
SoundTraxx SoundTraxx 810123 | NMRA 8-pin Connector (set of 4)
This set of four 8-pin connectors is designed to facilitate wiring in locomotives equipped with a DCC-ready socket.
£8.52
-

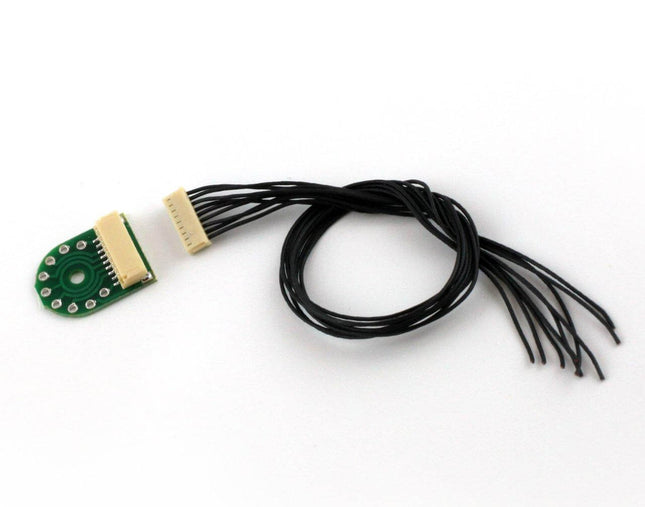

SoundTraxx SoundTraxx 810132 | Locomotive-to-Tender Wiring Kit (DBX-9000)
The SoundTraxx Locomotive-to-Tender Wiring Kit (DBX-9000) is a quick-disconnect wiring harness assembly for separating the locomotive from the tender.
£12.19
-
ESU LLC ESU 51993 | 18-Pin Next18 Socket-to-Wire Leads Harness LokSound | Multi Scale
3-7/16" 8.8cm Wire Leads, Includes Heat-Shrink Tubin Wire harness, 18-pin Next18 socket to open wires, 88mm, with heat shrink tube. WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov
£4.65
-
Ring Engineering Ring Engineering WH-6 RailPro Wiring Harness
Quantity: One per packageThe WH-6 wiring harness is used with LM-3, LM-3S, LM-2, and LM-2S modules. It is used to wire in light outputs 5 and 6 and more. Please see LM instructions for actual wiring. WH-6 has a JST 6 pin with crimp style pins. We have found the crimp style pins to be far more dependable than the insulation displacement connectors.
£4.88
-

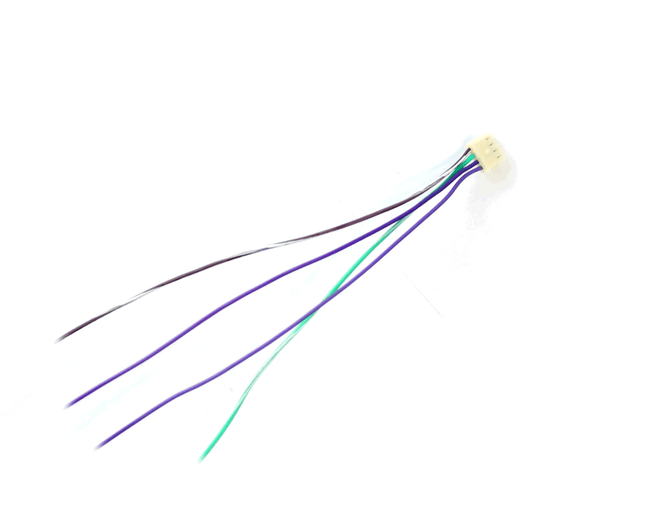

SoundTraxx SoundTraxx 810157 | Econami/Tsunami2 4-Pin Speaker Harness
Replacement 4-wire speaker and lighting harness for Tsunami2 and Econami Digital Sound Decoders.
£6.26
-
SoundTraxx SoundTraxx 810069 | Replacement Tsunami2 Power Harness, Stm. & Dsl.
Replacement 9-wire to JST power harness for all TSU-2200 or ECO-200 Digital Sound Decoders.
£9.13
-
SoundTraxx SoundTraxx 810012 | 2-Pin Microconnector Kit (1M, 1F)
These 2-pin connectors allow locomotive wiring to be quickly disconnected for easier painting and servicing. This kit includes a 2-pin connector set, 6″ of red wire, 6″ of black wire, and four pieces of heat-shrink tubing.
£6.69
-

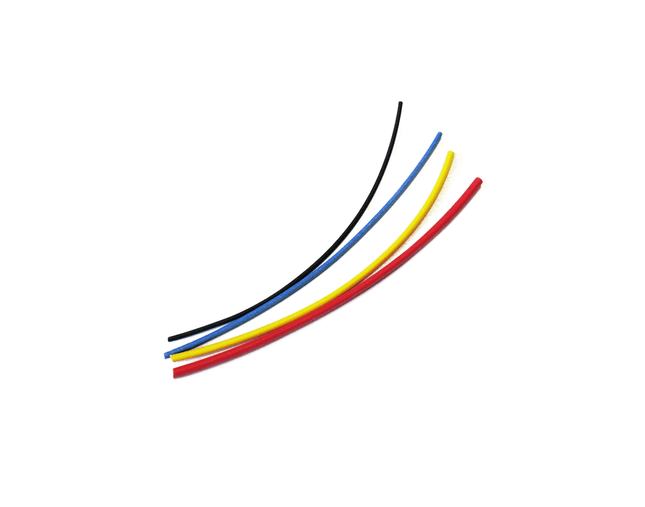

SoundTraxx SoundTraxx 810037 | Shrink Tube Assortment
This assortment includes 6" each of 1/16", 3/32", 1/8" and 1/4" diameter tubing for insulating solder connections.
£8.14
-

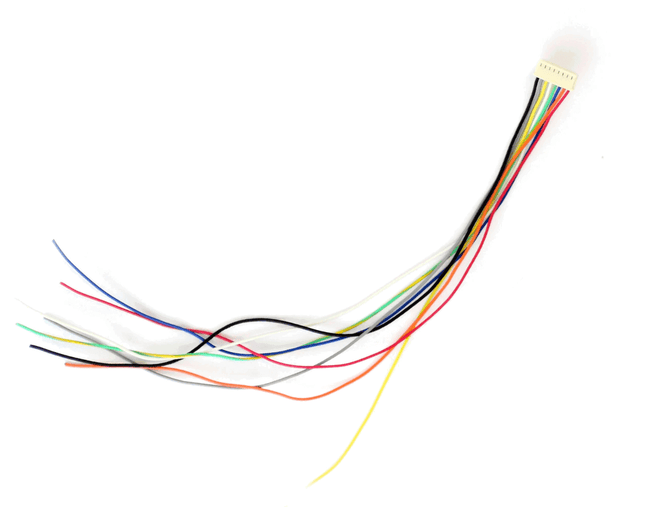

SoundTraxx SoundTraxx 810156 | ECO-100/TSU-1100 8-Pin Power Harness
Replacement 8-wire power harness for all TSU-1100 or ECO-100 Digital Sound Decoders.
£7.48
-
ESU LLC Digitrax DHWHPS | 9 pin to DCC medium plug short harness (1”)
The Digitrax DHWHPS is a 9 pin to DCC medium plug short harness (1”) that provides a secure and reliable connection for your DCC devices. With its compact size, it allows for easy installation and improved organization of wiring. Trust in the quality and expertise of Digitrax for all your DCC needs. More Information Item # DHWHPS Brand Digitrax MSRP $8.00 TCA Grading C-10 Mint - Brand New Availability In-Stock/Restockable Manuals Instruction Sheet, Decoder Manual V1, Decoder Manual V2, Specification Sheet
£4.57
