Kadee 119 | SE Shelf Whisker® Metal Couplers with Gearboxes - Medium (9/32") Centerset Shank | HO Scale

Description

The #119 coupler will work anywhere a NO.5®, #28, #38, #58, #118, #119, #148 & #158 Coupler will work.

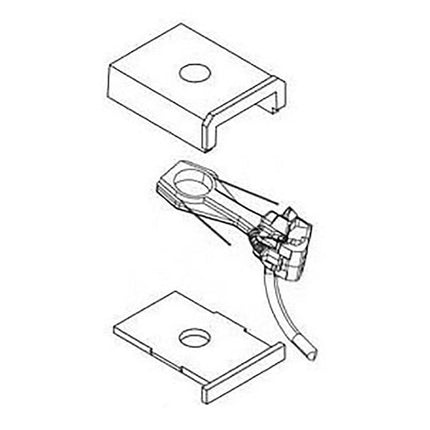

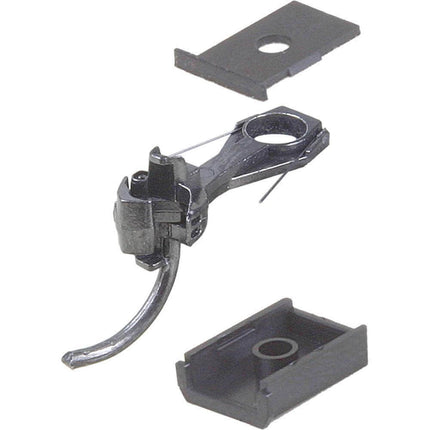

The #119 Kadee® Magne-Matic® Coupler features a Metal Coupler, insulated #242 Draft Gear Box and Lid with center screw holes for mounting. Shelfs actually work. The #119 Coupler may be mounted with supplied #242 draft gear box or with Manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gear box to avoid the possible electrical crossover or shorting that may cause damage. Use the provided insulated draft gear box .

  • HO-Scale

Package Includes:

  • (2) Pair SE Shelf Metal Whisker® Magne-Matic® Metal Coupler - Medium Centerset Shank
  • (2) Pair #242 Snap-Together Gearboxes
  • (2) #625 Knuckle Springs

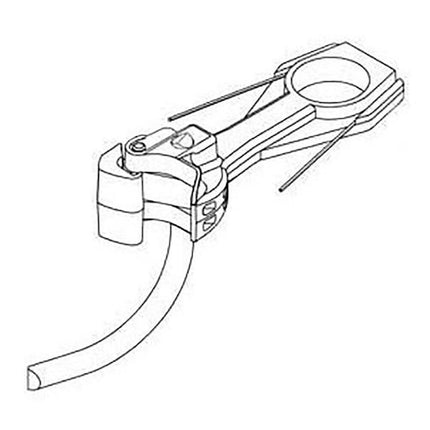

#119 Whisker® Metal Coupler Features:
Material  -   Metal

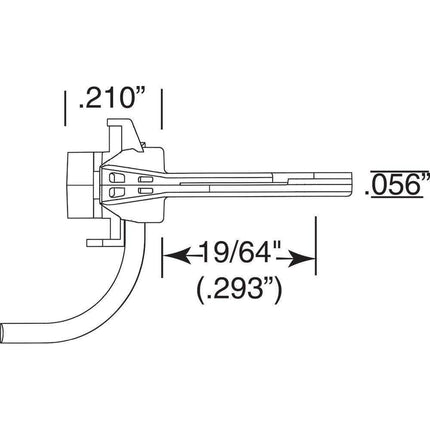

Shank Length  -   Medium (9/32") (center hole to back of coupler head)
Coupler Offset  -   Centerset
Knuckle Spring  -   #625
Centering System  -   Whisker®
Head  -  SE Metal ShelfHead
Works In Place of  -   NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, medium centerset "clone" couplers
Works With  -   #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes


#242 Snap-Together Gearbox Features:
Material  -   Insulated Plastic
Lid Type  -   Snap-Together
Dimensions  -   7/16"L x 5/16"W x 1/8"H
Works With  -   NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers

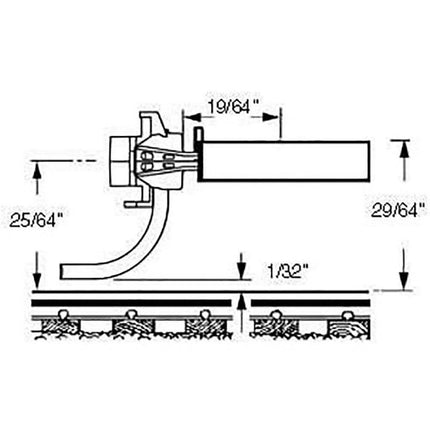

Mounting Specifications:
Mounting Height  -   29/64"
Centerline  -   25/64"
Trip Pin Height  -   1/32"

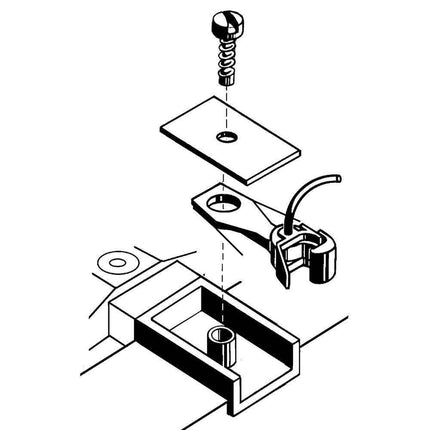

Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)


Recommended Tools:

  • #206 Insulated Muti-Purpose Coupler Height Gauge
  • #231 Greas-em Dry Graphite Lubricant
  • #237 Coupler Trip Pin Pliers
  • #240 Double Headed Pin Vise
  • #241 Dual Tool Manual Uncoupling Tool and Spring Pick


Delayed Magnetic Uncoupling

Product form

The #119 coupler will work anywhere a NO.5®, #28, #38, #58, #118, #119, #148 & #158 Coupler will work.The #119... Read more

SKU: KDE-119

Out of stock

£3.78

    Earn 4 loyalty points with each purchase of this product.

    • 30 Days Free Returns
    • Top-notch Packaging
    • 100% Secure Payments

    Description

    The #119 coupler will work anywhere a NO.5®, #28, #38, #58, #118, #119, #148 & #158 Coupler will work.

    The #119 Kadee® Magne-Matic® Coupler features a Metal Coupler, insulated #242 Draft Gear Box and Lid with center screw holes for mounting. Shelfs actually work. The #119 Coupler may be mounted with supplied #242 draft gear box or with Manufacturers cast-on coupler pockets.

    It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gear box to avoid the possible electrical crossover or shorting that may cause damage. Use the provided insulated draft gear box .

    • HO-Scale

    Package Includes:

    • (2) Pair SE Shelf Metal Whisker® Magne-Matic® Metal Coupler - Medium Centerset Shank
    • (2) Pair #242 Snap-Together Gearboxes
    • (2) #625 Knuckle Springs
    #119 Whisker® Metal Coupler Features:
    Material  -   Metal
    Shank Length  -   Medium (9/32") (center hole to back of coupler head)
    Coupler Offset  -   Centerset
    Knuckle Spring  -   #625
    Centering System  -   Whisker®
    Head  -  SE Metal ShelfHead
    Works In Place of  -   NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, medium centerset "clone" couplers
    Works With  -   #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes


    #242 Snap-Together Gearbox Features:
    Material  -   Insulated Plastic
    Lid Type  -   Snap-Together
    Dimensions  -   7/16"L x 5/16"W x 1/8"H
    Works With  -   NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers


    Mounting Specifications:
    Mounting Height  -   29/64"
    Centerline  -   25/64"
    Trip Pin Height  -   1/32"
    Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)


    Recommended Tools:

    • #206 Insulated Muti-Purpose Coupler Height Gauge
    • #231 Greas-em Dry Graphite Lubricant
    • #237 Coupler Trip Pin Pliers
    • #240 Double Headed Pin Vise
    • #241 Dual Tool Manual Uncoupling Tool and Spring Pick


    Delayed Magnetic Uncoupling
