Kadee 156 | Whisker® Scale Metal Couplers with Gearboxes - Long (25/64") Centerset Shank | HO Scale

Description

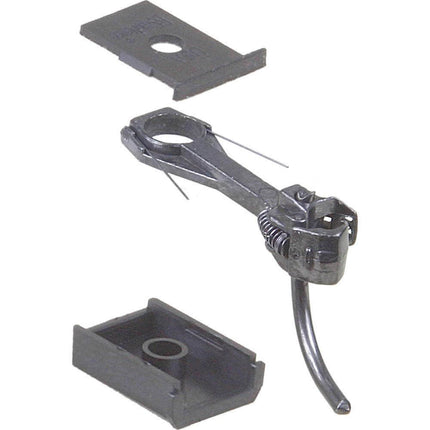

The #156 "Scale" All Metal Self-Centering WHISKER® Coupler features a "Scale" Metal Coupler (a smaller head coupler which is more to scale and is patterned after the type 'E" couplers) & Metal WHISKER® Centering Spring, insulated Draft Gear Box and Lid. The #156 Coupler may be mounted with the supplied #242 draft gear box, other Kadee® HO-Scale draft gear box shown below or with the Manufacturers cast-on coupler pockets. The coupler will couple and uncouple with other Kadee® HO and HOn3 couplers. The coupler has the same shank length as the #26, 36 or 46 coupler which will allow the modeler to remove the existing #26, 36 or 46 coupler and replace with the new smaller coupler. The #156 coupler is made of the same metal as the #46 for strength and rigidity.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox.

Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.

  • HO-Scale

Package Includes:

  • (2) Pair #156 Scale Whisker® Metal Couplers - Long Centerset Shank
  • (2) Pair #242 Snap-Together Gearboxes
  • (2) #625 Knuckle Springs


#156 Scale Whisker® Metal Coupler Features:
Material  -   Metal
Shank Length  -  Long (25/64") (center hole to back of coupler head)
Coupler Offset  -  Centerset
Knuckle Spring  -   #625
Centering System  -   Whisker®
Head  -   Scale Head
Works In Place of  -   #26, #36 (#146 in a #252 box), long centerset "clone" couplers
Works With  -   #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes


#242 Snap-Together Gearbox Features:
Material  -   Insulated Plastic
Lid Type  -   Snap-Together
Dimensions  -   7/16"L x 5/16"W x 1/8"H
Works With  -   NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers


Mounting Specifications:
Mounting Height  -   25/64"
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)


Recommended Tools:

  • #206 Insulated Muti-Purpose Coupler Height Gauge
  • #231 Greas-em Dry Graphite Lubricant
  • #237 Coupler Trip Pin Pliers
  • #240 Double Headed Pin Vise
  • #241 Dual Tool Manual Uncoupling Tool and Spring Pick
  • #246 Tap (2-56) and Drills (#50 and #43)

Delayed Magnetic Uncoupling

Product form

The #156 "Scale" All Metal Self-Centering WHISKER® Coupler features a "Scale" Metal Coupler (a smaller head coupler which is more... Read more

SKU: KDE-156

2 in stock

£4.99

    Earn 5 loyalty points with each purchase of this product.

    • 30 Days Free Returns
    • Top-notch Packaging
    • 100% Secure Payments

      Description

      The #156 "Scale" All Metal Self-Centering WHISKER® Coupler features a "Scale" Metal Coupler (a smaller head coupler which is more to scale and is patterned after the type 'E" couplers) & Metal WHISKER® Centering Spring, insulated Draft Gear Box and Lid. The #156 Coupler may be mounted with the supplied #242 draft gear box, other Kadee® HO-Scale draft gear box shown below or with the Manufacturers cast-on coupler pockets. The coupler will couple and uncouple with other Kadee® HO and HOn3 couplers. The coupler has the same shank length as the #26, 36 or 46 coupler which will allow the modeler to remove the existing #26, 36 or 46 coupler and replace with the new smaller coupler. The #156 coupler is made of the same metal as the #46 for strength and rigidity.

      It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox.

      Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.

      • HO-Scale

      Package Includes:

      • (2) Pair #156 Scale Whisker® Metal Couplers - Long Centerset Shank
      • (2) Pair #242 Snap-Together Gearboxes
      • (2) #625 Knuckle Springs


      #156 Scale Whisker® Metal Coupler Features:
      Material  -   Metal
      Shank Length  -  Long (25/64") (center hole to back of coupler head)
      Coupler Offset  -  Centerset
      Knuckle Spring  -   #625
      Centering System  -   Whisker®
      Head  -   Scale Head
      Works In Place of  -   #26, #36 (#146 in a #252 box), long centerset "clone" couplers
      Works With  -   #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes


      #242 Snap-Together Gearbox Features:
      Material  -   Insulated Plastic
      Lid Type  -   Snap-Together
      Dimensions  -   7/16"L x 5/16"W x 1/8"H
      Works With  -   NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers


      Mounting Specifications:
      Mounting Height  -   25/64"
      Centerline  -   25/64"
      Trip Pin Height  -   1/32"
      Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)


      Recommended Tools:

      • #206 Insulated Muti-Purpose Coupler Height Gauge
      • #231 Greas-em Dry Graphite Lubricant
      • #237 Coupler Trip Pin Pliers
      • #240 Double Headed Pin Vise
      • #241 Dual Tool Manual Uncoupling Tool and Spring Pick
      • #246 Tap (2-56) and Drills (#50 and #43)

      Delayed Magnetic Uncoupling
