Description

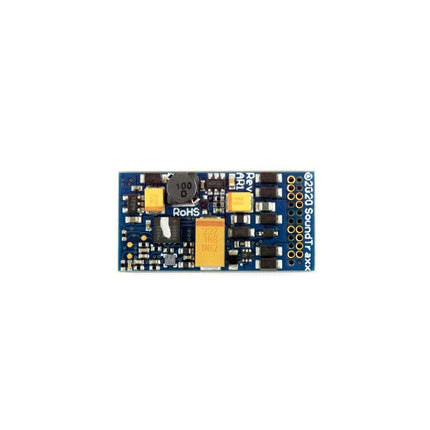

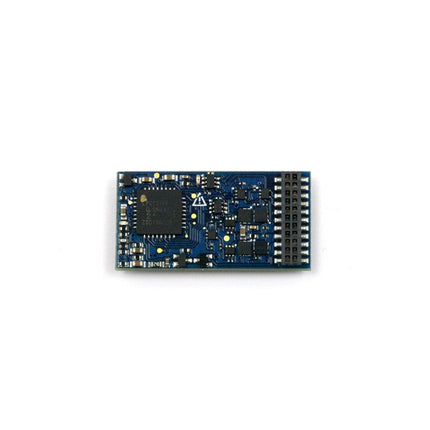

The TSU-21PNEM8 is a 1-amp Digital Sound Decoder with 8 function outputs. It is designed for easy plug-in operation when mated to a 21-pin NEM connector. You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. They also offer a large selection of selectable sound effects including: exhaust chuffs(10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos and more!
The TSU-21PNEM8 can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
Product Specifications:
| Sound Profile: |
EMD-2 |
| Dimensions: |
30.5 x 15.5 x 6.5mm |
| Max. Motor Stall Current: |
1A |
| Max. Function Current: |
100mA (each output) |
| Function Outputs: |
8 |
| Audio Amplifier: |
2 Watt, 8-Ohm Load |
| DCC Track Voltage: |
7.5V – 22V |
| Sound Channels: |
16 |
