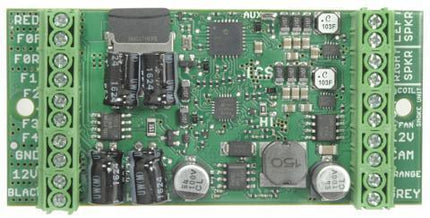

Description
CD-Quality Sound: TCS’ world-renowned CD-quality sound. 16 Bits of resolution at 44.1kHz sample rate.
Keep-Alive®: Included on-board for smooth, stutter-free operation.
Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
Quiet Drive: Super-quiet motor control for “buzz” free motor performance.
Variable Momentum: Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness: Configure multiple different brightness levels for your LED’s or incandescent bulbs.
Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible: Fully compatible with Airwire™ operation.
Audio Assist®: TCS exclusive auditory feedback programming system. Program your decoder without the need to memorize CV’s!
User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
Throttle Modes: Choose from multiple throttle modes to meet your operating needs.
Proto Notch™: A WOWSound original feature which uses TCS’ exclusive auto-adjusting BEMF technology to automatically choose the active notch sound. Prototype Mode also offers dynamic sound volumes which accurately model the real-life equivalent. Also includes pre-programmed acceleration and deceleration values.
Specs
Interface Type:Hard-Wire
Dimensions (L x W x H):3.004″ x 1.413″ x 0.551″ or 76.3mm x 35.9mm x 14mm
