Description

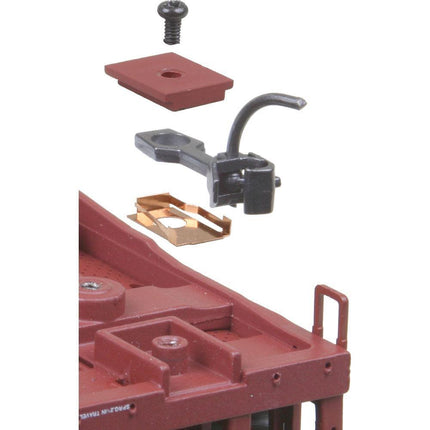

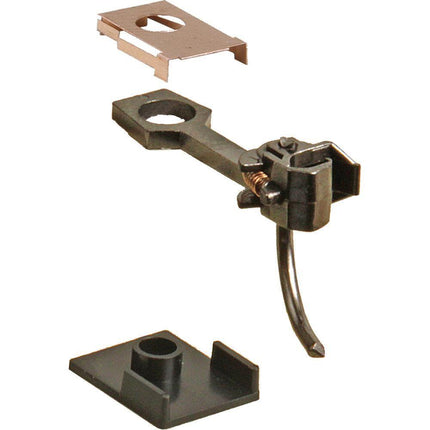

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#21 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Package Includes:
- (2) Pair #21 Plastic Shank Couplers - Long Underset Shank
- (2) Pair #634 Centering Spring NO.5® Style

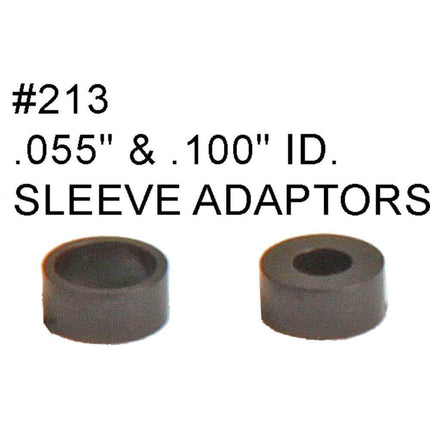

- (2) Pair 055" ID & .100" ID Bushing/Sleeves
- (2) Pair #212 Talgo Truck Adaptors
- (2) Pair #213 Gearboxes
- (2) Pair #232 Gearboxes
- (2) #622 Knuckle Springs

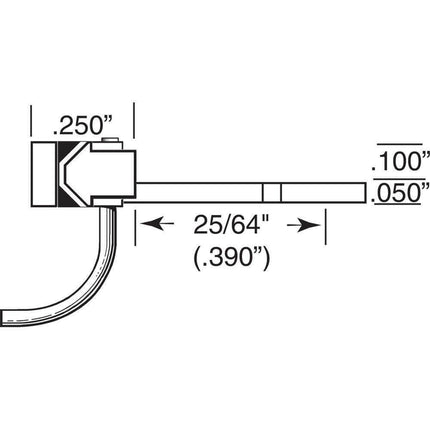

#21 Plastic Coupler Features:
| Material |
- Metal Knuckle, Plastic Coupler Shank |
| Shank Length |
- Long (25/64") (center hole to back of coupler head) |
| Coupler Offset |
- Underset |
| Knuckle Spring |
- #622 |
| Centering System |
- Standard Shank |
| Centering Spring |
- #634 Centering Spring NO.5® Style |
| Head |
- Standard Head |
| Works In Place of |
- #141, long underset "clone" couplers |
| Works With |
- #213, #232, #234, #242, most manufacturer cast-on draft gearboxes |

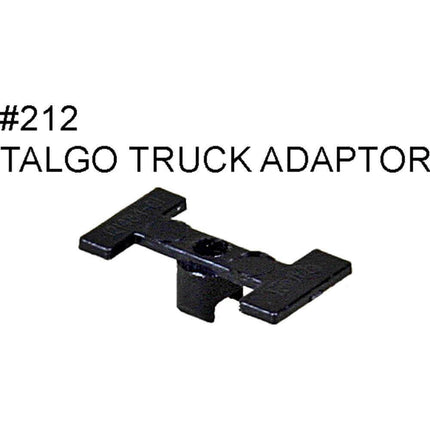

#212 Talgo Truck Adaptors:
| Material |
- Insulated Plastic |
| Works With |
- NO.5®, #58, 20-Series and all Whisker® Couplers |

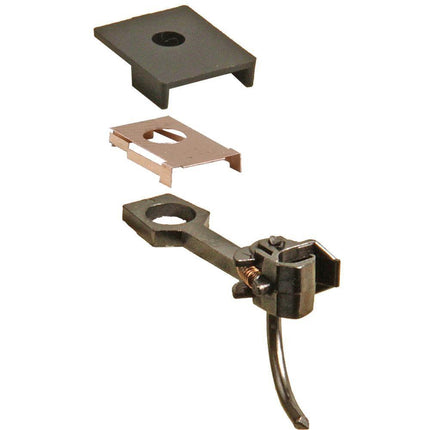

#213 Plastic Draft Gearboxes:
| Material |
- Insulated Plastic |
| Dimensions |
- 25/64"L x 5/16"W x 3/32"H |
| Works With |
- NO.5®, #58, 20-Series and all Whisker® Couplers |

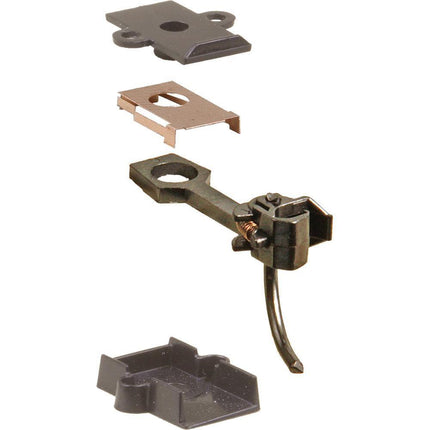

#232 Plastic Draft Gearboxes & Lids Features:
| Material |
- Insulated Plastic |
| Dimensions |
- 29/64"L x 19/64"W x 7/64"H |
| Works With |
- NO.5®, #58, 20-Series and all Whisker® Couplers |

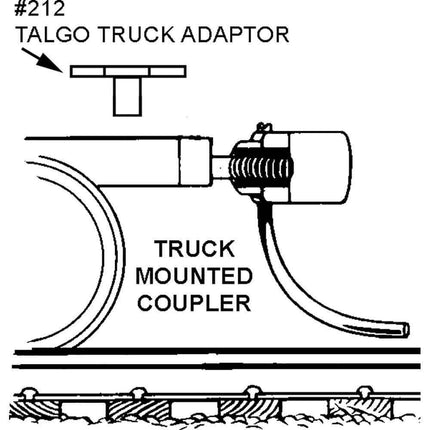

#21 with a #212 Talgo Truck Adaptor. Mounting Specifications:
| Centerline |
- 25/64" |
| Trip Pin Height |
- 1/32" |

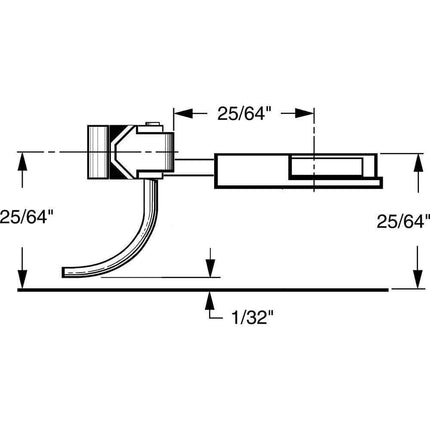

#21 in a #213 monted on bottom. Mounting Specifications:
| Mounting Height |
- 25/64" |
| Centerline |
- 25/64" |
| Trip Pin Height |
- 1/32" |
| Center Hole |
- 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |

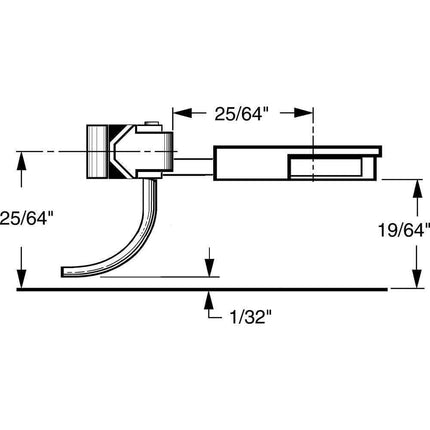

#21 in a #213 monted on top. Mounting Specifications:
| Mounting Height |
- 19/64" |
| Centerline |
- 25/64" |
| Trip Pin Height |
- 1/32" |
| Center Hole |
- 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |

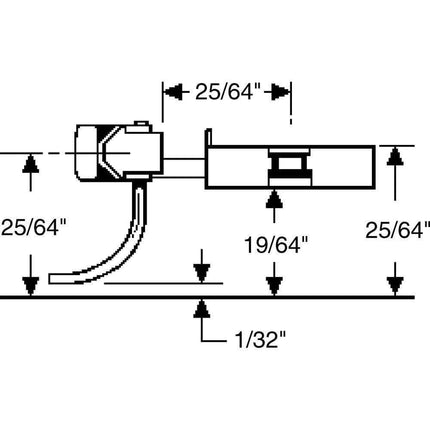

#21 in a #232 Mounting Specifications:
| Mounting Height |
- 25/64" |
| Centerline |
- 25/64" |
| Trip Pin Height |
- 1/32" |
| Center Hole |
- 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
| Side Holes |
- 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) |
Recommended Tools:
-
#206 Insulated Muti-Purpose Coupler Height Gauge
-
#230 Talgo Adaptor Insertion Pic
-
#231 Greas-em Dry Graphite Lubricant
-
#237 Coupler Trip Pin Pliers
-
#240 Double Headed Pin Vise
-
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
-
#246 Tap (2-56) and Drills (#50 and #43)
-
#780 Tap (0-80) and Drills (#55 and #52)
