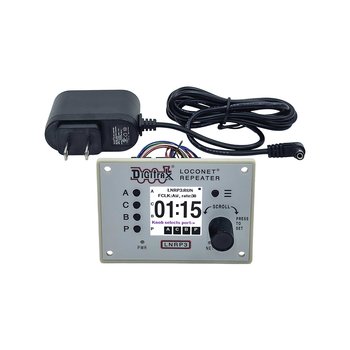

The Digitrax LNRP3 LocoNet Repeater Module extends and protects your DCC layout's LocoNet network. With a fault-tolerant design, the LNRP3 automatically isolates problem segments so the rest of your layout keeps running — no manual intervention needed. A built-in color LCD with soft-key menus makes setup and diagnostics easy, even on complex installations.
Features
| Isolates up to 3 segments of your LocoNet layout |
| Primary P-port bi-directional LocoNet repeater to A/B/C expansion ports |
| Fault-tolerant: A/B/C ports automatically disconnect and reconnect faulted segments, keeping all unfaulted ports active |
| Color LCD with soft-key menus and selection knob for easy setup |
| Extends large LocoNet installations of more than 20 devices |
| Acts as a diagnostic tool when LocoNet network problems occur |
| Boosts and separates Railsync outputs from the master command station |
| Over-current protected Railsync with automatic retry on fault clearance |
Specifications
| Power Input |
15V–18V DC, up to 250mA (side DC power jack) |
| Ports |
1 P-port (primary) + 3 expansion ports (A/B/C) |
| Display |
Color LCD with soft-key menus and selection knob |
| Compatibility |
All Digitrax LocoNet systems |
| Item Number |
LNRP3 |
| Brand |
Digitrax |
FAQ
Do I need a separate power supply?
Yes — each LNRP3 requires its own dedicated 15V–18V DC power supply (not included). Check Digitrax's accessories for compatible options.
How many devices can the LNRP3 support?
The LNRP3 is designed to extend LocoNet installations with more than 20 devices, splitting the network into up to 3 isolated segments.
What happens when a segment has a fault?
The LNRP3 automatically disconnects the faulted A/B/C port while keeping all other ports active. It then automatically attempts to reconnect once the fault is cleared.
Is this compatible with my command station?
The LNRP3 is compatible with all Digitrax LocoNet systems. Browse our full DCC Accessories collection for other compatible items.
