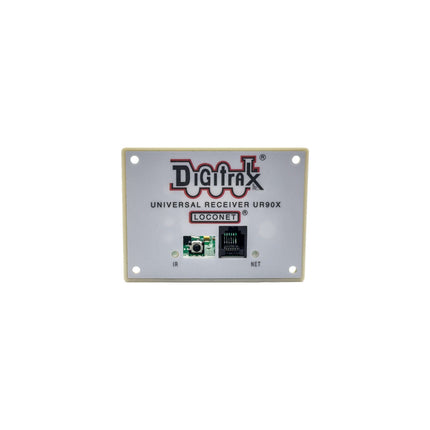

The Digitrax UR90X is a fascia panel with an infrared receiver built in, so compatible Digitrax throttles can be operated untethered - point the throttle at the panel and keep walking. It also works as an ordinary universal panel, with a front throttle jack, two rear LocoNet jacks for daisy-chaining, and indicator LEDs that tell you at a glance whether LocoNet is alive and whether the receiver is seeing your throttle.
More LocoNet gear? Browse our DCC Accessories, DCC Wiring, and the full Digitrax range.
What is the difference between the UR90X and a plain universal panel?
A universal panel such as the UP7 gives you throttle jacks and LocoNet connections. The UR90X adds an infrared receiver, so a compatible IR throttle can be used without plugging in at all.
Which throttles work cordlessly with it?
Digitrax throttles with infrared capability. A tethered throttle plugs into the front jack as normal, so the panel is useful either way.
How many do I need?
Infrared is line-of-sight, so plan one within sight of each operating position rather than spacing them by distance alone. Around a curve or behind a backdrop, the signal will not reach.
Do I need a separate power supply?
Not for normal operation - LocoNet powers the panel. A 12V DC supply is only needed if you want throttle charging to continue while LocoNet is asleep.
