TCS 1718 | 17mm x 12mm Micro WOW Speaker - 8 Ohm 1W DCC Sound - Pre-Wired | Multi Scale
Earn 89 points · Sign in to earn · Rewards
Description

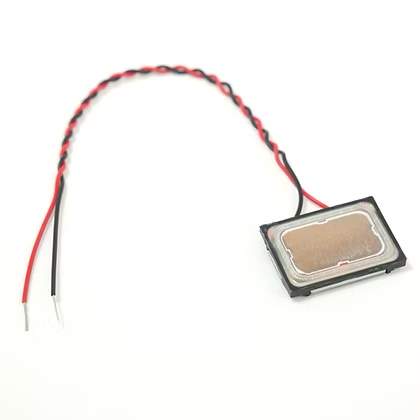

The TCS 1718 is a tough little 17mm x 12mm "Micro WOW" sugar-cube speaker hand-picked by Train Control Systems to fit in tight spaces — originally selected for the Bachmann N-scale Siemens Charger — but at just 2.25mm tall it slips into all sorts of HO, N, and other small-locomotive sound projects. It ships pre-wired with 4 inches (100mm) of twisted-pair 32AWG leads, so you can drop it in without crimping anything.
Looking for more DCC sound parts and decoder accessories? Browse our Track Tools & Accessories collection.
- Compact 17mm x 12mm x 2.25mm footprint — small enough to fit in the boiler, fuel tank, or shell of an N-scale or HO-scale locomotive where most speakers won't go.
- 1.0W nominal / 1.5W peak power handling at 8 Ohms — pairs perfectly with TCS WOWSound and most modern DCC sound decoders.
- 95 dB ± 3 dB SPL with an effective frequency band from 870 Hz to 20 kHz — clear, accurate sound across the whole locomotive audio range.
- Pre-installed 4-inch (100mm) twisted-pair 32AWG leads — ready to wire to your decoder without any soldering of speaker tabs.
- Multi-scale — designed by TCS for the Bachmann N Siemens Charger and works in any locomotive shell with room for a 17 x 12mm speaker.
- Scale: Multi-scale (commonly used in N and HO).
TCS WOWSound decoders use an audio amplifier capable of supplying up to 2 Watts of power to an 8 Ohm load at maximum volume. Set your master volume to roughly 50% or less to prevent over-driving and damaging the decoder or speaker. The same rule applies to any DCC sound decoder rated above the speaker's 1W nominal continuous power.
| Brand | Train Control Systems (TCS) |
| Item Number | 1718 |
| Product Type | Micro WOW Speaker (sugar cube) |
| Dimensions | 17mm x 12mm x 2.25mm (0.67" x 0.47" x 0.09") |
| Impedance | 8 Ohms (±20% at 1.0W, 2000 Hz) |
| Power Rating | 1.0W nominal / 1.5W peak |
| Sound Pressure | 95 dB ± 3 dB (1.0W, 10cm, 2.0 kHz) |
| Frequency Range | 870 Hz - 20,000 Hz |
| Wiring | 4-inch (100mm) pre-installed twisted-pair 32AWG leads |
| Scale | Multi-scale (designed for N, also fits HO and similar) |
| Condition | New |
| UPC | 879508008258 |
Will this fit in my locomotive?
If the shell or fuel tank has at least 17 x 12 x 3mm of clear space, yes. TCS selected this speaker specifically because it fits the Bachmann N-scale Siemens Charger, but it's small enough for many other locomotives. Measure the space first — the wires add a little overall length.
What decoders does it work with?
Any 8-ohm-compatible DCC sound decoder — TCS WOWSound, ESU LokSound, SoundTraxx Tsunami2/Econami, Digitrax SoundFX. The 8 Ohm impedance is the universal standard.
Do I need to solder anything?
Not to the speaker — the twisted-pair leads are already factory-installed. You only need to connect the two wires to your decoder's speaker pads.
Should I add a baffle or enclosure?
For best bass response, yes — even a small sealed cardboard or 3D-printed enclosure makes a noticeable difference. But it'll still sound great without one.
