Kadee
-
Kadee Kadee 452 | Bachmann-Plus F7 Coupler Conversion Kit | HO Scale
#452 HO Scale Bachmann-Plus F7 Coupler Conversion KitConversion brackets for Bachmann Plus F-7 Unit locomotives. Includes a special gear box with a Short 1/4in Overset Plastic Shank Magne-Matic® Coupler. 1pr. Coupler Conversion Info You must first identify the locomotive or rolling stocks manufacturer and type before looking the product up on the HO-Scale Coupler Conversions. Use the HO-Scale Coupler Conversions to lookup our suggested starting coupler* for the particular model. (Our conversions typically requiring the least modification to a model utilizing our newest couplers even though other couplers also work for the model). Once you have lookup our suggested starting coupler you can use our HO-Scale Coupler Conversions (How -To instructions and diagrams) to help you with the couplers installation process. Always check the coupler heights with either our #205 or newer #206 Coupler Height Gauge. Note: If the model came with Factory Knuckle Couplers it will not be listed on the HO-Scale Coupler Conversions under manufacturer there is a generic conversion for Factory Knuckle Couplers on the top of the HO-Scale Coupler Conversions. *Our conversion’s based on only one model from a production run, there may be inconsistencies in a model’s production run that require a different coupler or model modifications to achieve the proper coupler height for coupler function.
£5.33 £5.25
-
Kadee Kadee 590 | Bettendorf - AAR Electrical Pickup Self Centering Caboose Trucks with 33" Smooth Back Wheels - HGC | HO Scale
#590 Bettendorf - AAR Electrical Pickup Self Centering Caboose Trucks with 33" Smooth Back Wheels - (Leaf Spring) - HO Scale"HGC" Two Piece Fully Equalized Trucks Mounts with a #2 or 2-56 screw. "HGC" or High Gravity Compound, weighs nearly the same as Metal Trucks but with more detail & a 2 piece split bolster design for more efficient truck equalization, reduced axle friction for greater rolling performance. One Pair HO-Scale "HGC" Two Piece Fully EqualizedElectrical PickupTrucks Features: Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track. Code 110 (.110) 33" Smooth Back Wheels "HGC" Weighs nearly the same as Metal Trucks Superior Rolling Ability Clip on Brake Pads Accurate Markings Incredible Detail True to Prototype Non-Magnetic Metal Wheels Highly Flexible Fully Equalized Trucks Smooth tracking Free Rolling Contoured Insulated Axles RP-25 Free Rolling Wheels Electrical Pickup Patent number 7,434,518 B2 Package Includes: (2) Each #590 Bettendorf - AAR Electrical Pickup Self Centering Caboose Truck (Leaf Spring) (assembled) (2) Clip on Brake Pads (2) Electrical Pickup w/wire (2) Each Self Centering Bushing (2) Each #2 Screw The term Code 110 and Code 88 relates to the width of the wheels and has no relationship to track code. Code 110 wheels are .110" wide and Code 88 are .088" wide. Code 110 wheels are the common (or "Standard") width wheels and Code 88 are what is called "Semi-Scale" and are used when the modeler wants a more prototypical looking wheel width. Actual HO-Scale prototypical wheel width would be around .067" wide and although they will run OK on the average track they will not go through common turnouts and crossings. Code 88 (.088") is just about the minimum width of wheel that will run on most standard or common track if gauged correctly. It really is a matter of appearances because there's very little operational differences between running Code 110 or Code 88 wheels. Code 88 wheels look really good and are most noticeable on open frame cars like hoppers and tank cars. However, they also look great on boxcars, gondolas, and reefers but not quite as noticeable. As mentioned above track code and wheel code have no relationship meaning Code 110 and Code 88 will run on most any code of track. Track code is simply the measured height of the rail, code 100 is .100" tall, code 83 is .083" tall, code 70 is .070" tall, and so on.
£20.01
-
Kadee Kadee 625 | Knuckle Spring for Scale Head Couplers | HO Scale
HO-Scale Knuckle Springs For use with all Scale Head Couplers.<br> (#58, #78, #119, #150-Series, #178 & #2100) Package Includes: (1) Dozen #625 Knuckle Springs #625 Spring Specifications: Part Number (catalog) - 625 Part Number (in house) - HO-4 Outside Diameter - 0.054 Inside Diameter - 0.046 Wire Diameter - 0.004 Pitch - 0.012 Total Coils - 10.0 Free Length - 0.133 Solid Height - 0.040 Load (Solid Height) - 5.0 Closed Coils - ¾ Material - PB Recommended Tools: #241 Dual Tool
£1.64
-
Kadee Kadee 211 | Styrene Gearbox Shims .010in & .015in | HO Scale
For #5, 9, 20-Series & 40 Series & Whisker® Couplers. Any coupler using the #232 (NO.5®) or #234 Gear Boxes. Shims will need to be trimmed to work with #242 Whisker® Gear boxes. 20 each per package
£1.74 £1.31
-
Kadee Kadee 119 | SE Shelf Whisker® Metal Couplers with Gearboxes - Medium (9/32") Centerset Shank | HO Scale
The #119 coupler will work anywhere a NO.5®, #28, #38, #58, #118, #119, #148 & #158 Coupler will work.The #119 Kadee® Magne-Matic® Coupler features a Metal Coupler, insulated #242 Draft Gear Box and Lid with center screw holes for mounting. Shelfs actually work. The #119 Coupler may be mounted with supplied #242 draft gear box or with Manufacturers cast-on coupler pockets.It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gear box to avoid the possible electrical crossover or shorting that may cause damage. Use the provided insulated draft gear box . HO-Scale Package Includes: (2) Pair SE Shelf Metal Whisker® Magne-Matic® Metal Coupler - Medium Centerset Shank (2) Pair #242 Snap-Together Gearboxes (2) #625 Knuckle Springs #119 Whisker® Metal Coupler Features: Material - Metal Shank Length - Medium (9/32") (center hole to back of coupler head) Coupler Offset - Centerset Knuckle Spring - #625 Centering System - Whisker® Head - SE Metal ShelfHead Works In Place of - NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, medium centerset "clone" couplers Works With - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes #242 Snap-Together Gearbox Features: Material - Insulated Plastic Lid Type - Snap-Together Dimensions - 7/16"L x 5/16"W x 1/8"H Works With - NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers Mounting Specifications: Mounting Height - 29/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick
£4.00
-
Kadee Kadee 118 | SF Shelf Whisker® Metal Couplers - Medium (9/32") Centerset Shank | HO Scale
The #118 coupler will work anywhere a NO.5®, #28, #38, #58, #118, #119 & #148 Coupler will work.The #118 Kadee® Magne-Matic® Coupler features a Metal Coupler, insulated #242 Draft Gear Box and Lid with center screw holes for mounting. Shelfs actually work. The #118 Coupler may be mounted with supplied #242 draft gear box or with Manufacturers cast-on coupler pockets. Two pair per package Manual uncoupling requires the #241 Dual Tool. The "SF" Shelf Coupler can be easily modified to look like the type "F" Shelf Coupler or "H" Passenger Car Coupler. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gear box to avoid the possible electrical crossover or shorting that may cause damage. Use the provided insulated draft gear box.It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gear box to avoid the possible electrical crossover or shorting that may cause damage. HO-Scale Package Includes: (2) Pair SF Metal Shelf Whisker® Magne-Matic® Coupler - Medium Centerset Shank (2) Pair #242 Snap-Together Gearboxes (2) #622 Knuckle Springs #118 Whisker® Metal Coupler Features: Material - Metal Shank Length - Medium (9/32") (center hole to back of coupler head) Coupler Offset - Centerset Knuckle Spring - #622 Centering System - Whisker® Head - SF Metal ShelfHead Works In Place of - NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, medium centerset "clone" couplers Works With - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes #242 Snap-Together Gearbox Features: Material - Insulated Plastic Lid Type - Snap-Together Dimensions - 7/16"L x 5/16"W x 1/8"H Works With - NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers Mounting Specifications: Mounting Height - 29/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick
£3.41
-

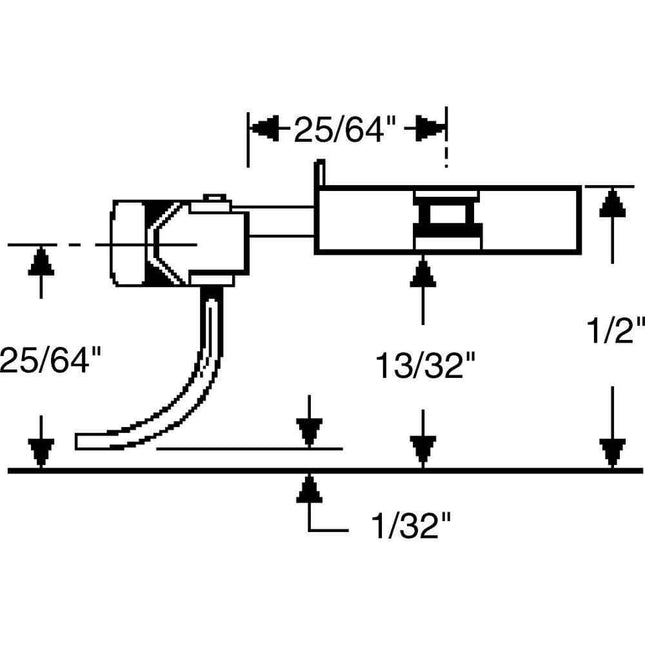

Kadee Kadee 29 | 20-Series Plastic Couplers with Gearboxes - Long (25/64") Overset Shank | HO Scale
This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#29 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. HO-Scale Package Includes: (2) Pair #29 Plastic Shank Couplers - Long Overset Shank (2) Pair #634 Centering Spring NO.5® Style (2) Pair 055" ID & .100" ID Bushing/Sleeves (2) Pair #212 Talgo Truck Adaptors (2) Pair #213 Gearboxes (2) Pair #232 Gearboxes (2) #622 Knuckle Springs #29 Plastic Coupler Features: Material - Metal Knuckle, Plastic Coupler Shank Shank Length - Long (25/64") (center hole to back of coupler head) Coupler Offset - Overset Knuckle Spring - #622 Centering System - Standard Shank Centering Spring - #634 Centering Spring NO.5® Style Head - Standard Head Works In Place of - #149, Long Overset "clone" couplers Works With - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes #212 Talgo Truck Adaptors: Material - Insulated Plastic Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #213 Plastic Draft Gearboxes: Material - Insulated Plastic Dimensions - 25/64"L x 5/16"W x 3/32"H Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #232 Plastic Draft Gearboxes & Lids Features: Material - Insulated Plastic Dimensions - 29/64"L x 19/64"W x 7/64"H Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #29 with a #212 Talgo Truck Adaptor. Mounting Specifications: Centerline - 25/64" Trip Pin Height - 1/32" #29 in a #213 monted on bottom. Mounting Specifications: Mounting Height - 1/2" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) #29 in a #213 monted on top. Mounting Specifications: Mounting Height - 13/32" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) #29 in a #232 Mounting Specifications: Mounting Height - 1/2" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) Side Holes - 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #230 Talgo Adaptor Insertion Pic #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick #246 Tap (2-56) and Drills (#50 and #43) #780 Tap (0-80) and Drills (#55 and #52)
£3.41
-
Kadee Kadee 28 | 20-Series Plastic Couplers with Gearboxes - Medium (9/32") Centerset Shank | HO Scale
This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#28 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets. The #28 Coupler is the plastic equivalent to the NO.5® Metal Coupler. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. HO-Scale Package Includes: (2) Pair #28 Plastic Shank Couplers - Medium Centerset Shank (2) Pair #634 Centering Spring NO.5® Style (2) Pair 055" ID & .100" ID Bushing/Sleeves (2) Pair #212 Talgo Truck Adaptors (2) Pair #213 Gearboxes (2) Pair #232 Gearboxes (2) #622 Knuckle Springs #28 Plastic Coupler Features: Material - Metal Knuckle, Plastic Coupler Shank Shank Length - Medium (19/64") (center hole to back of coupler head) Coupler Offset - Centerset Knuckle Spring - #622 Centering System - Standard Shank Centering Spring - #634 Centering Spring NO.5® Style Head - Standard Head Works In Place of - NO.5®, #58, #118, #119, #148, #158, most medium centerset "clone" couplers Works With - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes #212 Talgo Truck Adaptors: Material - Insulated Plastic Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #213 Plastic Draft Gearboxes: Material - Insulated Plastic Dimensions - 25/64"L x 5/16"W x 3/32"H Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #232 Plastic Draft Gearboxes & Lids Features: Material - Insulated Plastic Dimensions - 29/64"L x 19/64"W x 7/64"H Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #28 with a #212 Talgo Truck Adaptor. Mounting Specifications: Centerline - 25/64" Trip Pin Height - 1/32" #28 in a #213 monted on bottom. Mounting Specifications: Mounting Height - 29/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) #28 in a #213 monted on top. Mounting Specifications: Mounting Height - 23/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) #28 in a #232 Mounting Specifications: Mounting Height - 29/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) Side Holes - 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #230 Talgo Adaptor Insertion Pic #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick #246 Tap (2-56) and Drills (#50 and #43) #780 Tap (0-80) and Drills (#55 and #52)
£3.41 £2.56
-
Kadee Kadee 26 | 20-Series Plastic Couplers with Gearboxes - Long (25/64") Centerset Shank | HO Scale
This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#26 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. HO-Scale Package Includes: (2) Pair #26 Plastic Shank Couplers - Long Centerset Shank (2) Pair #634 Centering Spring NO.5® Style (2) Pair 055" ID & .100" ID Bushing/Sleeves (2) Pair #212 Talgo Truck Adaptors (2) Pair #213 Gearboxes (2) Pair #232 Gearboxes (2) #622 Knuckle Springs #26 Plastic Coupler Features: Material - Metal Knuckle, Plastic Coupler Shank Shank Length - Long (25/64") (center hole to back of coupler head) Coupler Offset - Centerset Knuckle Spring - #622 Centering System - Standard Shank Centering Spring - #634 Centering Spring NO.5® Style Head - Standard Head Works In Place of - #146, long centerset "clone" couplers Works With - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes #212 Talgo Truck Adaptors: Material - Insulated Plastic Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #213 Plastic Draft Gearboxes: Material - Insulated Plastic Dimensions - 25/64"L x 5/16"W x 3/32"H Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #232 Plastic Draft Gearboxes & Lids Features: Material - Insulated Plastic Dimensions - 29/64"L x 19/64"W x 7/64"H Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #26 with a #212 Talgo Truck Adaptor. Mounting Specifications: Centerline - 25/64" Trip Pin Height - 1/32" #26 in a #213 monted on bottom. Mounting Specifications: Mounting Height - 29/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) #26 in a #213 monted on top. Mounting Specifications: Mounting Height - 23/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) #26 in a #232 Mounting Specifications: Mounting Height - 29/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) Side Holes - 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #230 Talgo Adaptor Insertion Pic #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick #246 Tap (2-56) and Drills (#50 and #43) #780 Tap (0-80) and Drills (#55 and #52)
£3.54 £2.66
-
Kadee Kadee 24 | 20-Series Plastic Couplers with Gearboxes - Short (1/4") Underset Shank | HO Scale
This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#24 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. HO-Scale Package Includes: (2) Pair #24 Plastic Shank Couplers - Short Underset Shank (2) Pair #634 Centering Spring NO.5® Style (2) Pair 055" ID & .100" ID Bushing/Sleeves (2) Pair #212 Talgo Truck Adaptors (2) Pair #213 Gearboxes (2) Pair #232 Gearboxes (2) #622 Knuckle Springs #24 Plastic Coupler Features: Material - Metal Knuckle, Plastic Coupler Shank Shank Length - Short (1/4") (center hole to back of coupler head) Coupler Offset - Underset Knuckle Spring - #622 Centering System - Standard Shank Centering Spring - #634 Centering Spring NO.5® Style Head - Standard Head Works In Place of - #144, short underset "clone" couplers Works With - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes #212 Talgo Truck Adaptors: Material - Insulated Plastic Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #213 Plastic Draft Gearboxes: Material - Insulated Plastic Dimensions - 25/64"L x 5/16"W x 3/32"H Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #232 Plastic Draft Gearboxes & Lids Features: Material - Insulated Plastic Dimensions - 29/64"L x 19/64"W x 7/64"H Works With - NO.5®, #58, 20-Series and all Whisker® Couplers #24 with a #212 Talgo Truck Adaptor. Mounting Specifications: Centerline - 25/64" Trip Pin Height - 1/32" #24 in a #213 monted on bottom. Mounting Specifications: Mounting Height - 25/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) #24 in a #213 monted on top. Mounting Specifications: Mounting Height - 19/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) #24 in a #232 Mounting Specifications: Mounting Height - 25/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) Side Holes - 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #230 Talgo Adaptor Insertion Pic #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick #246 Tap (2-56) and Drills (#50 and #43) #780 Tap (0-80) and Drills (#55 and #52)
£3.41
