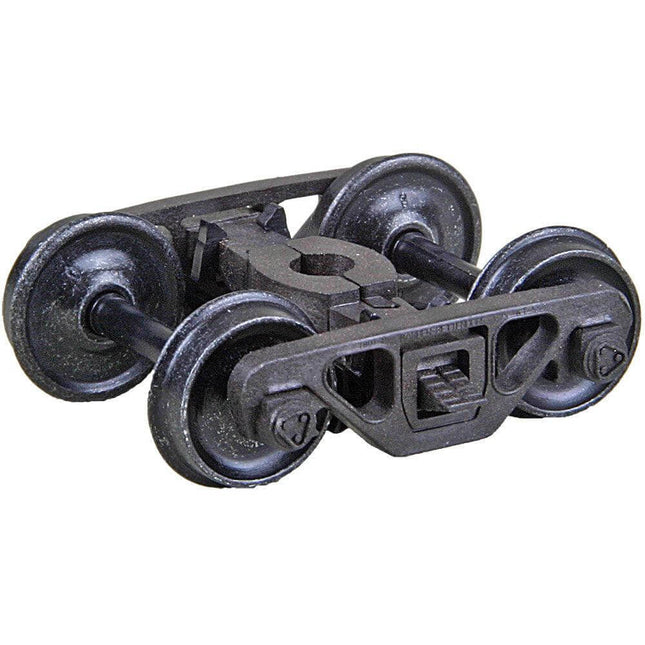

#555 A.S.F.® 100-ton Roller Bearing Self Centering Trucks with 36" Smooth Back Wheels - HO ScaleMetal Fully Sprung Equalized Trucks Mounts with Kadee Self Centering bushing on a flat surface with a #2 or 2-56 screw or without the Kadee Self Centering bushing on a 0.140" or smaller molded on truck post secured with the original screw. The A.S.F.® 100-ton Roller Bearing Truck is from the modern diesel era. It has standard 36 inch wheels and a longer wheel base than the 50 or 70 ton roller bearing trucks. Our model is a faithful reproduction of the American Steel Foundries® Ride Control® truck. This truck is currently in use under a variety of rolling stock in North America. The Bettendorf Double Truss Truck was introduced in the 1930's by U.S. railroads and was allowed to be used in interchange service through 1993. The Kadee® #500, #502 & #550 represent 50- ton trucks for 100,000 pound cars. HO-Scale Metal Fully Sprung Trucks Features:  Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track. Code 110 (.110) #523 36" Smooth Back Wheels #442 Brake Pads - Wide Bolster Accurate Markings Incredible Detail True to Prototype Non-Magnetic Metal Wheels Highly Flexible Sprung Trucks Metal Sideframes & Fully Sprung Self Centering Bolster Smooth tracking Free Rolling Contoured Insulated Plastic Axles RP-25 Free Rolling Wheels #638 HO Scale Truck Springs Patent number 5,768,999 Package Includes: (2) Each #555 A.S.F.® 100-ton Roller Bearing Self Centering Trucks (assembled) (2) #442 Brake Pads - Wide Bolster (2) Each Self Centering Bushing (2) Each #2 Screw The term Code 110 and Code 88 relates to the width of the wheels and has no relationship to track code. Code 110 wheels are .110" wide and Code 88 are .088" wide. Code 110 wheels are the common (or "Standard") width wheels and Code 88 are what is called "Semi-Scale" and are used when the modeler wants a more prototypical looking wheel width. Actual HO-Scale prototypical wheel width would be around .067" wide and although they will run OK on the average track they will not go through common turnouts and crossings. Code 88 (.088") is just about the minimum width of wheel that will run on most standard or common track if gauged correctly. It really is a matter of appearances because there's very little operational differences between running Code 110 or Code 88 wheels. Code 88 wheels look really good and are most noticeable on open frame cars like hoppers and tank cars. However, they also look great on boxcars, gondolas, and reefers but not quite as noticeable. As mentioned above track code and wheel code have no relationship meaning Code 110 and Code 88 will run on most any code of track. Track code is simply the measured height of the rail, code 100 is .100" tall, code 83 is .083" tall, code 70 is .070" tall, and so on.

Read more less

#555 A.S.F.® 100-ton Roller Bearing Self Centering Trucks with 36" Smooth Back Wheels - HO ScaleMetal Fully Sprung Equalized Trucks Mounts with Kadee Self Centering bushing on a flat surface with a #2 or 2-56 screw or without the Kadee Self Centering bushing on a 0.140" or smaller molded on truck post secured with the original screw. The A.S.F.® 100-ton Roller Bearing Truck is from the modern diesel era. It has standard 36 inch wheels and a longer wheel base than the 50 or 70 ton roller bearing trucks. Our model is a faithful reproduction of the American Steel Foundries® Ride Control® truck. This truck is currently in use under a variety of rolling stock in North America. The Bettendorf Double Truss Truck was introduced in the 1930's by U.S. railroads and was allowed to be used in interchange service through 1993. The Kadee® #500, #502 & #550 represent 50- ton trucks for 100,000 pound cars. HO-Scale Metal Fully Sprung Trucks Features:  Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track. Code 110 (.110) #523 36" Smooth Back Wheels #442 Brake Pads - Wide Bolster Accurate Markings Incredible Detail True to Prototype Non-Magnetic Metal Wheels Highly Flexible Sprung Trucks Metal Sideframes & Fully Sprung Self Centering Bolster Smooth tracking Free Rolling Contoured Insulated Plastic Axles RP-25 Free Rolling Wheels #638 HO Scale Truck Springs Patent number 5,768,999 Package Includes: (2) Each #555 A.S.F.® 100-ton Roller Bearing Self Centering Trucks (assembled) (2) #442 Brake Pads - Wide Bolster (2) Each Self Centering Bushing (2) Each #2 Screw The term Code 110 and Code 88 relates to the width of the wheels and has no relationship to track code. Code 110 wheels are .110" wide and Code 88 are .088" wide. Code 110 wheels are the common (or "Standard") width wheels and Code 88 are what is called "Semi-Scale" and are used when the modeler wants a more prototypical looking wheel width. Actual HO-Scale prototypical wheel width would be around .067" wide and although they will run OK on the average track they will not go through common turnouts and crossings. Code 88 (.088") is just about the minimum width of wheel that will run on most standard or common track if gauged correctly. It really is a matter of appearances because there's very little operational differences between running Code 110 or Code 88 wheels. Code 88 wheels look really good and are most noticeable on open frame cars like hoppers and tank cars. However, they also look great on boxcars, gondolas, and reefers but not quite as noticeable. As mentioned above track code and wheel code have no relationship meaning Code 110 and Code 88 will run on most any code of track. Track code is simply the measured height of the rail, code 100 is .100" tall, code 83 is .083" tall, code 70 is .070" tall, and so on.

Read more less

#582 Barber - Bettendorf Self Centering Caboose Trucks with 33" Smooth Back Wheels - (Leaf Spring) - HO Scale"HGC" Two Piece Fully Equalized Trucks The Self-Centering Action trucks self align themselves parallel with the car for easier placement on track. Mounts with a #2 or 2-56 screw. "HGC" or High Gravity Compound, weighs nearly the same as Metal Trucks but with more detail & a 2 piece split bolster design for more efficient truck equalization, reduced axle friction for greater rolling performance. HO-Scale "HGC" Two Piece Fully Equalized Trucks Features: Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track. Code 110 (.110) #520 33" Smooth Back Wheels "HGC" Weighs nearly the same as Metal Trucks Superior Rolling Ability Clip on Brake Pads Accurate Markings Incredible Detail True to Prototype Non-Magnetic Metal Wheels Highly Flexible Fully Equalized Trucks Smooth tracking Free Rolling Contoured Insulated Plastic Axles RP-25 Free Rolling Wheels Patent number 7,434,518 B2 Package Includes: (2) Each #582 Barber - Bettendorf Self Centering Caboose Truck (Leaf Spring) (assembled) (2) Clip on Brake Pads (2) Each Self Centering Bushing (2) Each #2 Screw The term Code 110 and Code 88 relates to the width of the wheels and has no relationship to track code. Code 110 wheels are .110" wide and Code 88 are .088" wide. Code 110 wheels are the common (or "Standard") width wheels and Code 88 are what is called "Semi-Scale" and are used when the modeler wants a more prototypical looking wheel width. Actual HO-Scale prototypical wheel width would be around .067" wide and although they will run OK on the average track they will not go through common turnouts and crossings. Code 88 (.088") is just about the minimum width of wheel that will run on most standard or common track if gauged correctly. It really is a matter of appearances because there's very little operational differences between running Code 110 or Code 88 wheels. Code 88 wheels look really good and are most noticeable on open frame cars like hoppers and tank cars. However, they also look great on boxcars, gondolas, and reefers but not quite as noticeable. As mentioned above track code and wheel code have no relationship meaning Code 110 and Code 88 will run on most any code of track. Track code is simply the measured height of the rail, code 100 is .100" tall, code 83 is .083" tall, code 70 is .070" tall, and so on.

Read more less

#580 Bettendorf - AAR Self Centering Caboose Trucks with 33" Smooth Back Wheels - (Leaf Spring) - HO Scale"HGC" Two Piece Fully Equalized Trucks The Self-Centering Action trucks self align themselves parallel with the car for easier placement on track. Mounts with a #2 or 2-56 screw. "HGC" or High Gravity Compound, weighs nearly the same as Metal Trucks but with more detail & a 2 piece split bolster design for more efficient truck equalization, reduced axle friction for greater rolling performance. HO-Scale "HGC" Two Piece Fully Equalized Trucks Features: Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track. Code 110 (.110) #520 33" Smooth Back Wheels "HGC" Weighs nearly the same as Metal Trucks Superior Rolling Ability Clip on Brake Pads Accurate Markings Incredible Detail True to Prototype Non-Magnetic Metal Wheels Highly Flexible Fully Equalized Trucks Smooth tracking Free Rolling Contoured Insulated Plastic Axles RP-25 Free Rolling Wheels Patent number 7,434,518 B2 Package Includes: (2) Each #580 Bettendorf - AAR Self Centering Caboose Truck (Leaf Spring) (assembled) (2) Clip on Brake Pads (2) Each Self Centering Bushing (2) Each #2 Screw The term Code 110 and Code 88 relates to the width of the wheels and has no relationship to track code. Code 110 wheels are .110" wide and Code 88 are .088" wide. Code 110 wheels are the common (or "Standard") width wheels and Code 88 are what is called "Semi-Scale" and are used when the modeler wants a more prototypical looking wheel width. Actual HO-Scale prototypical wheel width would be around .067" wide and although they will run OK on the average track they will not go through common turnouts and crossings. Code 88 (.088") is just about the minimum width of wheel that will run on most standard or common track if gauged correctly. It really is a matter of appearances because there's very little operational differences between running Code 110 or Code 88 wheels. Code 88 wheels look really good and are most noticeable on open frame cars like hoppers and tank cars. However, they also look great on boxcars, gondolas, and reefers but not quite as noticeable. As mentioned above track code and wheel code have no relationship meaning Code 110 and Code 88 will run on most any code of track. Track code is simply the measured height of the rail, code 100 is .100" tall, code 83 is .083" tall, code 70 is .070" tall, and so on.

Read more less

This industry leading coupler features plastic standard coupler with metal knuckle, and #621 torsion centering spring and comes complete with #233 insulated draft gearbox and lid. The #33 Magne-Matic® Plastic Coupler is designed mostly for body mounting with limited space either above or below the mounting platform, with or without Draft Gear Box Lid and with Draft Gearbox Lid either on top or bottom. Note: The 30-Series Torsion Spring can be mounted either below or above the coupler shank, but must always be mounted between the Coupler Spring Lid and Draft Gearbox. The #143 Whisker® Metal Coupler mounted in a #252 Snap-together Gearbox is equivalent to the #33 Coupler. The Whisker® Coupler mounted in a #252 Snap-together Gear box makes for simple and easy assembly. Other Whisker® Coupler #33 equivalent options include #153 Whisker® "Scale" Metal Coupler when mounted a #252 Snap-together Gearbox. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.   Two pair per package   Made in the U.S.A. HO-Scale Package Includes: (2) Pair #33 Plastic Shank Couplers - Short Centerset Shank (2) Pair #621 Torsion Centering Spring (2) Pair #233 Gearboxes & Lids (2) Pair #210 Washers (2) Pair #256 - 2-56 Screws (2) #622 Knuckle Springs #33 Plastic Coupler Features: Material  -   Metal Knuckle, Plastic Coupler Shank Shank Length  -   Short (1/4") (center hole to back of coupler head) Coupler Offset  -   Centerset Knuckle Spring  -   #622 Centering System  -   Standard Shank Centering Spring  -   #621 Torsion Centering Spring Head  -   Standard Head Works With  -   #233 draft gearboxes #233 Plastic Draft Gearboxes & Lids Features: Material  -   Insulated Plastic Dimensions  -   3/8"L x 5/16"W x 9/64"H Works With  -   NO.5®, #58, 20-Series Couplers #33 in a #233 gearbox on top. Mounting Specifications: Mounting Height  -   1/2" Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary) #33 in a #233 gearbox on bottom. Mounting Specifications: Mounting Height  -   29/64" Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Read more less

Body Mount Extended Swing Gearbox and Medium (9/32") Centerset Shank Whisker® Coupler for passenger or long freight cars allowing negotiating tighter radius curves. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.   One pair per package HO-Scale   Made in the U.S.A. Package Includes: (1) Pair #148 Whisker® Metal Couplers - Medium Centerset Shank (1) Pair #451 Gearboxes and lids (1) Pair Centering Bushings (1) Pair 0-80 x 1/8" Flat Machine Screws (1) Pair 2-56 x 3/8" Flat Machine Screws (1) Pair Bushing Centering Springs (1) Pair Assorted Shims (1) Extra Springs #148 Whisker® Metal Coupler Features: Material  -   Metal Shank Length  -   Medium (9/32") (center hole to back of coupler head) Coupler Offset  -   Centerset Knuckle Spring  -   #622 Centering System  -   Whisker® Head  -   Standard Head

Read more less

Tap 2-56 and Drills #50 and #43 Set

Read more less

HO-Scale Knuckle Springs For all Standard Head Couplers.(Except #58, #78, #119, #150-Series, #178, #711, #714, & #2100) Package Includes: (1) Dozen #622 Knuckle Springs #622 Spring Specifications: Part Number (catalog)  -  622 Part Number (in house)  -  HO-1 Outside Diameter  -  0.052 Inside Diameter  -  0.044 Wire Diameter  -  0.004 Pitch  -  0.014 Total Coils  -  10.0 Free Length  -  0.148 Solid Height  -   0.040 Load (Solid Height)  -  9.0 Closed Coils  -  ¾ Material  -   PB Recommended Tools: #241 Dual Tool

Read more less

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#25 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. HO-Scale Package Includes: (2) Pair #25 Plastic Shank Couplers - Short Overset Shank (2) Pair #634 Centering Spring NO.5® Style (2) Pair 055" ID & .100" ID Bushing/Sleeves (2) Pair #212 Talgo Truck Adaptors (2) Pair #213 Gearboxes (2) Pair #232 Gearboxes (2) #622 Knuckle Springs #25 Plastic Coupler Features: Material  -   Metal Knuckle, Plastic Coupler Shank Shank Length  -   Short (1/4") (center hole to back of coupler head) Coupler Offset  -  Overset Knuckle Spring  -   #622 Centering System  -   Standard Shank Centering Spring  -   #634 Centering Spring NO.5® Style Head  -   Standard Head Works In Place of  -  #145, Short Overset "clone" couplers Works With  -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes #212 Talgo Truck Adaptors: Material  -   Insulated Plastic Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers #213 Plastic Draft Gearboxes: Material  -   Insulated Plastic Dimensions  -   25/64"L x 5/16"W x 3/32"H Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers #232 Plastic Draft Gearboxes & Lids Features: Material  -   Insulated Plastic Dimensions  -   29/64"L x 19/64"W x 7/64"H Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers #25 with a #212 Talgo Truck Adaptor. Mounting Specifications: Centerline  -   25/64" Trip Pin Height  -   1/32" #25 in a #213 monted on bottom. Mounting Specifications: Mounting Height  -  1/2" Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary) #25 in a #213 monted on top. Mounting Specifications: Mounting Height  -   13/32" Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary) #25 in a #232 Mounting Specifications: Mounting Height  -   1/2" Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary) Side Holes  -   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #230 Talgo Adaptor Insertion Pic #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick #246 Tap (2-56) and Drills (#50 and #43) #780 Tap (0-80) and Drills (#55 and #52)

Read more less

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#22 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. HO-Scale Package Includes: (2) Pair #22 Plastic Shank Couplers - Medium Overset Shank (2) Pair #634 Centering Spring NO.5® Style (2) Pair 055" ID & .100" ID Bushing/Sleeves (2) Pair #212 Talgo Truck Adaptors (2) Pair #213 Gearboxes (2) Pair #232 Gearboxes (2) #622 Knuckle Springs #22 Plastic Coupler Features: Material  -   Metal Knuckle, Plastic Coupler Shank Shank Length  -   Medium (9/32") (center hole to back of coupler head) Coupler Offset  -  Overset Knuckle Spring  -   #622 Centering System  -   Standard Shank Centering Spring  -   #634 Centering Spring NO.5® Style Head  -   Standard Head Works In Place of  -  #142, Medium Overset "clone" couplers Works With  -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes #212 Talgo Truck Adaptors: Material  -   Insulated Plastic Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers #213 Plastic Draft Gearboxes: Material  -   Insulated Plastic Dimensions  -   25/64"L x 5/16"W x 3/32"H Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers #232 Plastic Draft Gearboxes & Lids Features: Material  -   Insulated Plastic Dimensions  -   29/64"L x 19/64"W x 7/64"H Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers #22 with a #212 Talgo Truck Adaptor. Mounting Specifications: Centerline  -   25/64" Trip Pin Height  -   1/32" #22 in a #213 monted on bottom. Mounting Specifications: Mounting Height  -  1/2" Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary) #22 in a #213 monted on top. Mounting Specifications: Mounting Height  -   13/32" Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary) #22 in a #232 Mounting Specifications: Mounting Height  -   1/2" Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary) Side Holes  -   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #230 Talgo Adaptor Insertion Pic #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick #246 Tap (2-56) and Drills (#50 and #43) #780 Tap (0-80) and Drills (#55 and #52)

Read more less

#212 HO Scale Talgo Truck Adaptors24 per packageUse the #230 Talgo Insertion Pic to insert #212 Talgo Adaptors into Talgo Truck coupler pockets.Talgo Truck Adaptors work with Kadee NO.5®, #58, 20-series couplers (#21, #22, #23, #24, #28, #26, #27, #28, #29) and all Whisker® couplers.To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a #205 or newer #206 HO coupler height gauge.NOTE: So it is important to check coupler height and make sure it is correct "before" you insert the talgo truck adaptor, because it's almost impossible to remove without breaking something.Once the coupler height is correct press the #230 insertion pick into the top of the #212 adapter. Make sure the pivoting hole of the coupler is over the little pin on the end of the flexible arm in the pocket. The adapter goes down through the top of the pocket and twists downward until it snaps under the two plates on top of the pocket. The adapter becomes the new pivoting post and locks the coupler in place.

Read more less

The next evolution of model train couplers starts and ends with the Kadee® Whisker® series of couplers. When we set out to improve upon the venerable No.5® we knew it had to be just as game-changing as the original. Often referred to as the "Whisker® version of the No.5®", the #148 has dethroned the classic #5 with an even longer-lasting and more reliable design. We took everything you loved about the No.5® and improved upon it. No more fumbling with centering springs. No more multi-piece assemblies. The Whisker® series of couplers is a true drop-in coupler. Use Kadee® Whisker® couplers in your next model and enjoy the most reliable and smooth coupling experience you've ever had. Always made right here in the USA with legendary Made In America quality. The #148 is interchangeable with the No.5®, #28, #58, #118, #119, #158, and most manufacturer's Medium Centerset OEM knuckle couplers. For a #38 equivalent use the #148 in a #252 Gearbox. #148 is also a direct replacement for most Bachmann On30 couplers. Supersedes product #14. Package Includes: (25) Pair #148 Whisker® Metal Couplers - Medium Centerset Shank (10) Spare #622 Knuckle Springs **Gearboxes not included** #148 Whisker® Metal Coupler Features: Material  -   Metal Shank Length  -   Medium (9/32") (center hole to back of coupler head) Coupler Offset  -   Centerset Knuckle Spring  -   #622 Centering System  -   Whisker® Head  -   Standard Head Works In Place of  -   NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, medium centerset "clone" couplers Works With  -   #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes Mounting Specifications: Mounting Height  -   29/64" Centerline  -   25/64" Trip Pin Height  -   1/32" Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick #246 Tap (2-56) and Drills (#50 and #43) It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. For insulated couplers use the #28 coupler. Kadee® Magne-Matic® Couplers and Uncouplers are a complete system for your model railroad layout. We've designed every product to work harmoniously with the Magne-Matic® system so that you can focus on enjoying your hobby instead of troubleshooting issues. Magne-Matic® technology ensures smooth and reliable hands-free coupling and uncoupling anywhere.
