Digitrax SH2AB | Mainline Signaling Kit | HO Scale

The Digitrax SH2AB is a complete mainline signalling kit for HO scale - four single-head signals in the A and B mast configurations used to signal a double-track main, with the mounting board, plugs and hardware to install them. The current-limiting resistors are already on the board, so there is nothing to calculate and nothing to solder on the bench.

Signalling your layout? Browse our DCC Accessories, DCC Wiring, and the full Digitrax range.

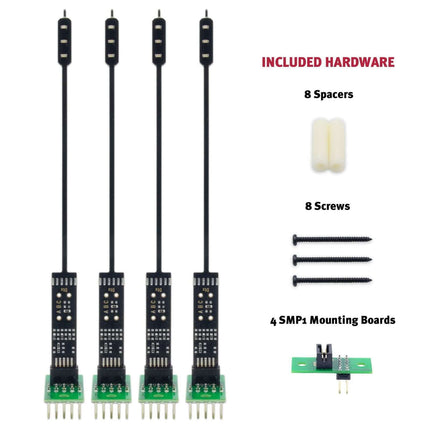

• Everything for one mainline signal plant - signals, mast plugs, spacers and screws in one box.
• Plug and play 10-pin connectors make each signal removable, which matters when you are ballasting or working on scenery nearby.
• Current-setting resistors built into the board - no resistor maths, no risk of cooking an LED.
• A and B mast configurations for straightforward double-track mainline signalling.
• Pads are provided so you can attach any signal head to the mast base if you want to mix in other manufacturers.
• Intended for use with the Digitrax SE8C signal decoder.

What does a mainline kit signal, compared with a turnout kit?
This one covers plain double track - two directions, A and B masts. For a junction or crossover you want a turnout kit such as the SHABC, which includes a dual-head signal for the diverging route.

Do I need anything else to make the signals work?
Yes - a signal decoder to drive the aspects (the SE8C is the intended partner), cabling to reach the masts such as the SDCK kit, and some form of block occupancy detection.

Do I need to add resistors?
No. Current-setting resistors are already on the mounting board, which is one of the main reasons to buy the kit rather than loose signal heads.

Will these work with a non-Digitrax system?
The signal heads themselves are just LEDs on a board and can be driven by other signal systems, but the 10-pin plug arrangement and the resistor board are designed around the Digitrax SE8C.
