#701 HO Scale Coupler Assembly Fixture for #4, 5, 9 & 58 Couplers A handy tool for assisting in the assembly of your Kadee® #4, NO.5® , 9 , & 58 HO Couplers. Clamps coupler in the draft gear box, allowing easy insertion of centering spring and attachment of lid.

Read more less

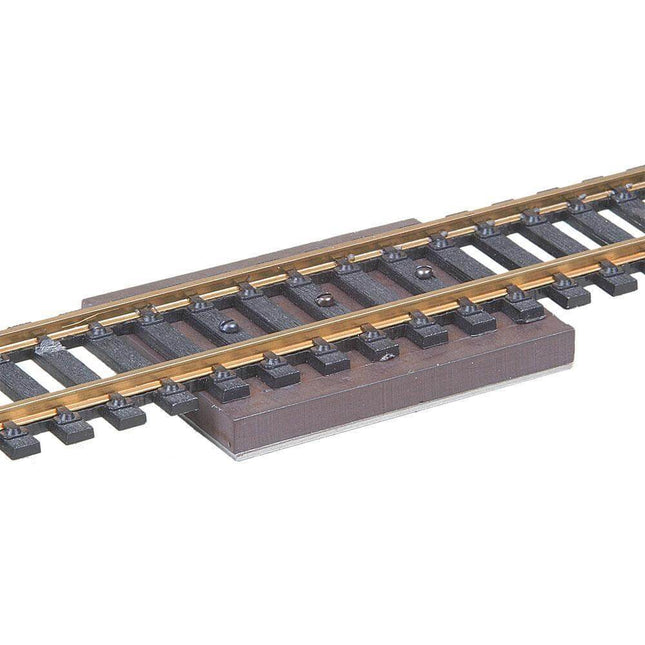

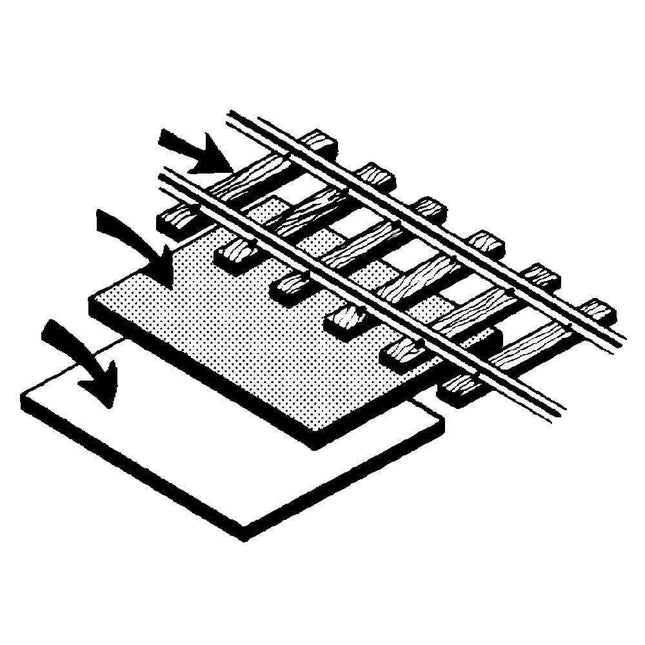

#308 Under-the-Track Hidden Delayed-Action Magnetic® Uncoupler - HO, S, On3, On30, O Scale HO, S, On3, On30, O-Scale Uncoupler Under-the-Track Under-the-Track "hidden" installation. A permanent magnet and steel intensifier plate are included along with instructions. Suitable for a variety of scales from HO to O-Scale. Track not included O-SCALE:Because of the thicker ties and higher rail in O-scale it will be necessary to use 2 or 3 magnets stacked together and one steel intensifier plate on the bottom of the stack. On some track you may need to trim the bottom of the ties to fit the magnet(s) closer to the rails. Package Includes: (1) each #308 Delayed Action Magne-Matic® Uncoupler Magnet (1) each Steel Intensifier Plate #308 Dimensions: MagnetDimensions  -  2"L x 1 1/2"W x 3/16"H Intensifier Plate  -  .045" thick

Read more less

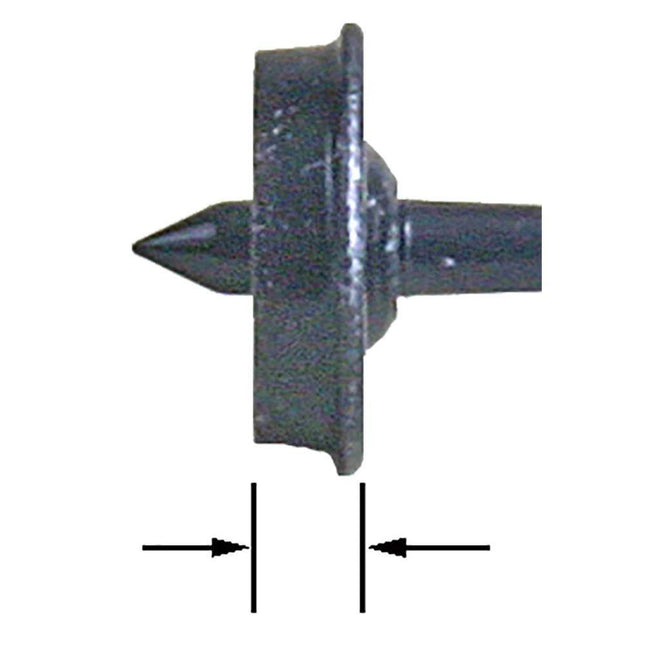

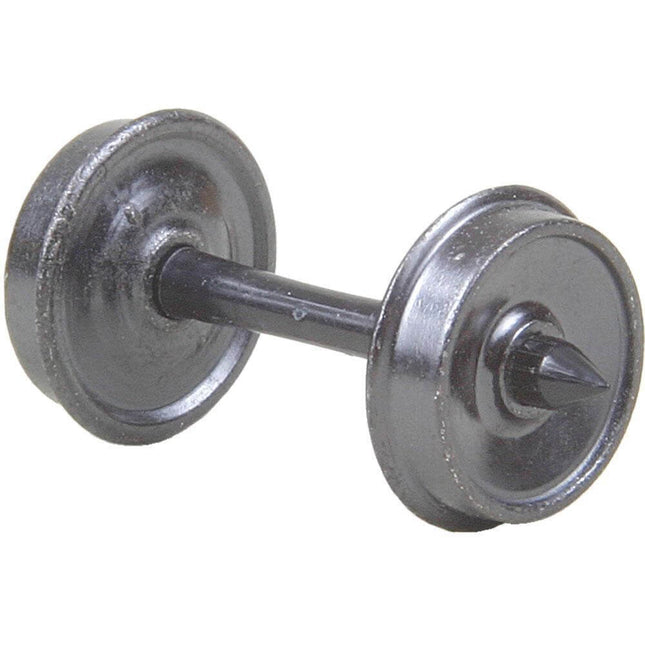

#522 - 36" Diameter Smooth Back Wheelsets (Code 110) - HO Scale Smooth wheelsets are most commonly found on diesel era rolling stock. Kadee® wheel sets are manufactured to the most exacting standards and feature: RP-25 contour, non-magnetic metal wheels and insulated needlepoint axles. Twelve Sets (1 Set = 1 Axle) Axle Tip to Tip: 1.018" Wheelset Features: Code 110 (.110") 36" Smooth Back Wheels Accurate markings Incredible detail true to prototype Non-magnetic Metal Wheels Smooth tracking Free rolling Contoured Insulated Axles RP-25 Free rolling wheels Needlepoint Axles Axle Tip to Tip: 1.018" Freight & Passenger Package Includes: (12) Sets #522 36" Diameter Smooth Back Wheelsets (Code 110)   The term Code 110 and Code 88 relates to the width of the wheels and has no relationship to track code. Code 110 wheels are .110" wide and Code 88 are .088" wide. Code 110 wheels are the common (or "Standard") width wheels and Code 88 are what is called "Semi-Scale" and are used when the modeler wants a more prototypical looking wheel width. Actual HO-Scale prototypical wheel width would be around .067" wide and although they will run OK on the average track they will not go through common turnouts and crossings. Code 88 (.088") is just about the minimum width of wheel that will run on most standard or common track if gauged correctly. It really is a matter of appearances because there's very little operational differences between running Code 110 or Code 88 wheels. Code 88 wheels look really good and are most noticeable on open frame cars like hoppers and tank cars. However, they also look great on boxcars, gondolas, and reefers but not quite as noticeable. As mentioned above track code and wheel code have no relationship meaning Code 110 and Code 88 will run on most any code of track. Track code is simply the measured height of the rail, code 100 is .100" tall, code 83 is .083" tall, code 70 is .070" tall, and so on.

Read more less

#262 HO Scale Whisker® Coupler Narrow Snap-Together Gearboxes & Lids Narrow Low Profile Snap-together Gearbox for Whisker® Couplers.(except #143, #144, #145 Short Standard Head Whisker® Couplers.) 2-56 screws are the most commonly used for center hole.Screw length will very depending on the mounting situation. 10 pair per package

Read more less

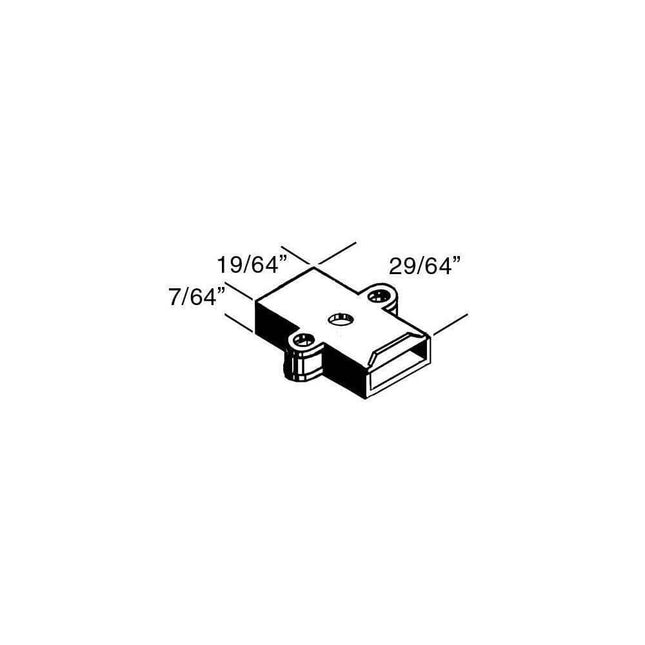

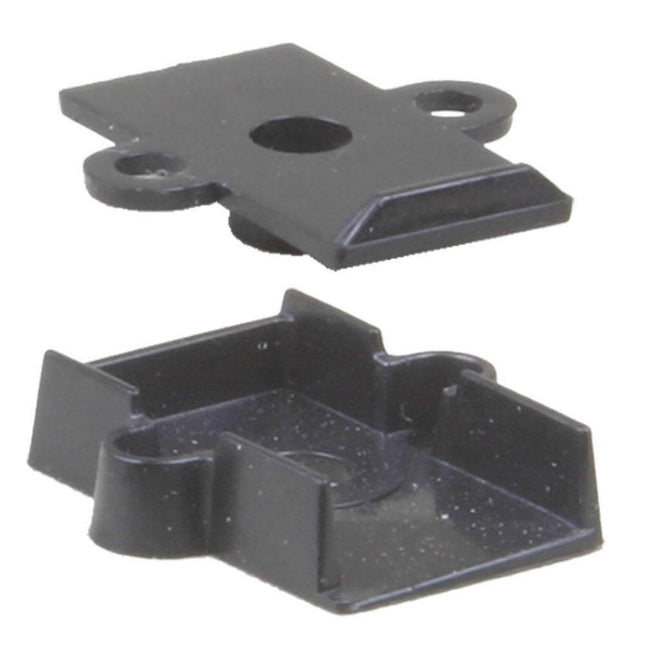

#232 HO Scale Plastic Gearboxes & Lids - #5 Style Plastic Draft Gearboxes & Lids included with NO.5, 58, 20-Series (medium & long shank), Couplers. Also works with medium & long shank Whisker® Couplers.10 pair per package 2-56 screws are the most commonly used for center hole. 0-48 or 0-80 screws are used for side holes. Screw length will very depending on the mounting situation.

Read more less

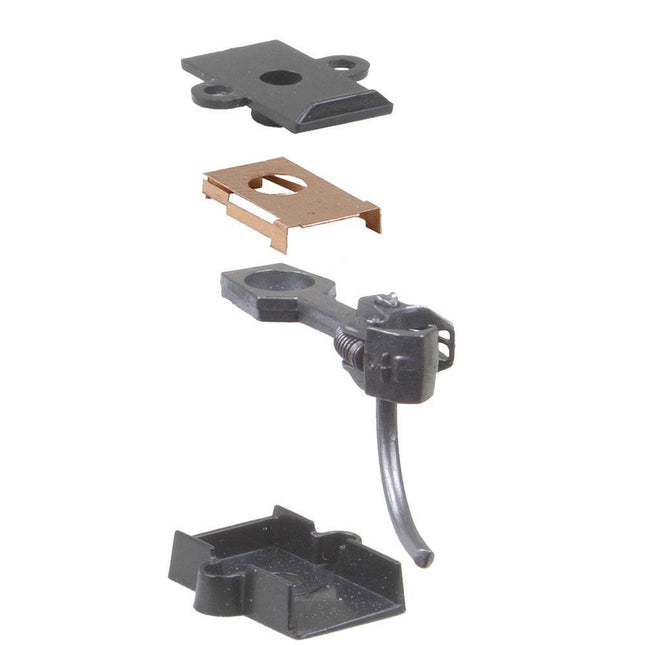

This industry leading coupler features an all metal standard coupler, and #634 standard centering spring and comes complete with an insulated draft gearbox and lid. The #58 Magne-Matic® "Scale" Metal Coupler may be mounted with the included #232 Gearbox or with other manufacturers cast-on coupler pockets. The 158 "Scale" Whisker® Coupler is equivalent to the #58 "Scale" Metal Coupler. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox. HO-Scale Package Includes: (2) Pair #58 "Scale" Metal Couplers - Medium Centerset Shank (2) Pair #634 Centering Spring NO.5® Style (2) Pair #232 Gearboxes (2) #625 Knuckle Springs #58 Metal Coupler Features: Material  -   Metal Shank Length  -   Medium (9/32") (center hole to back of coupler head) Coupler Offset  -   Centerset Knuckle Spring  -   #625 Centering System  -   Standard Shank Centering Spring  -   #634 Centering Spring NO.5® Style Head  -   "Scale" Head Works In Place of  -   NO.5®, #28, #118, #119, #148, #158, most medium centerset "clone" couplers Works With  -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes #232 Plastic Draft Gearboxes & Lids Features: Material  -   Insulated Plastic Dimensions  -   29/64"L x 19/64"W x 7/64"H Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers Mounting Specifications: Mounting Height  -   29/64" Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary) Side Holes  -   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) Recommended Tools: #206 Insulated Muti-Purpose Coupler Height Gauge #231 Greas-em Dry Graphite Lubricant #237 Coupler Trip Pin Pliers #240 Double Headed Pin Vise #241 Dual Tool Manual Uncoupling Tool and Spring Pick #246 Tap (2-56) and Drills (#50 and #43) #780 Tap (0-80) and Drills (#55 and #52)

Read more less

#234 HO Scale Short Shank Coupler Plastic Gearboxes & LidsPlastic Draft Gearboxes & Lids included with 20-Series (#23, 24, 25 short shank), 40-Series (43, 44 & 45 short shank) Couplers. Also works with short shank Whisker® Couplers.10 pair per package2-56 screws are the most commonly used for center hole.0-48 or 0-80 screws are used for side holes.

Read more less

Centering Spring (for #711, 712, 714 & 715 Split Shank Couplers) Precision Engineered Coil Metal Centering Springs for #711, #712 3/4 size HO-Scale and #714, #715 HOn3-Scale Split Shank Couplers. Kadee® Spring Specifications One dozen per package   Made in the U.S.A. HOn3-Scale & HO-Scale Package Includes: (1) Dozen #636 Coil Metal Centering Springs #636 Spring Specifications: Part Number (catalog)  -  636 Part Number (in house)  -  HO-3 Outside Diameter  -  0.052 Inside Diameter  -  0.046 Wire Diameter  -  0.003 Pitch  -  0.008 Total Coils  -  15.0 Free Length  -  0.128 Solid Height  -   0.045 Load (Solid Height)  -  2.0 Closed Coils  -  ¾ Material  -   PB Recommended Tools: #241 Dual Tool

Read more less

The next evolution of model train couplers starts and ends with the Kadee® Whisker® series of couplers. When we set out to improve upon the venerable No.5® we knew it had to be just as game-changing as the original. Often referred to as the "Whisker® version of the No.5®", the #148 has dethroned the classic #5 with an even longer-lasting and more reliable design. We took everything you loved about the No.5® and improved upon it. No more fumbling with centering springs. No more multi-piece assemblies. The Whisker® series of couplers is a true drop-in coupler. Use Kadee® Whisker® couplers in your next model and enjoy the most reliable and smooth coupling experience you've ever had. Always made right here in the USA with legendary Made In America quality. The #115 Whisker® coupler features our superb #148 couplers and special Log Car Gearboxes & Lids. For use with Kadee® Log Cars and other cars or locomotives that require a lower profile draft gearbox. Package Includes: (2) Pair #148 Whisker® Metal Couplers - Medium Centerset Shank (2) Pair Log Car Snap-Together Gearboxes & Lids (2) Spare #622 Knuckle Springs   Kadee® Magne-Matic® Couplers and Uncouplers are a complete system for your model railroad layout. We've designed every product to work harmoniously with the Magne-Matic® system so that you can focus on enjoying your hobby instead of troubleshooting issues. Magne-Matic® technology ensures smooth and reliable hands-free coupling and uncoupling anywhere.

Read more less

#621 HO Scale Torsion Centering Spring for 30-Series Couplers GearboxesOne dozen per package

Read more less

For Mounting with Limited Space.Whisker® Coupler 30-Series Coupler Equivalent Gearbox.Similar to the 30-Series Gear Box. Precision engineered to work with all Kadee® Whisker® Couplers. Those of you that have a challenge assembling our 30 series couplers there is an option to look at. By using our #252 draft gear box, and an appropriate Whisker® Coupler is the equivalent to a 30-Series Coupler and so much easier to assemble. The Whisker® Coupler choice has the same last digit as the 30-Series Coupler you want to duplicate. The last digit in each of our HO coupler series are the same configuration in each series. Couplers ending in 8 like the #28, #38, #58, #148, and #158 all are medium length center set couplers and this applies to all the series. So when you get to the point where 30 series couplers are difficult to assemble use a Whisker® Coupler of the appropriate number and a #252 draft gear box. Also, the lid on the #252 snaps on the box to keep the assembly securely together. Examples:If you need a #31 coupler use a #141 Whisker® Coupler with the #252 Gearbox.If you need a #32 coupler use a #142 Whisker® Coupler with the #252 Gearbox.If you need a #33 coupler use a #143 Whisker® Coupler with the #252 Gearbox.If you need a #34 coupler use a #144 Whisker® Coupler with the #252 Gearbox.If you need a #35 coupler use a #145 Whisker® Coupler with the #252 Gearbox.If you need a #36 coupler use a #146 Whisker® Coupler with the #252 Gearbox.If you need a #37 coupler use a #147 Whisker® Coupler with the #252 Gearbox.If you need a #38 coupler use a #148 Whisker® Coupler with the #252 Gearbox.If you need a #39 coupler use a #149 Whisker® Coupler with the #252 Gearbox. 2-56 screws are the most commonly used for center hole.Screw length will vary depending on the mounting situation. 10 pair per package Package Includes: (10) Pair #252 HO Scale Small Snap-Together Gearboxes & lids #252 Plastic Draft Small Gearboxes & Lids Features: Material  -   Insulated Plastic Dimensions  -   3/8"L x 5/16"W x 9/64"H Works With  -   All Whisker® Couplers Whisker® Coupler in a #252 Gearbox on top. Mounting Specifications: Mounting Height  -  See 30-Series Coupler you are trying to duplicate. Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary) Whisker® Coupler in a #252 Gearbox on bottom. Mounting Specifications: Mounting Height  -  See 30-Series Coupler you are trying to duplicate. Centerline  -   25/64" Trip Pin Height  -   1/32" Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Read more less

#233 HO Scale 30-Series Gearboxes & Lids Plastic 30-Series Draft Gearboxes, Draft Gearbox Lids and Spring Lids10 pair per package Draft Gear Box, Draft Gear Box Lid and Spring Lid for 30-Series Couplers. Note: Uses #621 Torsion Centering Spring 2-56 screws are the most commonly used for center hole. Screw length will vary depending on the mounting situation.
