Kadee 25 | 20-Series Plastic Couplers with Gearboxes - Short (1/4") Overset Shank | HO Scale

Description

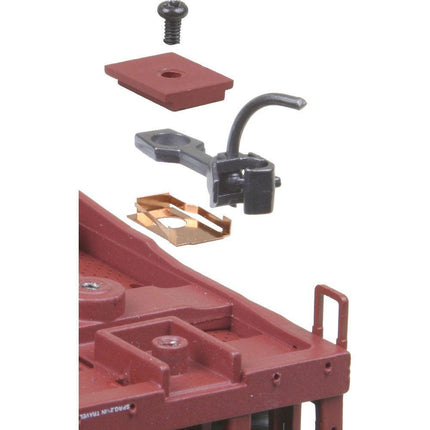

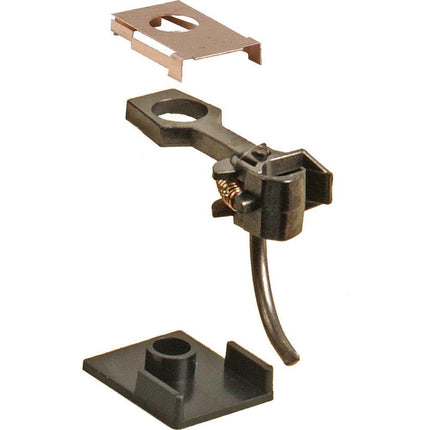

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#25 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

  • HO-Scale

Package Includes:

  • (2) Pair #25 Plastic Shank Couplers - Short Overset Shank
  • (2) Pair #634 Centering Spring NO.5® Style

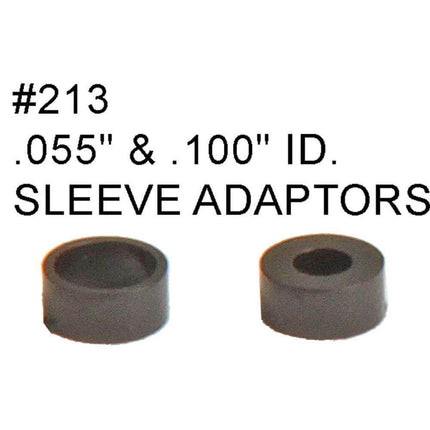

  • (2) Pair 055" ID & .100" ID Bushing/Sleeves
  • (2) Pair #212 Talgo Truck Adaptors
  • (2) Pair #213 Gearboxes
  • (2) Pair #232 Gearboxes
  • (2) #622 Knuckle Springs


#25 Plastic Coupler Features:
Material  -   Metal Knuckle, Plastic Coupler Shank
Shank Length  -   Short (1/4") (center hole to back of coupler head)
Coupler Offset  -  Overset
Knuckle Spring  -   #622
Centering System  -   Standard Shank
Centering Spring  -   #634 Centering Spring NO.5® Style
Head  -   Standard Head
Works In Place of  -  #145, Short Overset "clone" couplers
Works With  -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

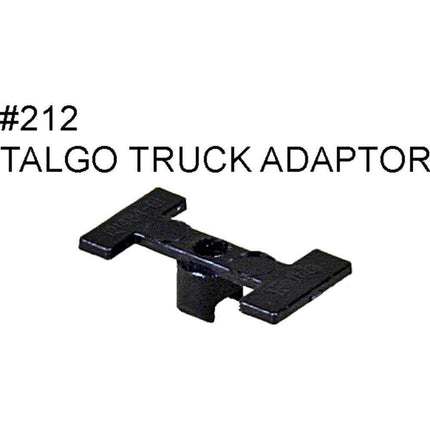

#212 Talgo Truck Adaptors:
Material  -   Insulated Plastic
Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers


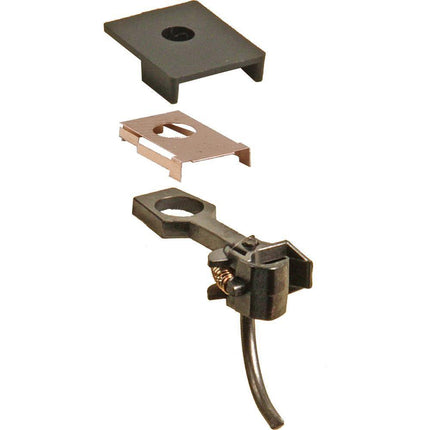

#213 Plastic Draft Gearboxes:
Material  -   Insulated Plastic
Dimensions  -   25/64"L x 5/16"W x 3/32"H
Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers


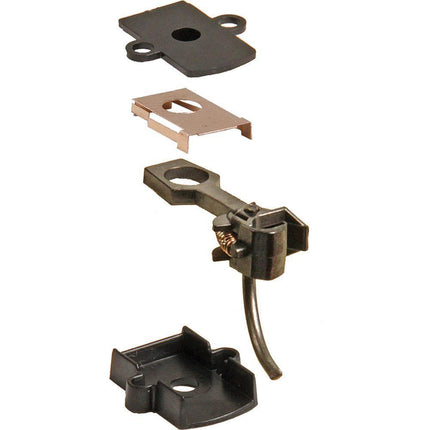

#232 Plastic Draft Gearboxes & Lids Features:
Material  -   Insulated Plastic
Dimensions  -   29/64"L x 19/64"W x 7/64"H
Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers

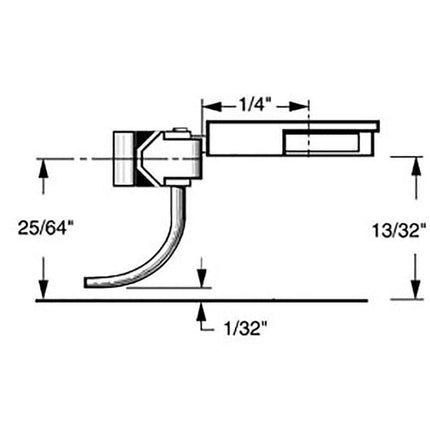

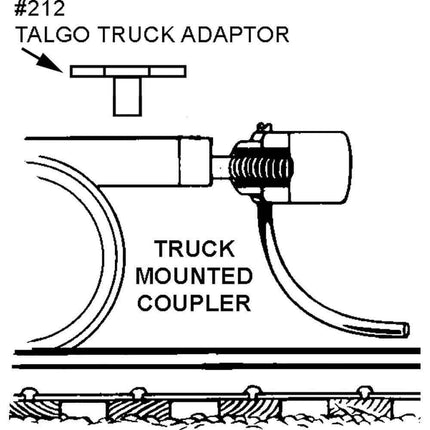

#25 with a #212 Talgo Truck Adaptor. Mounting Specifications:
Centerline  -   25/64"
Trip Pin Height  -   1/32"

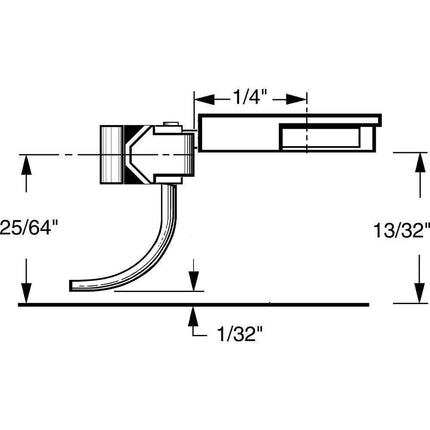

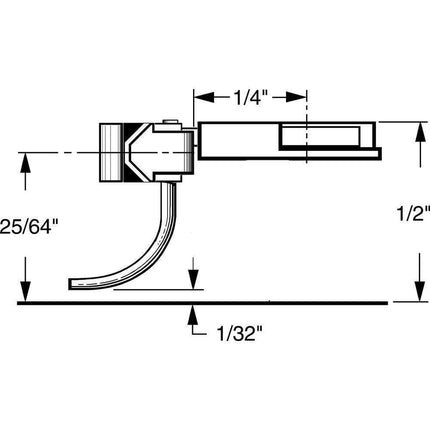

#25 in a #213 monted on bottom. Mounting Specifications:
Mounting Height  -  1/2"
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)


#25 in a #213 monted on top. Mounting Specifications:
Mounting Height  -   13/32"
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

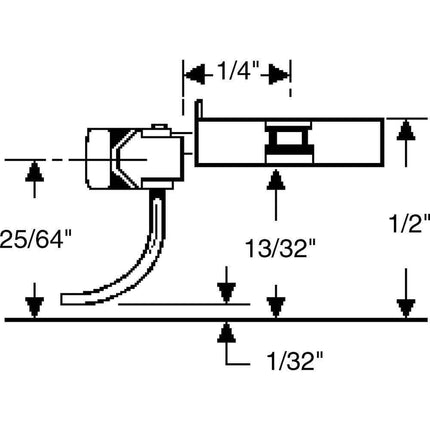

#25 in a #232 Mounting Specifications:
Mounting Height  -   1/2"
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes  -   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)


Recommended Tools:

  • #206 Insulated Muti-Purpose Coupler Height Gauge
  • #230 Talgo Adaptor Insertion Pic
  • #231 Greas-em Dry Graphite Lubricant
  • #237 Coupler Trip Pin Pliers
  • #240 Double Headed Pin Vise
  • #241 Dual Tool Manual Uncoupling Tool and Spring Pick
  • #246 Tap (2-56) and Drills (#50 and #43)
  • #780 Tap (0-80) and Drills (#55 and #52)


Delayed Magnetic Uncoupling
