Universal speaker housing for the TCS 16mm x 9mm speaker (included). This simple, closed design channels both the front and rear audio out the front of the speaker housing. These micro speakers require an enclosure (like this one) or similar to operate effectively. Specs Dimensions: 0.71" x 0.35" x 0.26" or 18mm x 9mm x 6.5mm Includes 1x UNIV-SH5-C Speaker Enclosure1x 16mm x 9mm WOWSpeaker
$19.95 $16.95
This function-only decoder is designed for any scale where extra lighting features and functions are needed. This decoder includes a 6-pin harness for easy installation and wiring. These decoders are commonly used for smoke coils.Note: FL-series decoders do not provide motor control. A separate decoder must be used for motor function. Function Only: This decoder only has function control for lighting, and does not provide sound or motor control. DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC. Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs. Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder. Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects! Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs. Decoder Lock: Feature which prevents accidental/unwanted programming while activated. Airwire™ Compatible: Fully compatible with Airwire™ operation. Dimensions: 0.83" x 0.466" x 0.161" or 21.07mm x 11.84mm x 4.08mm Interface Type: Direct-Plug (6-pin JST) Scale: O Scale, HO Scale, G Scale, N Scale Total Functions: 2 Function Rating: 200 mA 12V Outputs: 2
$23.95 $18.95
Producing sounds with the clarity and volume of a much larger speaker these 30mm (1.18″) speakers are perfect for tight installations that still require BIG sound. Dimensions: 1.18″ diameter x 0.22″ or 30mm diameter x 5.7mm Sound Pressure Level: 92 dB ± 3.0 dB at 0.8 , 1.0 , 1.2 , 1.5 KHz. Effective Frequency Band: 280 Hz. to 20,000 Hz. Power Rating: 0.5W (Typical) 1W (Peak) DC Impedance: 8 Ω ± 15 % at 1.0V 1,000 Hz.
$11.99

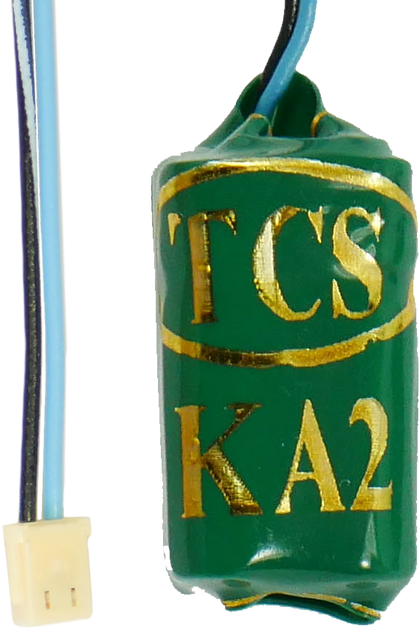

TCS Keep-Alive® (KA) devices are used to supply power to decoders during times of power interruption due to dirty track or problematic track work. Newly-redesigned and coming in at half the size of a KA4, the KA2 will power HO or N scale locomotives with approximately one-third of the capacitance of KA3/KA4 devices (depending on the locomotive and motor). This Keep-Alive® includes a 2-Pin Quick Connector Harness for plugging into decoders with a compatible socket. , such as the T4. Dimensions: 0.35" x 0.35" x 0.61" or 8.9mm x 8.9mm x 15.5mm Scale: HO Scale N Scale Input Rating: 12 to 16V For more information on how to connect Keep-Alive® including with other manufacturer's decoder products, click the tab above labeled "Documents."
$29.99
This 6-pin Mini JST connector is used to wire-up FL2 Fleet Lighter decoders. Attached to the connector are six highly-flexible 30 AWG wires for hard-wiring to your [light] functions, track power, and optional Keep Alive (or other applications) via an included Ground Wire.This product is compatible with: FL2
$2.75
TCS Keep-Alive® (KA) devices are used to supply power to decoders during times of power interruption due to dirty track or problematic track work. Newly-redesigned at half the size of a KA4, the KA2 will power HO or N scale locomotives with approximately one-third of the capacitance of KA3/KA4 devices (depending on the locomotive and motor). This Keep-Alive® includes a blue and a black w/ white stripe wire with which to attach it to a decoder. Dimensions: 0.35" x 0.35" x 0.61" or 8.9mm x 8.9mm x 15.5mm Scale: HO Scale, N Scale Input Rating: 12 to 16V
$25.55

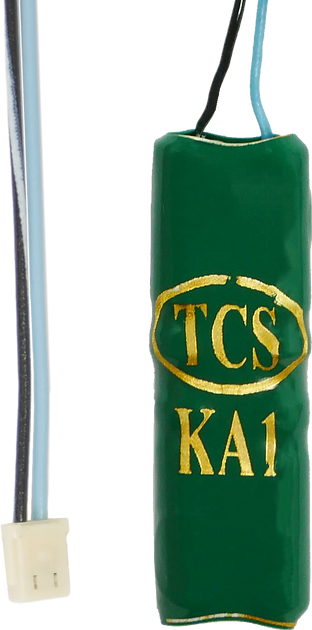

TCS Keep-Alive® (KA) devices are used to supply power to decoders during times of power interruption due to dirty track or problematic track work. Newly-redesigned and coming in at half the size of a KA3, the KA1 will power HO or N scale locomotives with approximately one-third of the capacitance of KA3/KA4 devices (depending on the locomotive and motor). This Keep-Alive® includes a 2-Pin Quick Connector Harness for plugging into decoders with a compatible socket. , such as the T4. Dimensions: 1.063" x 0.35" x 0.244" or 27mm x 8.9mm x 6.2mm Scale: HO Scale N Scale Input Rating: 11 to 16V For more information on how to connect Keep-Alive® including with other manufacturer's decoder products, click the tab above labeled "Documents."
$29.99

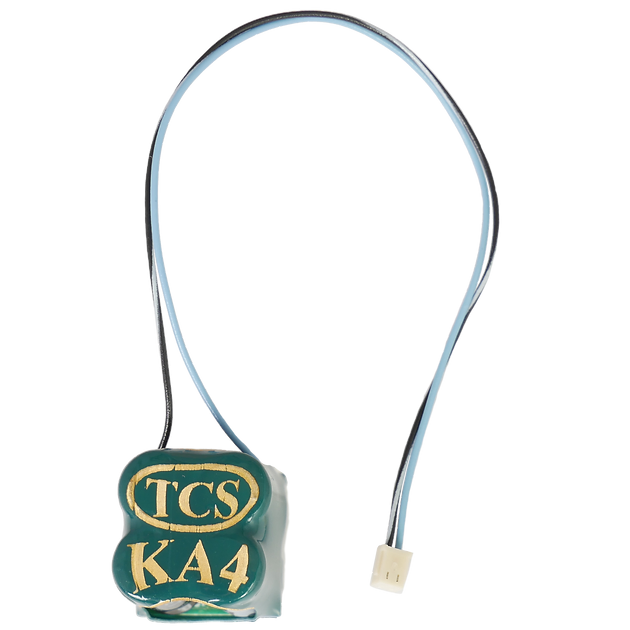

TCS Keep-Alive® (KA) devices are used to supply power to decoders during times of power interruption due to dirty track or problematic track work. This Keep-Alive® includes a 2-Pin Quick Connector Harness for plugging into decoders with a compatible socket. , such as the T4. Dimensions: . 52” x .52” x .45” or 13.22mm x 13.22mm x 11.55mm Scale: HO Scale Input Rating: 12 to 16V For more information on how to connect Keep-Alive® including with other manufacturer's decoder products, click the tab above labeled "Documents."
$29.99
9-Pin JST for use with decoders that use a 9-Pin JST interface. Use this harness to connect any decoder with a 9-Pin JST connector to your locomotive. Examples of decoders with this plug-and-play include the T-Series, KAT-Series, and WOW101 decoders. This harness has 6" (152mm) long wires which can be soldered to your locomotive. This harness allows you to connect the following functions to your decoder: Green Wire - Function Output 1 Red Wire - Right Side Rail Power Orange Wire - Motor (+) Blue Wire - Positive power supply for lighting functions or Keep Alive® White Wire - Function Output 0 Forward Yellow Wire - Function Output 0 Reverse Grey Wire - Motor (-) Black Wire - Left Side Rail Power Violet Wire - Function Output 2
$2.75
The A6X is six function HO-scale "drop-in" style mobile decoder with integrated 1.5V power supply for Atlas, Athearn, Kato, etc. locomotives. Examples include the following:Athearn: F59PHI F3 Atlas: RS-1/RS-3/RS-11 C424 GP7 Kato: GP35 Back EMF Load Compensation:Provides superior slow speed control and high performance under load. Quiet Drive:Super-quiet motor control for "buzz" free motor performance. DC Mode:Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC. RailCom®:This feature allows the decoder to talk to the command station. RailCom supports expansion for new features. Variable Momentum:Allows you to make custom acceleration and deceleration curves. 1.5 Volt Power Supply:This product has an on-board 1.5 Volt power supply for use with 1.5 Volt bulbs without resistors. LED Support:This product does not require external resistors when connecting LED's. Incandescent Bulb Support:This decoder can be used with 12 Volt bulbs. Function Remapping:Buttons 0 through 12 may be used to control the lighting functions of this decoder. Programmable Lighting Effects:Choose from 20 separate user-programmable lighting effects! Dimmable Brightness:Configure multiple different brightness levels for your LED's or incandescent bulbs. Decoder Lock:Feature which prevents accidental/unwanted programming while activated. Airwire™ Compatible:Fully compatible with Airwire™ operation. User-Loadable Speed Tables:Configure custom speed curves and set speed limits. Specs Interface Type: Drop-In Dimensions (L x W x H): 2.85" x 0.682" x 0.155" or 72.39mm x 17.32mm x 3.94mm Scale: HO Scale Continuous/Peak: 1.0/2.0 Amp Total Functions: 6 Function Rating: 100 mA 12V Outputs: 6 LED Outputs: 6 1.5V Bulb Outputs: 6
$44.95 $34.79
WOWKits provide everything needed for a complete sound installation. This WOWKit includes: A WOWSound decoder TCS motherboard with on-board Keep Alive® Speaker with speaker wire Motor mounting clip Each WOWKit has been engineered for a perfect fit in your locomotive. Even if you are new to DCC or DCC installations, you can achieve Easy, Clean, Professional results using WOWKits. WOWKits make sound installation as simple and all-inclusive as possible. The TCS website features step-by-step installation pictures and instructions for each WOWKit. Includes AK-MB1 Motherboard WOW121-Diesel Decoder 32mm Round Speaker Kit Motherboard Motor Mount Accessories Locomotive Compatibility Walthers EMD E8A Walthers Life Like Proto 2000 E7A Walthers Life Like EMD E8A Low Frame Walthers Life Like EMD E8A High Frame
$107.95
This 16mm x 9mm speaker could be classified as a “sugar cube” speaker. This style of speaker is often feature in cell phones and tablets and performs slightly differently from standard speakers. This style of speaker REQUIRES mounting with a baffle to produce much sound at all, but once they are mounted they produce significantly more sound than you might expect. Try them out in your space restricted installations. Dimensions: 0.63″ x 0.35″ x 0.12″ or 16mm x 9mm x 3.1mm Sound Pressure Level: 97 dB Effective Frequency Band: 300 Hz. to 20,000 Hz. Power Rating: 0.7W (Typical) 1W (Peak) DC Impedance: 8 Ω ± 15 % at 1.0V 1,000 Hz.
$13.95 $11.19
