DCC Decoders

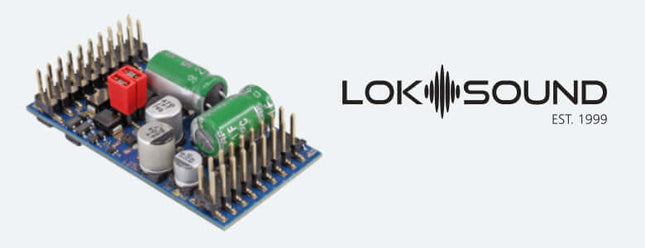

By default, this decoder does not come with a pre-programmed Sound Profile. Nevertheless, we provide complimentary Sound File programming for all ESU decoders. Please be aware that opting for Sound File Programming in your order might result in a shipment delay of 1 to 2 business days. Visit this link to preview ESU Sounds Pinheader Mount with Adapter Version LokSound 5 L is intended for use in all applications where the required power exceeds the limits of LokSound 5.  Ideally these are 0 gauge vehicles and also smaller 1 gauge locomotives. Despite its compact dimensions of only 50.8 mm x 25.4 mm x 14 mm it is equipped with a dual speaker output and integral PowerPack. The LokSound 5 is equipped with a multi-pin connector and is supplied ex works with an adapter board featuring solder pads.  Operating modes Like all products of the LokSound family the LokSound 5 L is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps and 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Control Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound 5 L decoder supports Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound 5 L will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables automatic commuting between two stations. The LokSound 5 L decoder is also suitable for analogue DC and AC layouts. Sound The LokSound 5 L decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A dual class D audio power amplifier with up to 2-times 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions Every LokSound 5 L decoder has 11 amplified function outputs. On top of that there are another 6 logic outputs, which can, if so desired, control two RC servos or SUSI extension modules. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for the reliable function of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. 4 sensor inputs may be employed in order to trigger functions. Motor control Motor control of the LokSound 5 L has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 L decoder supplies ample current for the motor, namely up to 3.0 A. LokSound 5 L DCC The LokSound 5 L DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. More Information Item # 58325 Brand ESU Scale O WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

NEM652 8-Pin Interface Version The LokPilot 5 DCC is the "twin brother" of the LokPilot 5. The two share almost all characteristics, however, the LokPilot 5 DCC is a pure DCC decoder and cannot be used on analog AC systems. This lack of flexibility comes with a cheaper price. LokPilot 5 decoders are offered with all common interfaces.  Modes The LokPilot 5 DCC is a "pure-bred" DCC decoder. 14 to 128 speed steps are as natural as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus® the decoders register automatically with a suitable DCC system like the ESU CabControl. The decoder accepts all DCC programming modes and thanks to RailCom® the CV values ​​can be read on the main track with RailCom equipped DCC systems. For command stations that only program the CVs from 1-255 auxiliary CV registers exist. The LokPilot 5 DCC decoder recognizes the Märklin® braking sections as well as the ZIMO® HLU / ZACKCommands or the Lenz® ABC system. Also braking with DCC brake modules or with DC voltageis possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle trainenables automatic commuting between two train stations. The LokPilot 5 DCC decoder can be used on analog DC trains. The top speedcan be set separately. The decoder switches between the operating modes fully automatically "on-the-fly". Features We know that you want your locomotives to be as realistic as possible. Therefore we have the LokPilot 5DCC packed with function outputs. Depending on the interface version, each LokPilot offers 5 DCCDecoder at least 10 amplified function outputs with 250mA output current each. In the executionswith PluX22 or 21MTC interface there are 4 outputs to control servos orLogic level outputs added. All-important lighting functions are available. The brightness of each outputcan be set separately. The decoder masters automatic pushing and pullingwhen uncoupling for ROCO®, Krois® and Telex® couplings. Motor control The engine control of the LokPilot 5 DCC has been fundamentally improved again. A variably adjustablePWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors.Operation - The typical “hum” is a thing of the past. The load control now has up to10 CVs  which can be adjusted for difficult cases. The unique "Autotune" function enablesthe automatic calibration of the decoder to the motor. The LokPilot 5 DCC decoder delivers up to 1.5A of motor current. Enough juice even for older motors. Operational safety On request, a PowerPack can be fitted to the LokPilot 5 DCC to bridge dirty rail sections. Protection Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible. More Information Item # 59620 Brand ESU Scale HO & O WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

The SoundTraxx 885841 is a TSU-BH1 Tsunami2 digital sound decoder with the GE sound set. Tsunami2 combines a 16-bit sound system, Hyperdrive2 motor control, Hyperlight lighting effects and a full NMRA-compliant DCC decoder on one board, driven by a 32-bit processor with 16 polyphonic sound channels. This version is a drop-in board replacement for Bachmann Sound Value diesels, rated 2A and suited to HO scale Bachmann Sound Value diesels. Dynamic Digital Exhaust reads the load on the motor and notches the engine up and down on its own, so the locomotive sounds like it is working for its train. Features 8 GE prime movers: GE FDL-12, GE FDL-16, GE 7FDL-16, GE Dual FDL-16, GE GEVO G12, GE 44-Ton Center Cab Dual Caterpillar, GE Cummins Switcher, GEVO G12 Tier 4 Over 40 air horns and 13 bells, plus air compressors, couplers and dynamos Dynamic Digital Exhaust (DDE) matches exhaust volume and RPM to the load on the motor automatically Three braking types: independent, train and dynamic braking Hyperdrive2 motor control for smooth, creep-speed switching Over 20 Hyperlight lighting effects across 8 function outputs 16 polyphonic sound channels on a 32-bit processor, with a 7-band equalizer and adjustable reverb CurrentKeeper ready — works with the SoundTraxx 810140 CurrentKeeper More Information Item Number: SoundTraxx 885841 Model: TSU-BH1 Tsunami2 Sound Set: GE Diesel Scale: HO scale Bachmann Sound Value diesels Decoder Size: 97 x 16 x 7.7mm Connection: Drop-in replacement for the Bachmann Sound Value factory board Max. Motor Stall Current: 2A Function Outputs: 8 Audio Amplifier: 2 Watt, 8-Ohm Load DCC Track Voltage: 7V – 22V Sound Channels: 16 polyphonic Processor: 32-bit, 28 functions Shop the full SoundTraxx range, compare every DCC decoder we stock, or see the other GE sound profile decoders. A speaker is not included — browse DCC speakers rated 2 watt or better, and find install parts in DCC wiring. Add a SoundTraxx 810140 CurrentKeeper to keep sound alive over dirty track and turnouts. FAQ Will this fit my locomotive?It measures 97 x 16 x 7.7mm and connects by a drop-in replacement for the bachmann sound value factory board. Check that against the space in your shell before ordering — other Tsunami2 versions use different connectors and sizes. Is a speaker included?No. Pair it with an 8-ohm speaker rated 2 watt or better that fits your shell. Which prime movers do I get?All 8 listed above, selectable via CV 123. You are not locked to one engine sound — pick whichever matches your prototype. Which locomotives is the BH1 for?It is a drop-in replacement for the factory board in Bachmann Sound Value diesels, including the FA-2, FB-2, S-4, E7-A, F-7, SD70ACe, ES44AC, GP30, GP38-2, GP40, GP7, RS-3 and SD40-2. Does it run on DC?Yes. Tsunami2 runs on a standard DC power pack as well as DCC, though sound and lighting options are limited on DC. Full function control needs a DCC system.

Read more less

The SoundTraxx 884010 is a TSU-N18 Tsunami2 digital sound decoder with the Steam-2 sound set. Tsunami2 combines a 16-bit sound system, Hyperdrive2 motor control, Hyperlight lighting effects and a full NMRA-compliant DCC decoder on one board, driven by a 32-bit processor with 16 polyphonic sound channels. This version is the Next18 decoder for N and small HO models, rated 1A and suited to N and small HO models with a Next18 socket. Dynamic Digital Exhaust reads the load on the motor and notches the engine up and down on its own, so the locomotive sounds like it is working for its train. Features 90 selectable whistles — 27 more than the standard Steam set — plus 10 exhaust chuffs, 12 bells, 10 airpumps and 8 dynamos Dynamic Digital Exhaust (DDE) matches exhaust volume and RPM to the load on the motor automatically Independent and train brakes with adjustable rates Hyperdrive2 motor control for smooth, creep-speed switching Over 20 Hyperlight lighting effects across 6 function outputs 16 polyphonic sound channels on a 32-bit processor, with a 7-band equalizer and adjustable reverb CurrentKeeper ready — works with the SoundTraxx 810140 CurrentKeeper More Information Item Number: SoundTraxx 884010 Model: TSU-N18 Tsunami2 Sound Set: Steam-2 Steam Scale: N and small HO models with a Next18 socket Decoder Size: 25 x 9.5 x 4.1mm Connection: Next18 (N18) socket Max. Motor Stall Current: 1A Function Outputs: 6 Audio Amplifier: 1 Watt, 8-Ohm Load DCC Track Voltage: 7V – 22V Sound Channels: 16 polyphonic Processor: 32-bit, 28 functions Shop the full SoundTraxx range, compare every DCC decoder we stock, or see the other Steam-2 sound profile decoders. A speaker is not included — browse DCC speakers rated 1 watt or better, and find install parts in DCC wiring. Add a SoundTraxx 810140 CurrentKeeper to keep sound alive over dirty track and turnouts. FAQ Will this fit my locomotive?It measures 25 x 9.5 x 4.1mm and connects by next18 (n18) socket. Check that against the space in your shell before ordering — other Tsunami2 versions use different connectors and sizes. Is a speaker included?No. Pair it with an 8-ohm speaker rated 1 watt or better that fits your shell. How is Steam-2 different from the standard Steam set?The chuffs, bells, airpumps and dynamos are the same. The difference is the whistle library: Steam-2 offers 90 whistles against 63 on the standard Steam set, with many roadname-specific additions. Does it run on DC?Yes. Tsunami2 runs on a standard DC power pack as well as DCC, though sound and lighting options are limited on DC. Full function control needs a DCC system.

Read more less

The SoundTraxx 886001 is a TSU-1100 Tsunami2 digital sound decoder with the Electric sound set. Tsunami2 combines a 16-bit sound system, Hyperdrive2 motor control, Hyperlight lighting effects and a full NMRA-compliant DCC decoder on one board, driven by a 32-bit processor with 16 polyphonic sound channels. This version is a compact universal-style decoder for tight installs, rated 1A and suited to small models with minimal space. Dynamic Digital Exhaust reads the load on the motor and notches the traction motor up and down on its own, so the locomotive sounds like it is working for its train. Features AC traction motor sound with pantograph up/down (interlocked so the loco will not move with the pantograph down), trolley bell, stop-request bell, pneumatic doors and cab chatter Dynamic Digital Exhaust (DDE) matches traction motor sound to the load on the motor automatically Independent and train brakes with adjustable rates Hyperdrive2 motor control for smooth, creep-speed switching Over 20 Hyperlight lighting effects across 4 function outputs 16 polyphonic sound channels on a 32-bit processor, with a 7-band equalizer and adjustable reverb CurrentKeeper ready — works with the SoundTraxx 810140 CurrentKeeper More Information Item Number: SoundTraxx 886001 Model: TSU-1100 Tsunami2 Sound Set: Electric Electric Scale: small models with minimal space Decoder Size: 27 x 10.5 x 5mm Connection: Universal-style hardwire Max. Motor Stall Current: 1A Function Outputs: 4 Audio Amplifier: 1 Watt, 8-Ohm Load DCC Track Voltage: 7V – 22V Sound Channels: 16 polyphonic Processor: 32-bit, 28 functions Shop the full SoundTraxx range, compare every DCC decoder we stock, or see the other Electric sound profile decoders. A speaker is not included — browse DCC speakers rated 1 watt or better, and find install parts in DCC wiring. Add a SoundTraxx 810140 CurrentKeeper to keep sound alive over dirty track and turnouts. FAQ Will this fit my locomotive?It measures 27 x 10.5 x 5mm and connects by universal-style hardwire. Check that against the space in your shell before ordering — other Tsunami2 versions use different connectors and sizes. Is a speaker included?No. Pair it with an 8-ohm speaker rated 1 watt or better that fits your shell. Does it run on DC?Yes. Tsunami2 runs on a standard DC power pack as well as DCC, though sound and lighting options are limited on DC. Full function control needs a DCC system.

Read more less

The Digitrax SDXN147A0 puts motor control, lighting and SoundFX into one N scale board decoder, and it ships with the oval speaker already matched to it. It is a drop-in for many Atlas N locomotives, which means no harness to route and no hunting for a speaker that fits - the hardest part of an N scale sound install is already solved. Building a DCC fleet? Browse our DCC Decoders, DCC Speakers, and DCC Accessories. Features Sound, motor and lighting in one N scale board - a drop-in fit for many Atlas N locomotives. 8 ohm 9 x 18 x 4mm oval speaker included, sized for N scale shells. No guesswork about what will fit. 1.0 amp continuous, 2.0 amps peak - plenty for an N scale motor. 4 FX3 function outputs at 200mA for headlights and lighting effects alongside the sound functions. SoundFX prime mover, horn and bell, with CV-adjustable volume and sound scheme. More Information Brand Digitrax Item Number SDXN147A0 Product Type DCC Sound and Motor Decoder Scale N Motor Current 1.0 A continuous / 2.0 A peak Function Outputs 4 x FX3, 200 mA Sound Yes - SoundFX Speaker Included Yes - 8 Ohm, 9 x 18 x 4 mm oval Connection Drop-in board for many Atlas N locomotives Series Digitrax Series 7 Condition New FAQ Will it fit my N scale locomotive?It is designed as a drop-in for many Atlas N models. Board decoders are shape-specific, so pull the shell and compare the factory board footprint and light positions before ordering. If it does not match, a wired N decoder is the fallback. Do I need to buy a speaker separately?No. The matched 8 ohm oval speaker is in the box. You will still get noticeably better sound if you fit it against a baffle or a sealed pocket in the shell rather than leaving it loose. Can I change the sound scheme?Yes. SoundFX schemes and volumes are set through CVs, so you can adjust horn, bell and prime mover to suit the prototype you are modelling. Do I need a Digitrax command station?Not for running - it works on any NMRA DCC system. Loading new sound files does require a Digitrax programmer.

Read more less

By default, this decoder does not come with a pre-programmed Sound Profile. Nevertheless, we provide complimentary Sound File programming for all ESU decoders. Please be aware that opting for Sound File Programming in your order might result in a shipment delay of 1 to 2 business days. Visit this link to preview ESU Sounds The LokSound 5 micro DCC Direct has been specially developed for installation in N gauge locomotives of the Atlas and Intermountain brands: it can be inserted directly instead of the analog board installed there as standard. However, the decoder can also be used for similar models from other manufacturers at your own discretion. The LokSound 5 micro DCC Atlas Legacy is also a “direct style decoder developed for early (before 2016) Atlas, Intermountain (and others). The decoder was made for locos produced before sound was added during production. This replaces the popular ESU 73100 Select Direct Micro. Both the LokSound 5 micro DCC Direct/Atlas Legacy with their dimensions of 66.0mm x 8.2mm are pure DCC decoders and come without a loudspeaker. Modes The LokSound 5 micro DCC Direct/Atlas Legacy are both “pure-bred” DCC decoders. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus®, the decoders log in fully automatically to a suitable digital center. It masters all DCC programming modes and thanks to RailCom® the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255. The LokSound 5 micro DCC Direct/Atlas Legacy Decoders detect the Märklin® brake distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake blocks or dc voltage is also possible. In addition, it also stops with a Selectrix® brake diode. An AUTOMATIC ABC commuter train allows automatic commuting between two stations. The LokSound 5 micro DCC Direct/Atlas Legacy decoders can be used on analog DC layouts. The decoders switch “on-the-fly” fully automatically between operating modes. Most of the time, nothing needs to be adjusted.   Sound The LokSound 5 micro DCC Direct/Atlas Legacy decoders can play up to 12 channels simultaneously. Each channel can be resolved with up to 16 bits / 31250 kHz and offers hi-fi quality on your system. There is virtually no difference to the original audible anymore. A Class-D audio output stage with up to 3W output power controls the speakers, which have between 4 ohms and 32 ohms impedance. A 128 Mbit sound memory provides enough capacity. All individual noises can be adjusted individually in the volume. The super-flexible sound engine without a rigid schedule allows the exemplary simulation of all conceivable rail tracks. Functions The LokSound 5 micro DCC Direct/Atlas Legacy decoders have up to 10 directly soldered LEDs. Two of them are intended for front and rear head lighting, two more are connected to the aux3 and aux4 outputs to switch e.g. number boards. A further 6 LEDs on the bottom are intended for ditch lights, but can also be used for other lighting purposes on request. All important lighting functions are available. The brightness of each output can be set separately. Motor Control The motor control of the LokSound 5 micro DCC Direct/Atlas Legacy decoders have a variable PWM clock frequency from 10kHz to 50kHz, which ensures super-quiet operation, especially for bell anchor motors – the hitherto typical “hum” is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique “Autotune” function allows the decoder to be automatically measured against the motor. The LokSound 5 micro DCC Direct/Atlas Legacy decoders deliver up to 0.9A motor power. Protection Of course, the outputs are protected against overload. We want you to enjoy your decoder for as long as possible. More Information Item # 58751 Brand ESU Scale N WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

By default, this decoder does not come with a pre-programmed Sound Profile. Nevertheless, we provide complimentary Sound File programming for all ESU decoders. Please be aware that opting for Sound File Programming in your order might result in a shipment delay of 1 to 2 business days. Visit this link to preview ESU Sounds 4A for G Scale, Pinheader Interface Version The LokSound 5 XL decoder is quite a big piece of equipment. It has to be, because it is intended for use in large scale model railways, e.g. garden railways and 1 gauge models. Its integral PowerPack matching the increased motor power assures reliable operation even on dirty tracks. The LokSound 5 XL measures 51 mm x 40 mm and is available in two different types: Besides the type with robust screw type terminals for installation in older models without an interface socket, there is a version with multi-pin connectors. This version fits into all locomotives where an older type LokSound XL decoder has been installed previously. Operating modes Like all products of the LokSound family the LokSound 5 XL is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. The LGB® chain control is capable of handling functions and their respective buttons with older LGB® control systems. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps and 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Central Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound 5 XL decoder supports Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound 5 XL will come to a halt when a Selectrix® braking diode is connected to the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 XL decoder is also suitable for analogue DC and AC train sets. Sound The LokSound 5 XL decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A dual class D audio power amplifier with up to 2 x 6W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The sound volume can be controlled by means of two separate potentiometers. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions Every LokSound 5 XL decoder has 12 amplified function outputs. On top of that there are another 7 logic outputs, which can, if so desired, control four RC servos or SUSI extension modules. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. 3 sensor inputs may be employed in order to trigger functions. Motor control Motor control of the LokSound 5 XL has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 XL decoder supplies ample current for the motor, namely up to 5.0 A (4.0 A continuous).  Thus the decoder can also handle G gauge locomotives by PIKO® as well as locomotives with two Bühler® or Mabuchi® motors. More Information Item # 58515 Brand ESU Scale G WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

By default, this decoder does not come with a pre-programmed Sound Profile. Nevertheless, we provide complimentary Sound File programming for all ESU decoders. Please be aware that opting for Sound File Programming in your order might result in a shipment delay of 1 to 2 business days. Visit this link to preview ESU Sounds 1.5A, 21MTC MKL Interface, 11x15mm Speaker and Enclosure Version The LokSound 5 is the most important member of the LokSound family. Due to the combination of the digital decoder and the sound module on one circuit board we achieve the smallest possible dimensions of 30 mm x 15.5 mm. Therefore it fits into almost any H0 or 0 gauge locomotive. LokSound 5 decoders are available with all popular interface types and are supplied with a sugar cube speaker (11 mm x 15 mm) and a sound enclosure. The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Operating modes Like all products of the LokSound family the LokSound 5 is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Central Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound 5 decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 decoder is also suitable for analogue DC and AC (!) layouts. Sound The LokSound 5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions We are quite aware that you want your locomotives to be as realistic as possible. Therefore we have packed many function outputs into it.  Subject to the type of interface every LokSound 5 has at least 10 amplified outputs. The decoders with PluX22 or 21MTC interface have an additional 4 outputs for controlling servos or as logic outputs. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. Motor control Motor control of the LokSound 5 has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 decoder supplies up to 1.5A motor current, which is quite sufficient even for older motor types. LokSound 5 DCC The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. More Information Item # 58449  Brand ESU Scale HO & O WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

The SoundTraxx 884011 is a TSU-1100 Tsunami2 digital sound decoder with the Steam sound set. Tsunami2 combines a 16-bit sound system, Hyperdrive2 motor control, Hyperlight lighting effects and a full NMRA-compliant DCC decoder on one board, driven by a 32-bit processor with 16 polyphonic sound channels. This version is a compact universal-style decoder for tight installs, rated 1A and suited to small models with minimal space. Dynamic Digital Exhaust reads the load on the motor and notches the engine up and down on its own, so the locomotive sounds like it is working for its train. Features 63 selectable whistles, 10 exhaust chuffs, 12 bells, 10 airpumps and 8 dynamos Dynamic Digital Exhaust (DDE) matches exhaust volume and RPM to the load on the motor automatically Independent and train brakes with adjustable rates Hyperdrive2 motor control for smooth, creep-speed switching Over 20 Hyperlight lighting effects across 4 function outputs 16 polyphonic sound channels on a 32-bit processor, with a 7-band equalizer and adjustable reverb CurrentKeeper ready — works with the SoundTraxx 810140 CurrentKeeper More Information Item Number: SoundTraxx 884011 Model: TSU-1100 Tsunami2 Sound Set: Steam Steam Scale: small models with minimal space Decoder Size: 27 x 10.5 x 5mm Connection: Universal-style hardwire Max. Motor Stall Current: 1A Function Outputs: 4 Audio Amplifier: 1 Watt, 8-Ohm Load DCC Track Voltage: 7V – 22V Sound Channels: 16 polyphonic Processor: 32-bit, 28 functions Shop the full SoundTraxx range, compare every DCC decoder we stock, or see the other Steam sound profile decoders. A speaker is not included — browse DCC speakers rated 1 watt or better, and find install parts in DCC wiring. Add a SoundTraxx 810140 CurrentKeeper to keep sound alive over dirty track and turnouts. FAQ Will this fit my locomotive?It measures 27 x 10.5 x 5mm and connects by universal-style hardwire. Check that against the space in your shell before ordering — other Tsunami2 versions use different connectors and sizes. Is a speaker included?No. Pair it with an 8-ohm speaker rated 1 watt or better that fits your shell. Does it run on DC?Yes. Tsunami2 runs on a standard DC power pack as well as DCC, though sound and lighting options are limited on DC. Full function control needs a DCC system.

Read more less

The SoundTraxx 851001 is the MC1Z102P6 DCC mobile decoder — a motor and lighting decoder without sound, for Z and N scale locomotives. It is rated 1 amp and connects by 6-pin nem651 plug. As an MC1 series decoder it operates on DCC only — it needs a command station and will not run on a plain DC power pack. Motor control is SoundTraxx Hyperdrive. Features DCC operation — requires a DCC command station 14 Hyperlight lighting effects across 2 function outputs — Mars Light, Pyle National Gyralite, single and dual strobes, Western-Cullen D312 rotary beacon, Prime Stratolite, Type I and II ditch lights with grade-crossing logic, dimmable headlight, Dyno-Light and FRED Rule 17 or directional lighting control, grade-crossing timers, adjustable flash rate and LED brightness correction Hyperdrive motor control for smooth low-speed running NMRA DCC compliant, made in Durango, Colorado More Information Item Number: SoundTraxx 851001 Model: MC1Z102P6 Type: Mobile decoder — motor and lighting, no sound Scale: Z and N scale Decoder Size: 13 x 9 x 3mm Connection: 6-pin NEM651 plug Max. Motor Stall Current: 1A Function Outputs: 2 (100mA each) Operating Modes: DCC only Max. Track Voltage: 22V Motor Control: Hyperdrive Shop the full SoundTraxx range, compare every DCC decoder we stock, or find install parts in DCC wiring. Want engine sound as well? Look at the sound decoders instead — this one is motor and lights only. FAQ Does this make engine sound?No. Mobile decoders drive the motor and lights only. For sound, choose a Tsunami2, Blunami or Econami sound decoder. Will it run on my DC power pack?No. This is an MC1 series decoder and is DCC only — it needs a command station. If you need DC too, choose an MC2 series decoder such as the 852002 or 852003. What does the model number mean?MC1Z102P6 breaks down as: MC1 series (DCC only), Z for Z and N scale, 1 amp, 02 function outputs, and the connector type. Will it fit my locomotive?It measures 13 x 9 x 3mm and connects by 6-pin nem651 plug. Check that against your locomotive before ordering — the other MC decoders use different connectors and sizes.

Read more less

The SoundTraxx 885621 is a BLU-1100 Blunami digital sound decoder with the EMD-2 sound set. Blunami is a Tsunami2 with a Bluetooth radio added, so it runs three ways: as a normal DCC decoder on any NMRA-compliant system, on plain DC, or in wireless mode straight from your phone or tablet. Wireless mode needs no command station and no programming track — an old DC power pack and the free Blunami app are enough, and CVs can be read and changed over Bluetooth while the locomotive is running. The app is free for iOS and Android. This version is the most compact decoder in the Blunami line — small enough for N scale, suited to N, HO and small S scale. Features 8 EMD-2 prime movers: EMD 567 12-cylinder (no transition), EMD 567C 16-cylinder non-turbo, EMD 645E 12-cylinder non-turbo, EMD 645E 12-cylinder turbo, EMD 645F 16-cylinder turbo, EMD 645E 20-cylinder turbo, EMD 710G 12-cylinder, EMD 710G 16-cylinder Over 40 air horns and 13 bells, plus air compressors, couplers and dynamos Bluetooth control from the free Blunami app (iOS and Android) — over 300 settings without editing a single CV by hand Dynamic Digital Exhaust (DDE) automatically matches exhaust volume and RPM to the load on the motor, and the app calibrates it for you Three braking types: independent, train and dynamic braking Hyperdrive2 motor control for smooth, creep-speed switching Over 20 Hyperlight lighting effects across 4 function outputs 16 polyphonic sound channels on a 32-bit processor, with a 7-band equalizer and adjustable reverb CurrentKeeper ready — works with the SoundTraxx 810140 CurrentKeeper More Information Item Number: SoundTraxx 885621 Model: BLU-1100 Blunami Sound Set: EMD-2 Diesel Scale: N, HO and small S scale Decoder Size: 31 x 10.5 x 5mm Connection: Hardwire (single wires) Max. Motor Stall Current: 1A Function Outputs: 4 Audio Amplifier: 1 Watt, 8-Ohm Load DCC Track Voltage: 7V – 22V Sound Channels: 16 polyphonic Processor: 32-bit, 28 functions Control Modes: DC, DCC and Bluetooth wireless Shop the full SoundTraxx range, compare every DCC decoder we stock, or see the other EMD-2 sound profile decoders. A speaker is not included — browse DCC speakers rated 1 watt or better, and find install parts in DCC wiring. Add a SoundTraxx 810140 CurrentKeeper to keep sound alive over dirty track and turnouts. FAQ Do I need a DCC system to use this?No. That is the point of Blunami. It runs on a plain DC power pack with no command station at all — you control it from the free Blunami app over Bluetooth. It is also a fully NMRA-compliant DCC decoder if you already run DCC. Does the app work on Android?Yes. The free Blunami app is published for both iOS and Android. (Some older listings and dealer pages still say iOS only — that is out of date.) Is a speaker included?No. Pair it with an 8-ohm speaker rated 1 watt or better that fits your shell. Which prime movers do I get?All 8 listed above, selectable in the app or via CV 123. You are not locked to one engine sound — pick whichever matches your prototype. EMD-2 or plain EMD — which do I want?This is the EMD-2 set: a second collection of less-common EMD prime movers, called out by cylinder count. The plain EMD set covers the more common 567/645/710 variants. Match the list above to your prototype. Will it fit my locomotive?This one measures 31 x 10.5 x 5mm and connects by hardwire (single wires). Check the space in your shell against that footprint before ordering — other Blunami versions use different connectors and sizes.

Read more less
