DCC Wiring

Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze. We offer 11 colors to match the NMRA and SoundTraxx standards. SoundTraxx 810142 - Black SoundTraxx 810143 - Orange SoundTraxx 810144 - Purple SoundTraxx 810145 - Gray SoundTraxx 810146 - White SoundTraxx 810147 - Green/Yellow Stripe (Current Selection) SoundTraxx 810148 - Blue SoundTraxx 810149 - Red SoundTraxx 810150 - Brown SoundTraxx 810151 - Yellow SoundTraxx 810152 - Green More Information Browse all DCC speakers and DCC wiring, shop the full SoundTraxx range, or pick a decoder from our DCC decoders.

Read more less

The SoundTraxx 810123 is the NMRA 8-pin Connector (set of 4). This set of four 8-pin connectors is designed to facilitate wiring in locomotives equipped with a DCC-ready socket. More Information Browse all DCC speakers and DCC wiring, shop the full SoundTraxx range, or pick a decoder from our DCC decoders.

Read more less

The SoundTraxx 810132 is the Locomotive-to-Tender Wiring Kit (DBX-9000). The SoundTraxx Locomotive-to-Tender Wiring Kit (DBX-9000) is a quick-disconnect wiring harness assembly for separating the locomotive from the tender. More Information Browse all DCC speakers and DCC wiring, shop the full SoundTraxx range, or pick a decoder from our DCC decoders.

Read more less

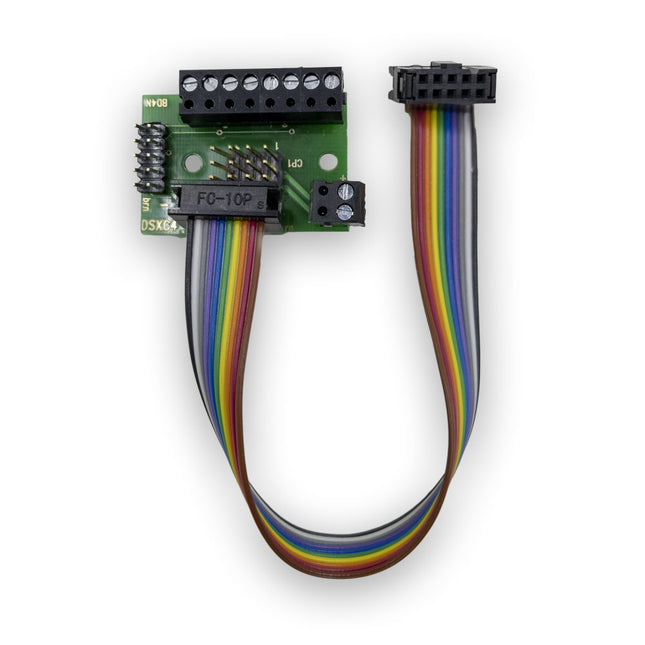

The Digitrax DSXC4 Input Interconnect Board is designed to simplify plug-and-play connectivity for the Digitrax DS74 Quad Switch Stationary Decoder. It provides a reliable way to connect DS74 inputs with fascia controls or BD4N detectors, improving layout wiring and accessory control setup. Input interconnect board for DS74 stationary decoder Plug-and-play connection with included ribbon cable Connects up to four DSXC1 fascia controls Direct ribbon cable header for BD4N detector compatibility 8-pin screw terminal plug for optional wire access to all input lines Compact and easy-to-install design More Information Brand Digitrax Type Input Interconnect Board Scale Multi Scale Model DSXC4 MSRP $16.00 Item # DSXC4 Made In USA Ships Same or next business day Manual Download DSXC4 Instruction Sheet (PDF) Pair it with the Digitrax DS74 Quad Switch Stationary Decoder for seamless accessory control on your layout. Frequently Asked Questions Q: Does this board come with a ribbon cable?A: Yes, it includes the ribbon cable for DS74 input connection. Q: Can I use it without the fascia controls?A: Yes, it supports optional 8-pin screw terminals for custom wiring. Q: Is this compatible with other Digitrax products?A: It works with DS74, DSXC1 fascia controls, and BD4N detectors. Q: Do I need special tools to install it?A: No, it’s plug-and-play for easy setup. Q: Is this part covered by Digitrax warranty?A: Yes, all Digitrax electronics include manufacturer warranty coverage.

Read more less

3-7/16" 8.8cm Wire Leads, Includes Heat-Shrink Tubin Wire harness, 18-pin Next18 socket to open wires, 88mm, with heat shrink tube. WARNING: This product can expose you to a chemical, which is known to the State of California to cause Cancer and Reproductive Harm - For more information go to www.P65Warnings.ca.gov

Read more less

The Digitrax DHWHP harness is expertly designed to connect your 9-pin locomotive to a DCC medium plug, allowing for seamless and efficient communication. With a generous 3-inch length, this harness provides flexibility and easy installation. Upgrade your locomotive's performance with this high-quality harness. More Information Item # DHWHP  Brand Digitrax  MSRP $8.00 TCA Grading C-10 Mint - Brand New Availability In-Stock/Restockable Manuals Instruction Sheet, Decoder Manual V1, Decoder Manual V2, Specification Sheet

Read more less

Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze. We offer 11 colors to match the NMRA and SoundTraxx standards. SoundTraxx 810142 - Black (Current Selection) SoundTraxx 810143 - Orange SoundTraxx 810144 - Purple SoundTraxx 810145 - Gray SoundTraxx 810146 - White SoundTraxx 810147 - Green/Yellow Stripe SoundTraxx 810148 - Blue SoundTraxx 810149 - Red SoundTraxx 810150 - Brown SoundTraxx 810151 - Yellow SoundTraxx 810152 - Green More Information Browse all DCC speakers and DCC wiring, shop the full SoundTraxx range, or pick a decoder from our DCC decoders.

Read more less

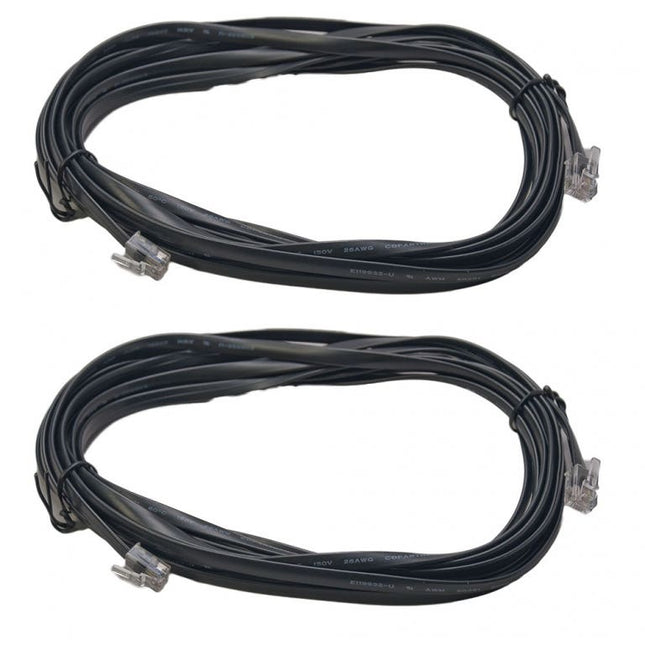

The Digitrax LNC162 is a 2-pack of 16-foot (4.9m) pre-made, pre-tested LocoNet cables — the standard interconnect for Digitrax DCC command stations, boosters, throttles, and accessories. Each cable uses a 6-wire RJ12 plug, the same telco-style connector used throughout the LocoNet network, so they're ready to plug in and use straight out of the package. Looking for more DCC accessories? Browse our Track & DCC Accessories collection. Features Pack of 2 pre-made, pre-tested 16-foot (4.9m) LocoNet cables — ready to use out of the box. 6-wire RJ12 telco-style male plugs on each end, compatible with all Digitrax LocoNet devices. Works with all scales — LocoNet is a scale-agnostic digital command control network. Cable length can be customized using the Digitrax LNCMK LocoNet Cable Maker Kit (sold separately). Compatible with all Digitrax command stations, boosters, panels, throttles, and LocoNet accessories. More Information Brand Digitrax Item Number LNC162 Scale All Scales Cable Length 16 ft (4.9m) Connector Type 6-Wire RJ12 Male Plug Quantity 2 cables per pack Product Type DCC Accessory / LocoNet Cable Condition New UPC 644018154048 FAQ What is LocoNet used for?LocoNet is Digitrax's proprietary communications bus that connects your command station, boosters, throttles, and accessories. These cables carry the LocoNet signal between all your devices. Will these cables work with my non-Digitrax DCC system?These cables are designed specifically for Digitrax LocoNet. Other DCC systems may use different protocols or connector types, so check your system's compatibility before purchasing. Can I make shorter or longer cables?Yes — Digitrax sells the LNCMK LocoNet Cable Maker Kit, which lets you cut and crimp your own LocoNet cables to any length you need. Do these cables work with HO, N, and O scale layouts?Absolutely. LocoNet is a digital signal network, not a physical track component, so it works with any scale layout running Digitrax DCC.

Read more less

Buying ready-made LocoNet cables in fixed lengths means every run is either too short or leaves a loop of slack under the benchwork. The Digitrax LNCMK is the alternative: fifty feet of LocoNet cable, a crimper, twenty RJ12 plugs and an LT1 tester, so you make every cable the exact length that run needs and check it works before you staple it up. More LocoNet gear? Browse our DCC Wiring, DCC Accessories, and the full Digitrax range. What's Included Item Qty LocoNet cable 50 ft Crimper tool 1 RJ12 6-conductor plugs 20 LT1 LocoNet tester 1 Features 50 ft of LocoNet cable - enough for a substantial layout, cut to whatever lengths you actually need. Crimper tool included, so there is no separate tool to buy and no improvising with pliers. 20 RJ12 6-conductor plugs - ten cables' worth of ends, with spares for the ones you get wrong while learning. LT1 tester included to confirm each cable is good before it disappears under the layout. A bad LocoNet cable is one of the most frustrating faults to chase after the fact. Works for LocoNet in any scale - the cable and connectors are the same throughout a Digitrax system. More Information Brand Digitrax Item Number LNCMK Product Type LocoNet Cable Maker Kit Scale All scales Cable 50 ft, 6-conductor flat Plugs 20 x RJ12 6-pin Tools Crimper and LT1 tester included Makes Custom-length LocoNet cables Condition New FAQ Is it cheaper than buying made-up cables?Over a layout of any size, yes - and the bigger win is fit. Every run comes out the right length instead of leaving coils of slack to cable-tie out of the way. How hard is it to crimp LocoNet cable?Straightforward once you have done two or three. LocoNet uses 6-conductor flat cable with the connectors reversed end to end; the instructions cover the orientation, and the LT1 tester tells you immediately if you got it wrong. What does the LT1 tester do?It confirms a finished LocoNet cable is wired correctly, and it also tests decoders. Having it in the kit means you can check each cable on the bench rather than discovering the fault after installation. How many cables will 50 feet make?That depends entirely on your runs, but there are 20 plugs in the kit - ten cables' worth of ends - which is the practical limit before you need more connectors.

Read more less
